Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to plan buying?
Carlton, a country style home plan, exudes charm. Its captivating ranch styling with accent trim, shake-textured siding, and tapered columns with stone base and raised stone caps, invites a second look. Its stunning covered porch is a perfect place to sit outside, drink some coffee, and take in the morning air regardless of the weather. The porch can also be used for parties and outdoor events.

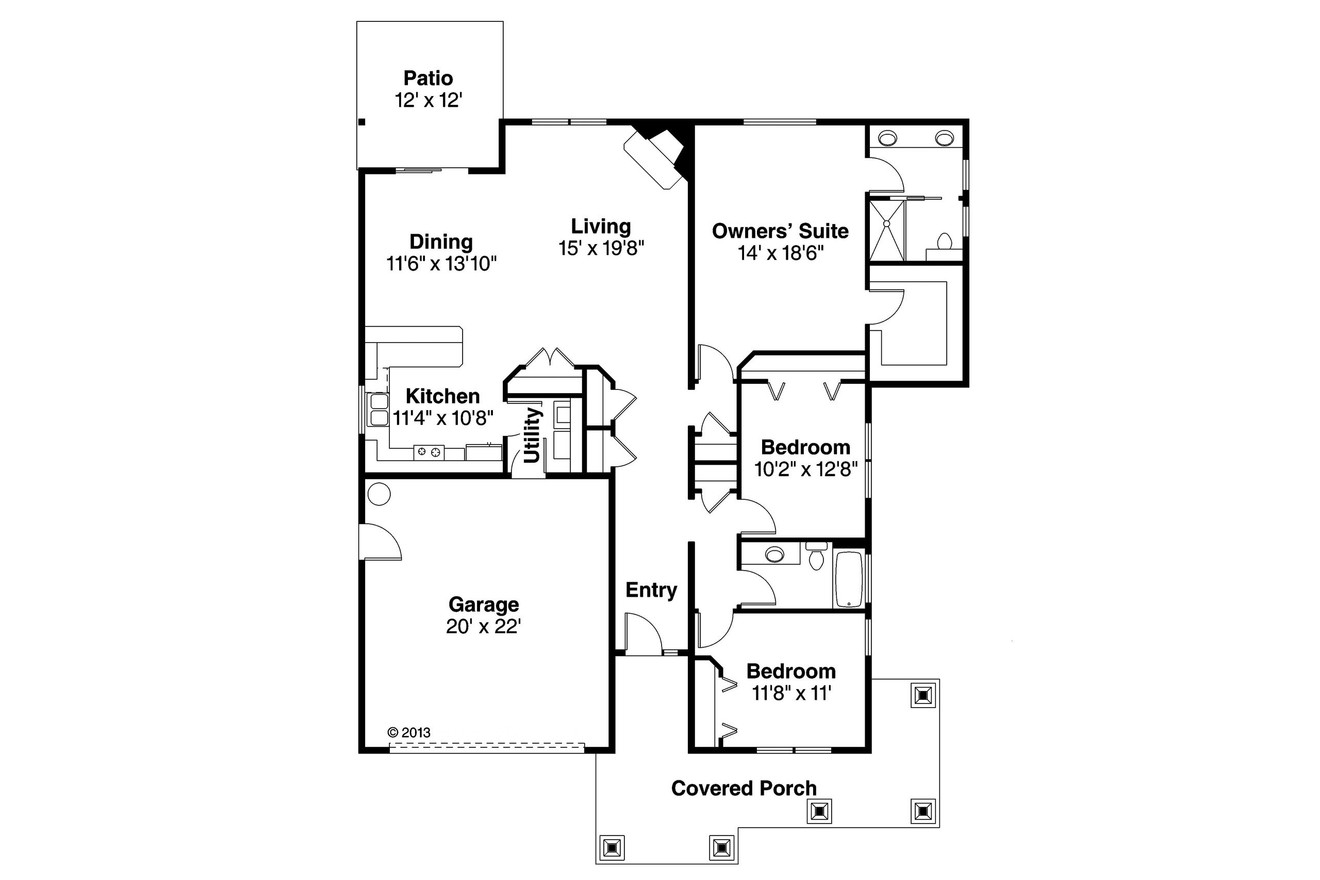

As you enter the elegant entry, you will find a coat closet and shelved storage at the end of the hall. Continuing through, you will stand before the bright, airy great room. The living room, dining room, and kitchen are all connected, giving Carlton’s otherwise rustic interior a modern twist. The fluidity and openness of the living space make it ideal for social gatherings. The room’s lack of barriers offers a sense of closeness and intimacy without feeling overwhelmed or cramped.
The living room is complete with a gas fireplace, allowing the space to be even more welcoming and warm. Due to this, the living room is an excellent space for entertainment or a cozy night in.
Carlton’s kitchen has many charming amenities, including built-in appliances, abundant counter space, and a raised eating bar. To the right of the kitchen is a deep pantry and utility room with a washer and dryer. The pass-through utility room can also be used as a mudroom.
Through the utility is a spacious garage that can fit two cars and be used as storage space. There is a pull-down attic access in this room.
The right side of the craftsman style house contains the owners’ suite, two bedrooms, and one bathroom. The luxurious owners’ suite houses an enviable, shelved walk-in closet and private bathroom, with dual sinks and a shower. The two other bedrooms are comfortable and quaint, sharing a bathroom with a tub and shower. Shelves for linens are just outside and down the hall.
