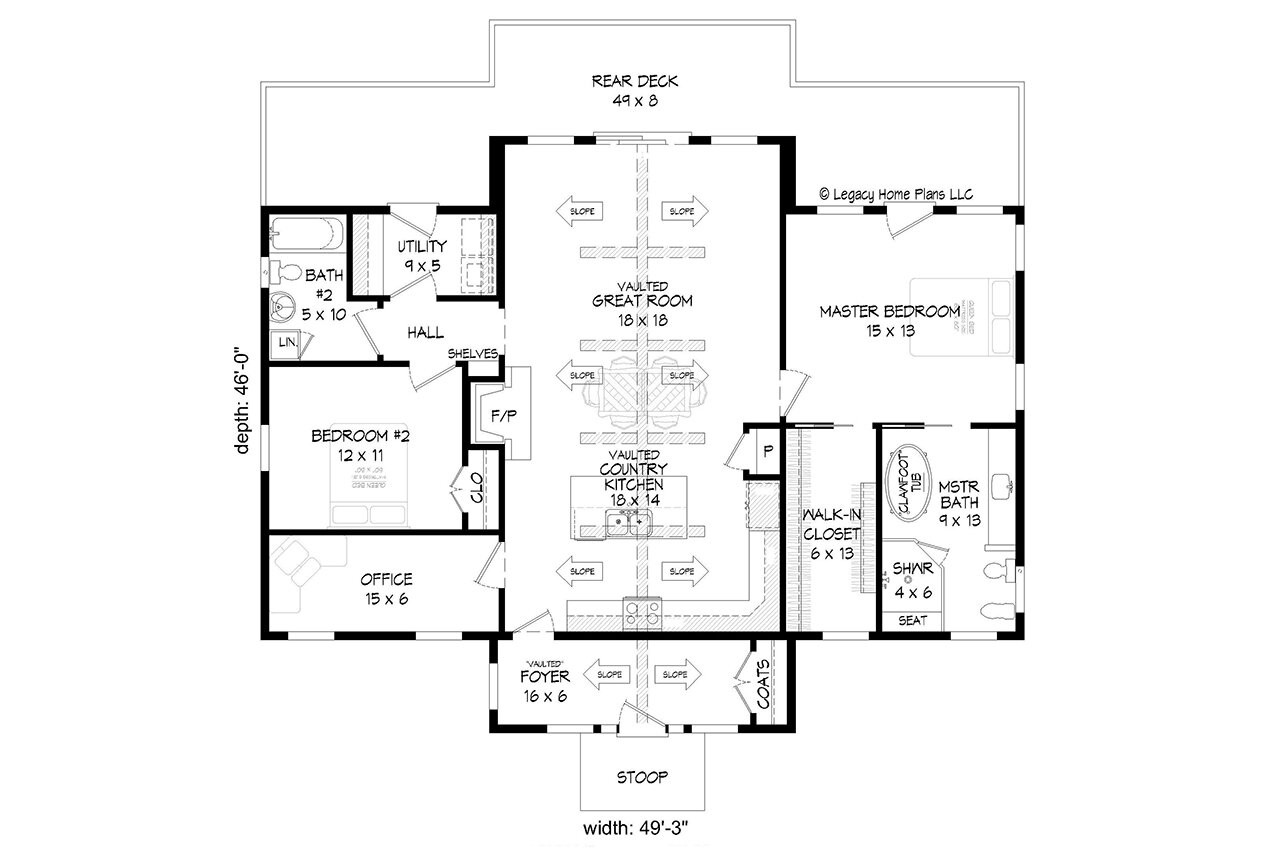

The Rocky Creek would make a great vacation cabin escape or a year round residence. The foyer provides a good place to shed coats, layers and boots before entering the home. Once inside, to the left is an office, to the right the kitchen that is open to a large great room with a vaulted ceiling. The master suite is on the right and has patio access and a large walk-in closet. There is a secondary bedroom, bathroom, and utility room on the other side of the home.
Plan 77849

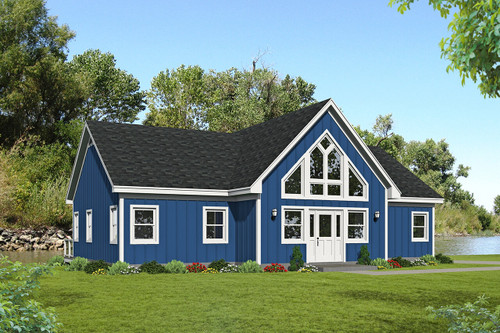

Rocky Creek
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
1586
Square Feet
-
2
Bedrooms
-
2
Full Baths
-
1
Floors
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Contact HPC Experts
Have questions? Help from our plan experts
is just a click away.
To help us answer your questions promptly, please copy and paste the following information in the fields below.
Let’s be social
Connect with us for the latest from HPC
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
New to Plan Buying?
Rocky Creek - 77849
Legacy Home Plans
$0.00
- SKU:
- 107 - 1586-384 Rocky Creek
- Plan Number:
- 77849
- Pricing Set Title:
- D (1501-1750)
- Designer Plan Title:
- 1586-384 Rocky Creek
- Date Added:
- 02/03/2023
- Date Modified:
- 01/17/2024
- Designer:
- orders@legacyhomeplans.com
- Plan Name:
- Rocky Creek
- Note Plan Packages: Plans Now:
- PDF Download!
- Family Plan:
- 1586-1970 Canadian Miss. River Retreat
- Structure Type:
- Single Family
- Square Footage: Total Living:
- 1586
- Square Footage: 1st Floor:
- 1586
- Square Footage: Rear Balcony:
- 384
- Floors:
- 1
- FLOORS_filter:
- 1
- Bedrooms:
- 2
- BEDROOMS_filter:
- 2
- Baths Full:
- 2
- FULL BATHROOMS_filter:
- 2
- Ridge Height:
- 19'1"
- Overall Exterior Depth:
- 46
- Overall Exterior Width:
- 49.3
- Main Floor Ceiling Height:
- 9'
- Available Foundations:
- Crawl Space
- Available Foundations:
- Concrete Slab
- Available Foundations:
- Basement
- Default Foundation:
- Concrete Slab
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Lot Type:
- Front View
- Lot Slope:
- Level Lot
- Lot Type:
- Rear View
- Ext Wall Material:
- Batt & Board
- Roof Framing:
- Stick
- Roof Pitch:
- 8/12
- Primary Style:
- Traditional
- Secondary Styles:
- Ranch
- Collections:
- Cabin Plans
- Collections:
- Vacation Home Plans
- Master Suite Features:
- Main Floor Master Suite
- Master Suite Features:
- Separate From Other Bedrooms
- Master Suite Features:
- Separate Tub & Shower
- Master Suite Features:
- Walk In Closet
- Master Suite Features:
- Exterior Access
- Interior Features:
- Casual or Open Style Living Room
- Interior Features:
- Fireplace/Wood Stove
- Interior Features:
- Great Room
- Interior Features:
- Den, Office, Library, or Study
- Kitchen Features:
- Kitchen Island
- Kitchen Features:
- Breakfast Nook/Dining Area
- Kitchen Features:
- Walk-In or Wall Pantry
- Utility Room Features:
- Main Floor Utility Room
- Utility Room Features:
- Close to Bedrooms
- Exterior & Porch Features:
- Deck
- Collections:
- 1 Story House Plans
- Styles:
- Traditional House Plans
- Styles:
- Ranch House Plans
- Collections:
- Small House Plans
- Product Rank:
- 6349
- Plan SKU:
- 1586-384 Rocky Creek
- Max Price:
- 1625.00
- Min Price:
- 845.00
