Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Eye-catching and inviting, this one story home plan would be a welcomed addition to any urban subdivision or rural property. A trio of materials grace the exterior of the Providence 3, a Craftsman house plan with loads of curb appeal.

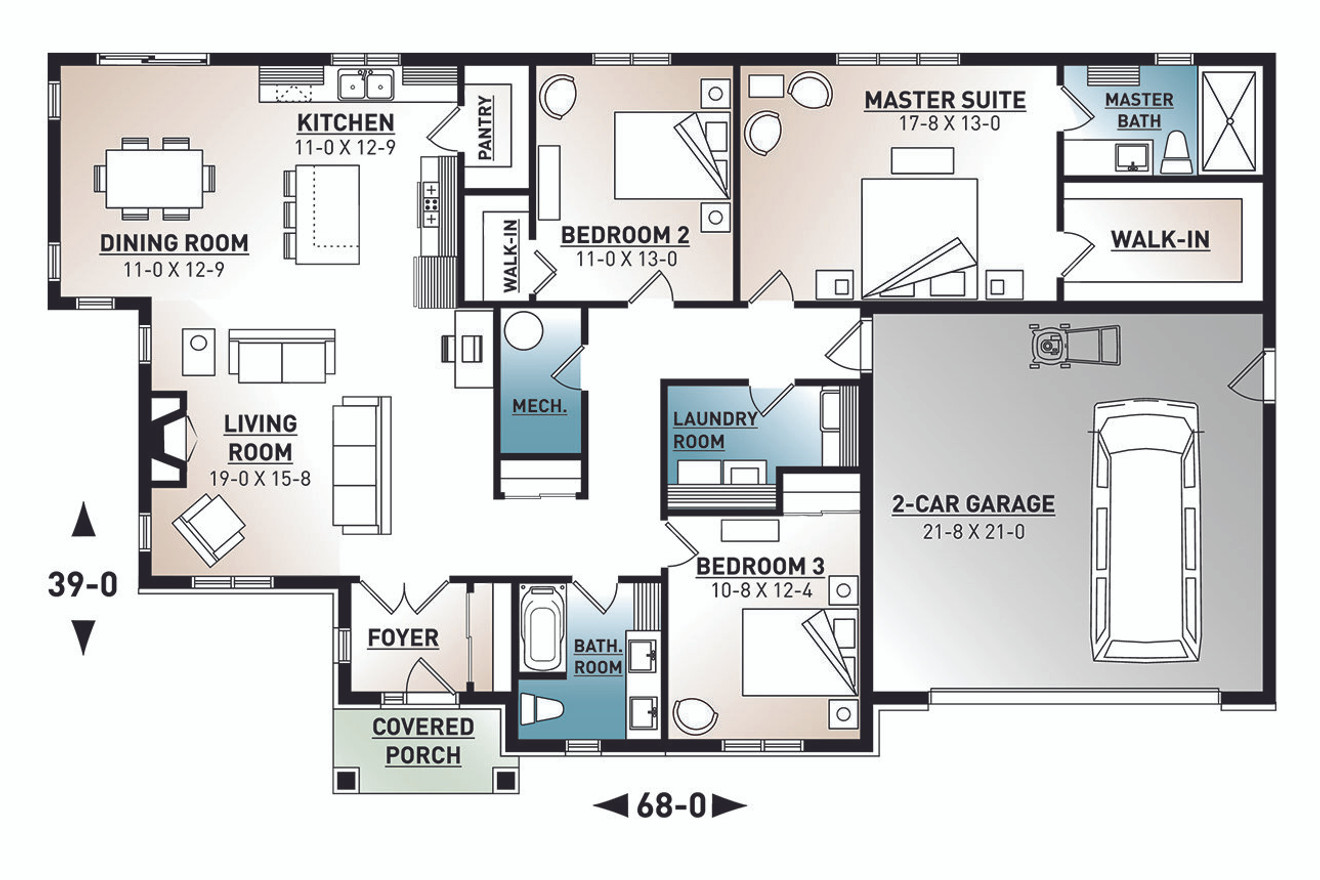

A set of tapered columns frame the front door. Stepping inside you enter into the foyer which is designed as an air lock. The benefit of the air lock is that it helps to keep the open floor plan beyond an even comfortable temperature. The nicely conditioned air won’t escape every time the front door is opened. Beyond the double doors of the air lock the Providence 3 opens up to a great room style living area.
The living room is at the front of the home and is naturally bright from windows along two walls. Centered along the left wall is a fireplace which helps to keep the living room cheery and cozy on dark winter days. Along the back, the living room is completely open to the dining room and kitchen. This open floor plan is ideal for those who enjoy informal entertaining. The dining room has access through a sliding glass door to the backyard. An island with eating bar provides some visual separation between the kitchen and the dining room along with additional seating during larger gatherings or a place to serve quick weekday meals. In addition to the island the kitchen is well-equipped with modern appliances, ample counter space, cabinet storage and a generous walk-in pantry.
Back towards the foyer a hallway traverses the home passing by a full bathroom that is shared by the secondary bedrooms and guest. Along this hallway are additional closets giving the Providence 3 ample storage space. At the end of the hallway is the spacious laundry room, attached two-car garage and master suite.
The master suite is a true retreat from the busy day-to-day activities of the main living area. Large enough for a small sitting area the master bedroom also features a large walk-in closet and private bathroom with shower, toilet and single vanity.
