Basement Ceiling Height: 8'-0"
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to plan buying?

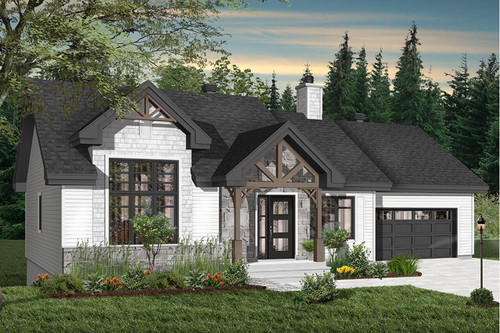

The eye catching Barrington 2 is a one story home plan filled with country charm. The combination of natural materials including lap siding and stone will cause those walking by to stop and take a second look at this country home plan.

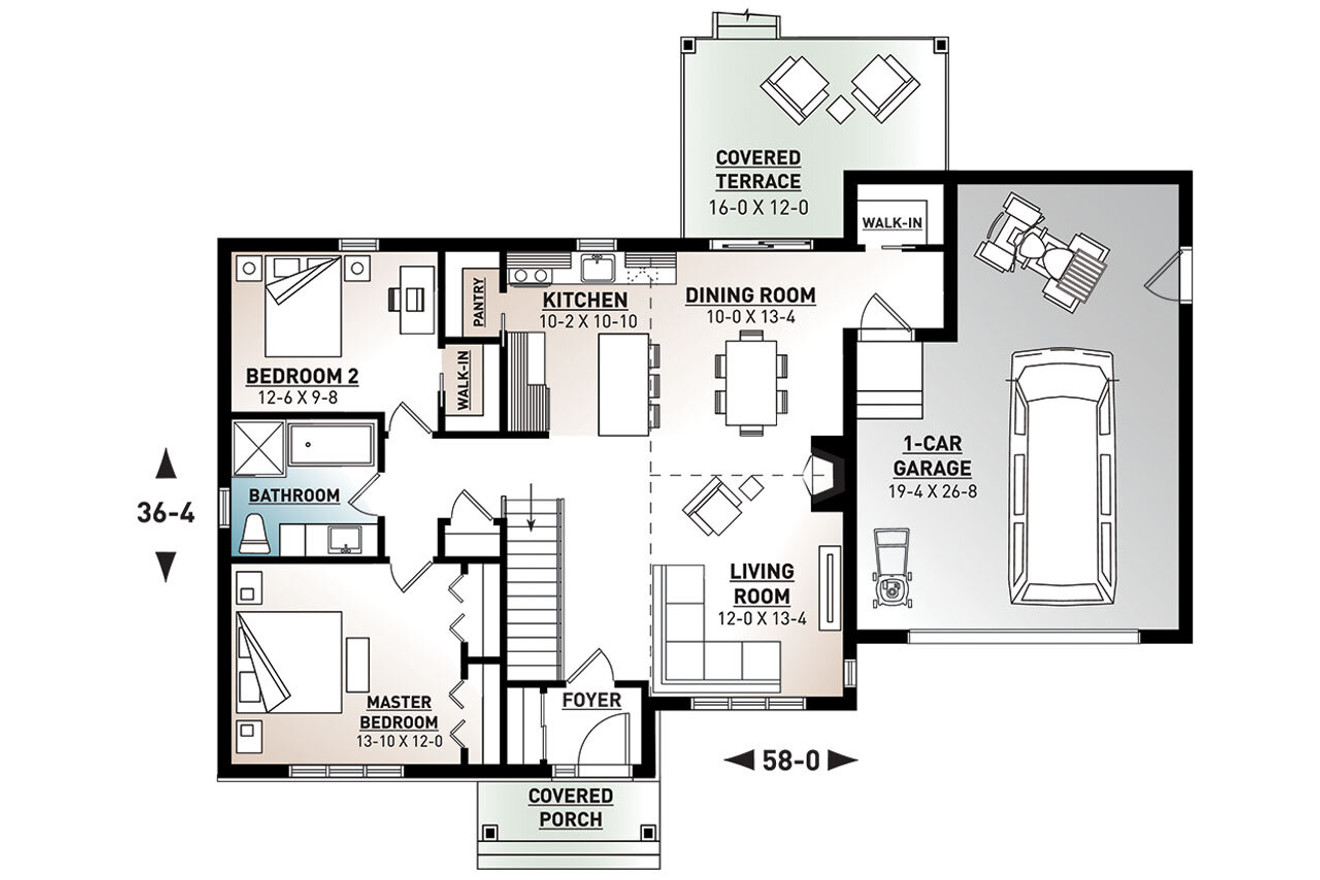

Surrounded by stone and framed by delicate posts the front door opens into a cozy foyer. Designed to also serve as an air lock, the foyer has a coat closet to the left and can be closed off from the great room beyond.
The center of the home is filled with the open concept great room. The living room is towards the front of the home and can enjoy the fireplace that is centered along the right wall. Sliding glass doors in the dining room open the great room up to the covered terrace. During warm, summer days living can spread to the outdoors. To the right of the dining room is a short hallway with a walk-in storage closet and access to the oversized attached one car garage. To the left of the dining room is the well-appointed kitchen. Complete with step-in pantry, the kitchen is filled with modern appliances along with a center island with eating bar. The island provides additional flexibility when entertaining larger groups and makes a great spot to serve snacks.

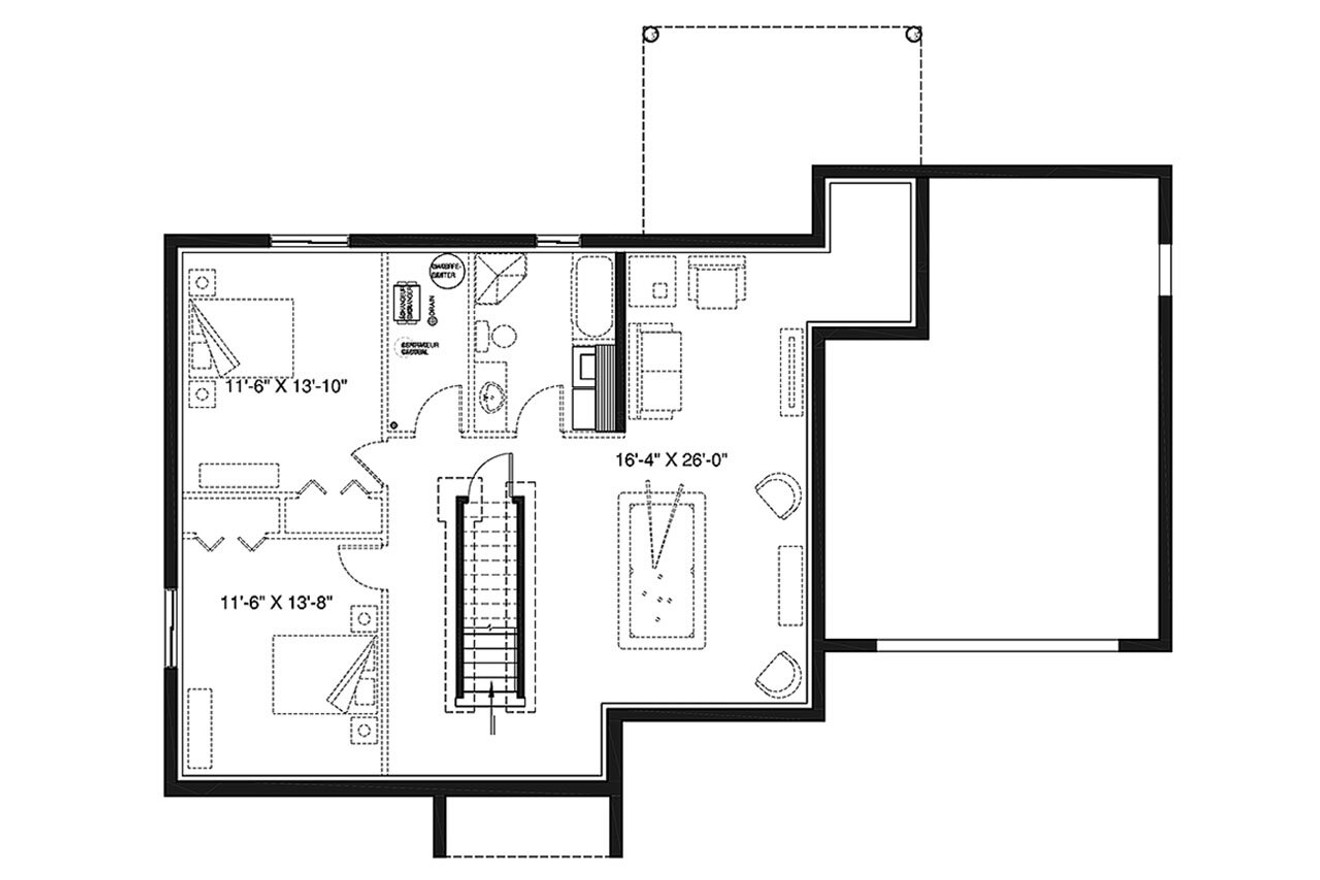

Off the great room is a stair case that leads down to the unfinished basement. The basement doubles the space available in the Barrington 2. Here is where you will find the washer and dryer and how the rest of the basement is finished is up to the homeowner. The suggested layout adds two additional bedrooms, a storage closet, a full bathroom and possible game or recreation room.
Back on the main floor, the left side of the home is filled with the sleeping areas. The larger room is the master bedroom and features two closets. The smaller bedroom is provided a walk-in closet to help the room live a little larger. Between the two bedrooms is a full bathroom complete with walk-in shower, soaking tub, toilet and single vanity.
