Basement Ceiling Height = 8'-0"
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to plan buying?

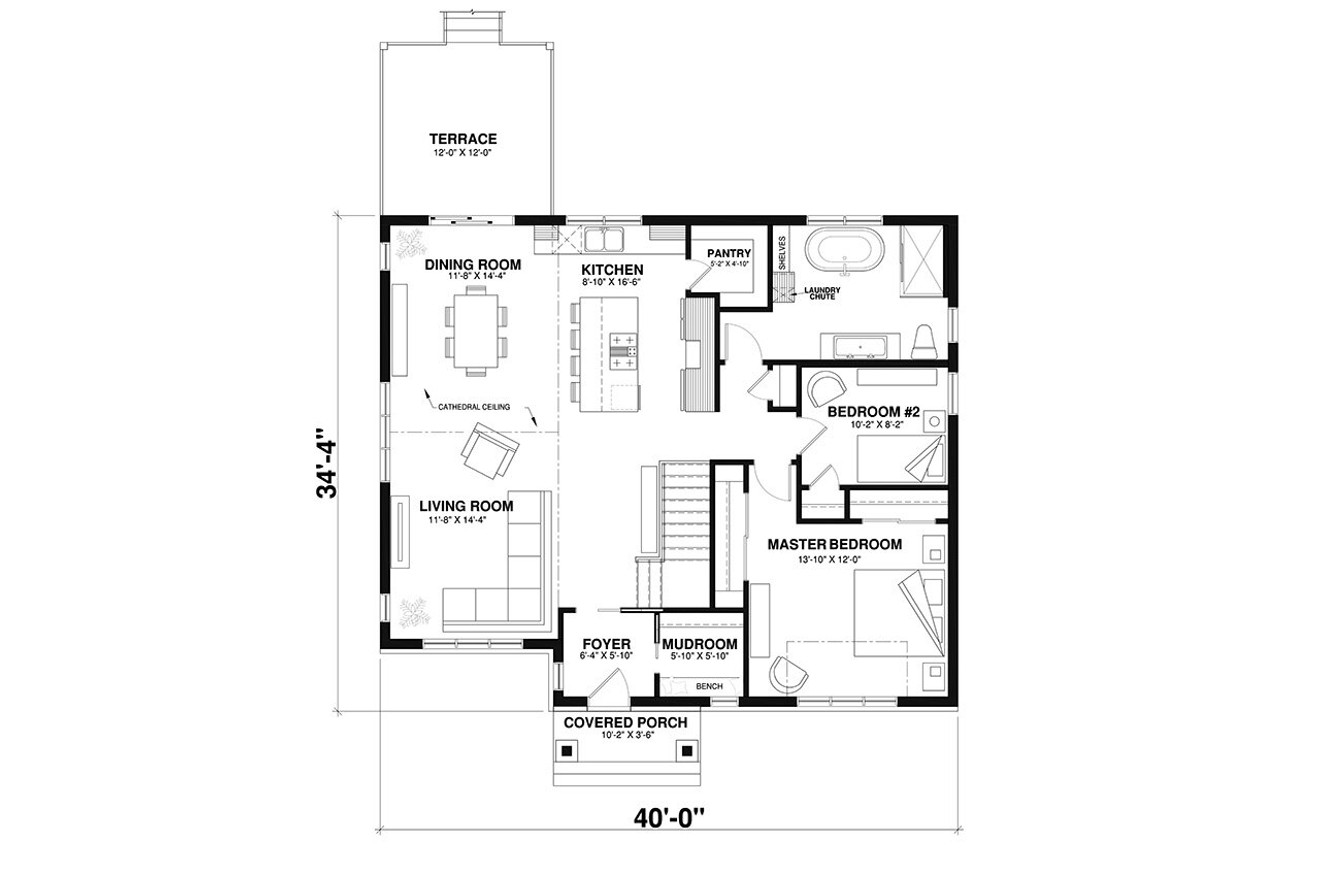

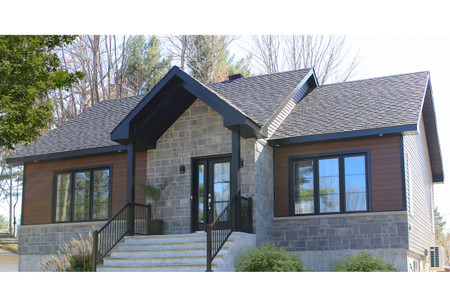

The Barrington 4 is a farmhouse inspired home design. A covered stoop frames the front door creating a welcoming first impression. Inside the foyer is designed as an airlock allowing for private along with temperature control throughout the rest of the home. Immediately to the right, a pocket door hides the mud room complete with bench and coat closet. Through the foyer the floor plan opens to an informal great room. Living, dining room, and kitchen are all open to each other. A cathedral ceiling adds to the spacious feeling of the great room. The kitchen island with eating bar provides some visual separation of the kitchen from the rest of the gathering space. The right side of the first floor plan is filled with two bedrooms, the largest being the master, and a full bathroom with separate tub and shower. The basement level offers two additional bedrooms and flex space that can be furnished as a game room, recreation room, family room, or whatever else suites.
