Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
A traditional duplex plan, the Dalian, was designed with investment properties in mind while still adding pleasant aesthetics to the neighborhood. With three levels filled with bedrooms and bathrooms and two units, this plan is functional while still affording each tenant privacy and a communal place to gather.
The units are identical, mirror versions of each other. The entry leads into a hall with the staircase, a storage closet, a communal laundry room, and the first of five bedrooms in each unit. Up the stairs, on the second level, there are three more bedrooms and a small built-in unit designed to fit a small refrigerator. On the third, top floor is the final bedroom as well as the communal space. Each bedroom has a private, full bath and a closet. The bedroom on the first floor has the added benefit of a walk-in closet, to make up for being the furthest from the kitchen.

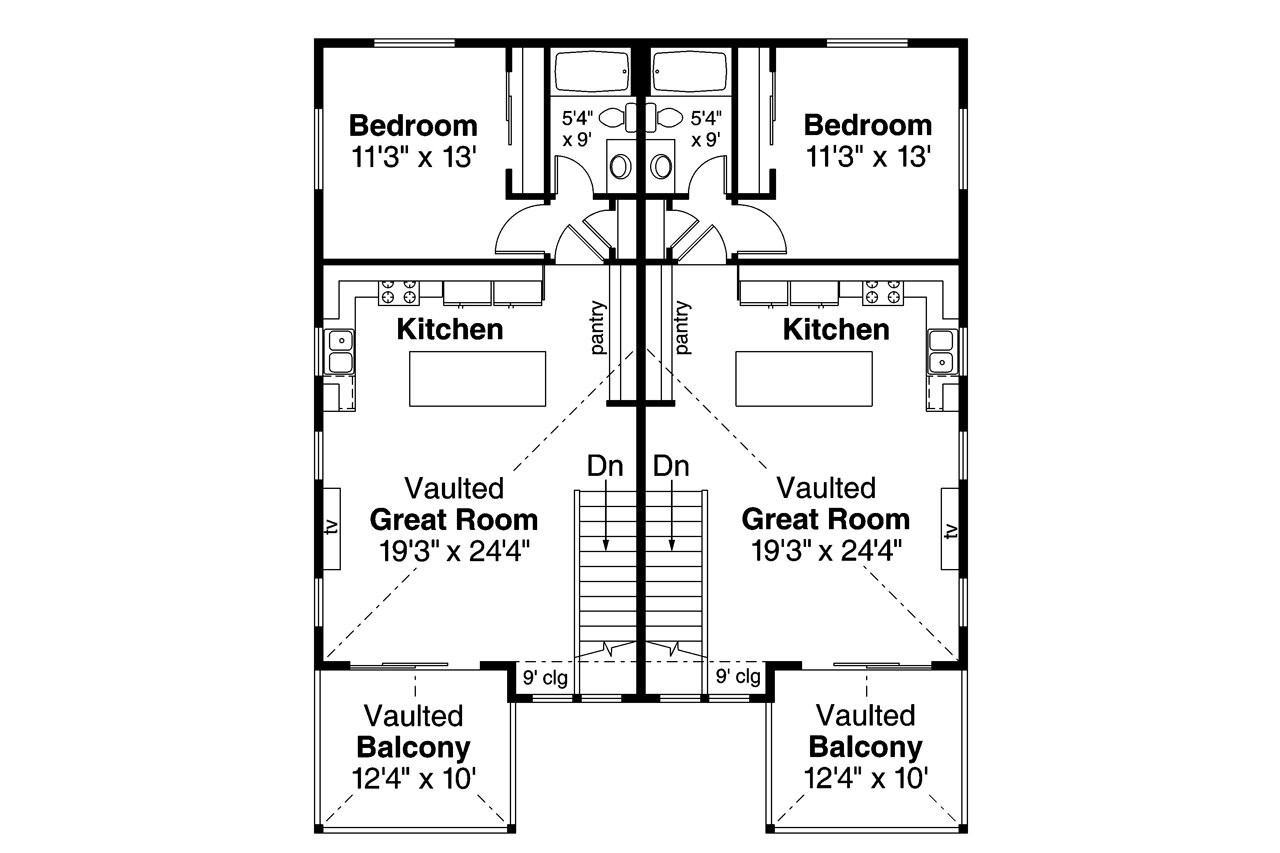

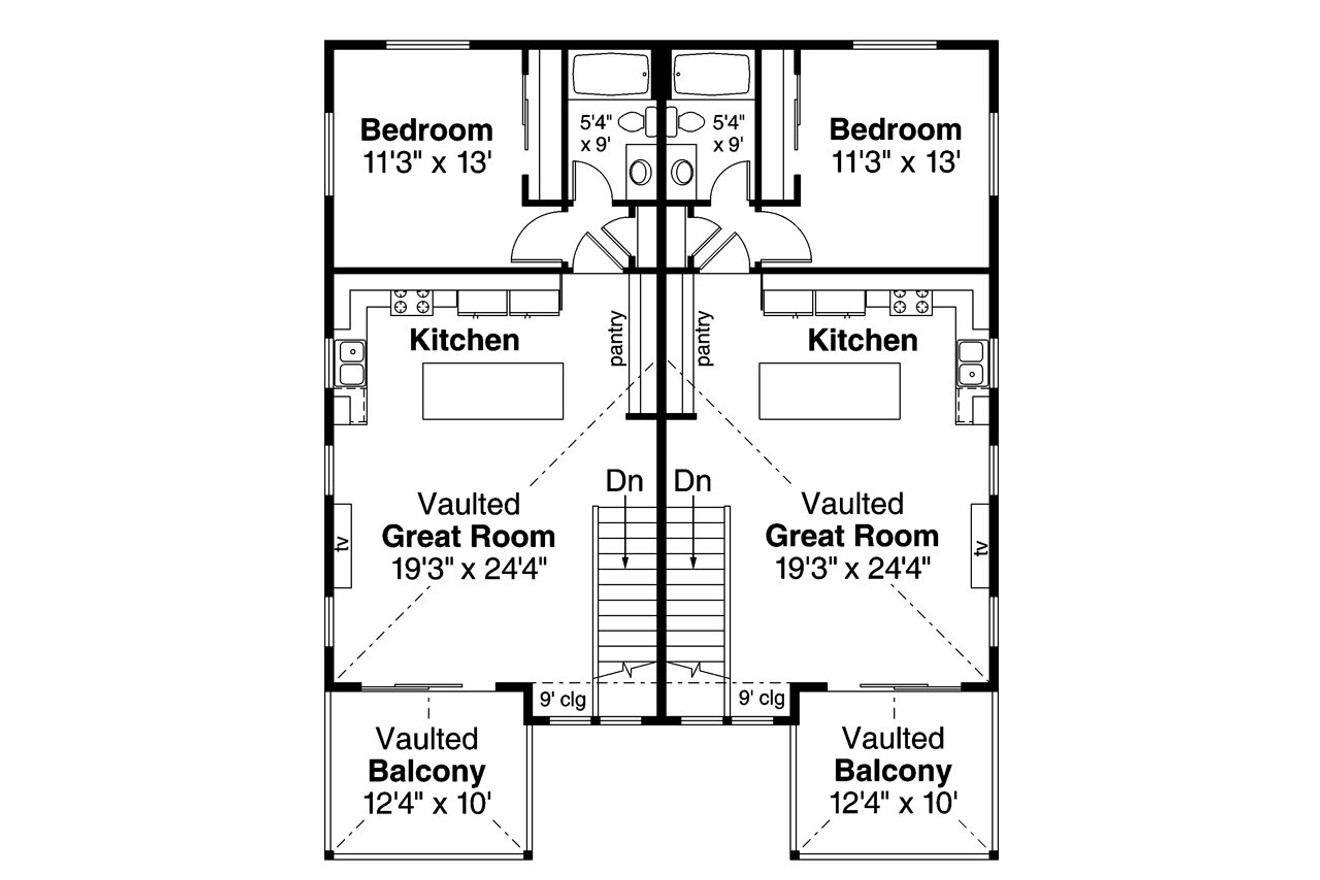

The communal space includes a great room and a kitchen. The tall, vaulted ceilings bring volume to welcome in natural light. The kitchen has dual refrigerators, a large island, and a built-in wall pantry. On the other side of the great room is the exit on to a vaulted balcony, perfect for quiet outdoor enjoyment.

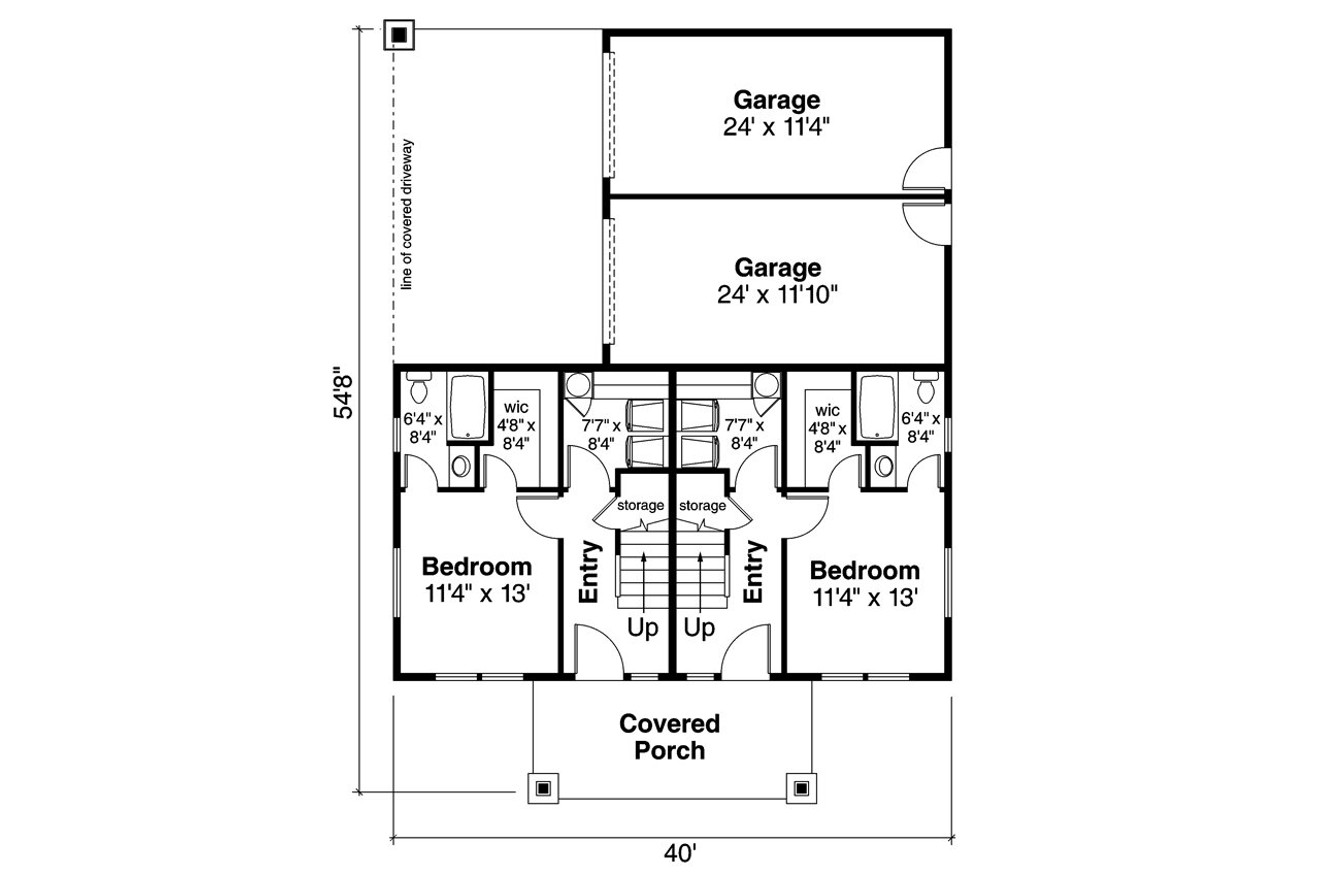

The Dalian also has two, single car garages tucked into the back of the house with a side entrance. The garages could be accessed by an ally or the design would also work on a corner lot. The two garages can be assigned per unit or rented out individually since neither is directly accessed from any particular unit.
