Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to plan buying?

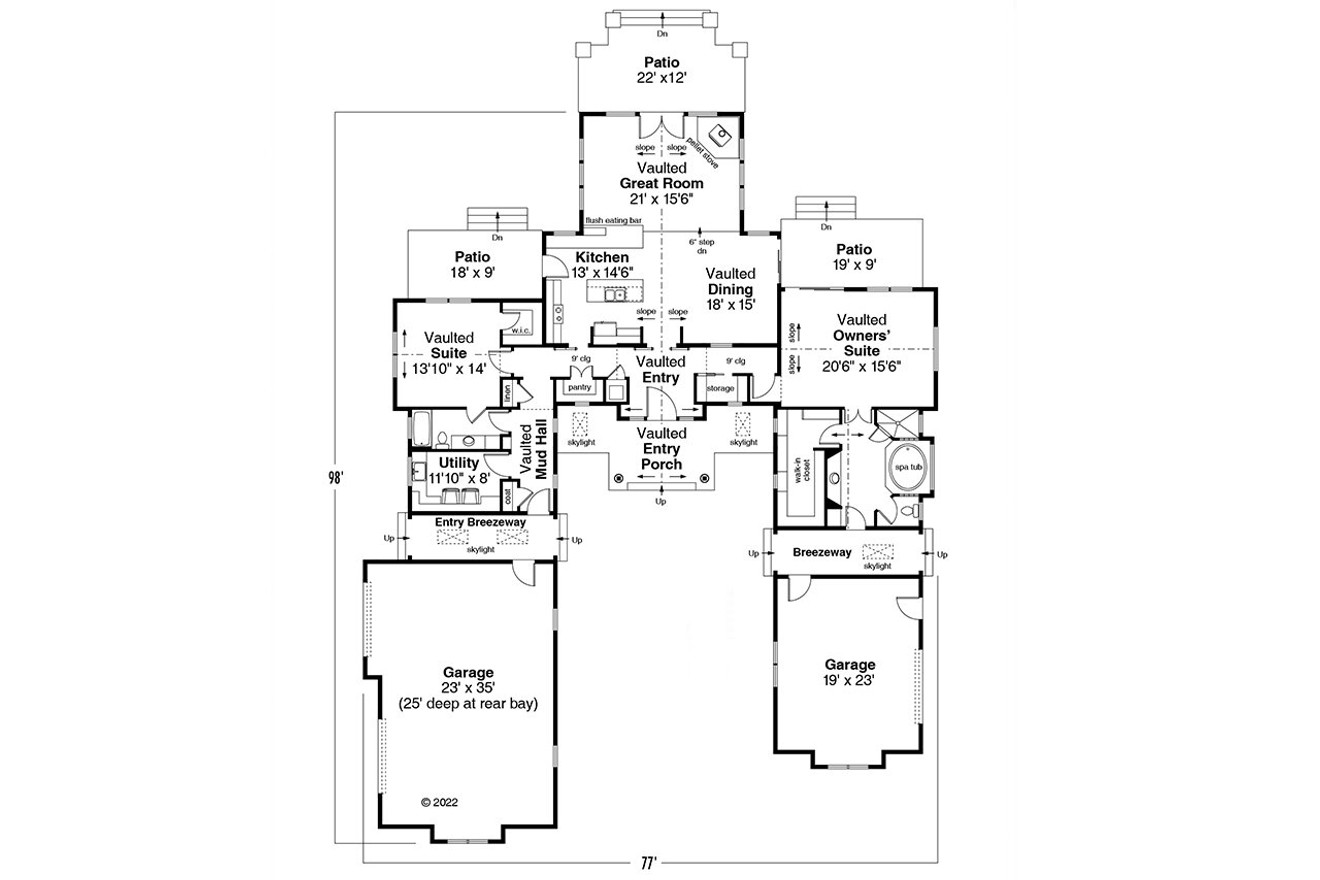

A grand exterior and magnificent vaulted porch introduce the Umatilla, a two-bedroom Craftsman home plan. Encompassing both sides of the home are the two garages. The left garage bay holds two cars, has two 10’ x 8’ doors and is 916 sq. ft. in size. On the right side of the home is the smaller 500 sq. ft. garage with a single 10’ x 8’ door. Breezeways let in an abundance of natural light through the skylights, each separating the garage from the main home. The vaulted porch enters to the vaulted entry. Upon entering the home, you will notice that vaults are the name of the game with this home design, as you step into the vaulted Dining Room and Kitchen. Made for a perfect View Lot, the Great Room’s back wall is adorned with large abundant windows letting in ample sunshine. The left side of the home is made up of the second bedroom with its own walk-in closet. The Mud Hall makes for a perfect place to drop your dirty clothes with easy access in the hall to the second bathroom and Utility room. The left side of he home boasts the Master Suite that is impressive in every way. The Master Suite not only has its own bathroom with a separate tub and shower, private toilet and exterior access, but most coveted is the oversized walk-in closet.
