Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).

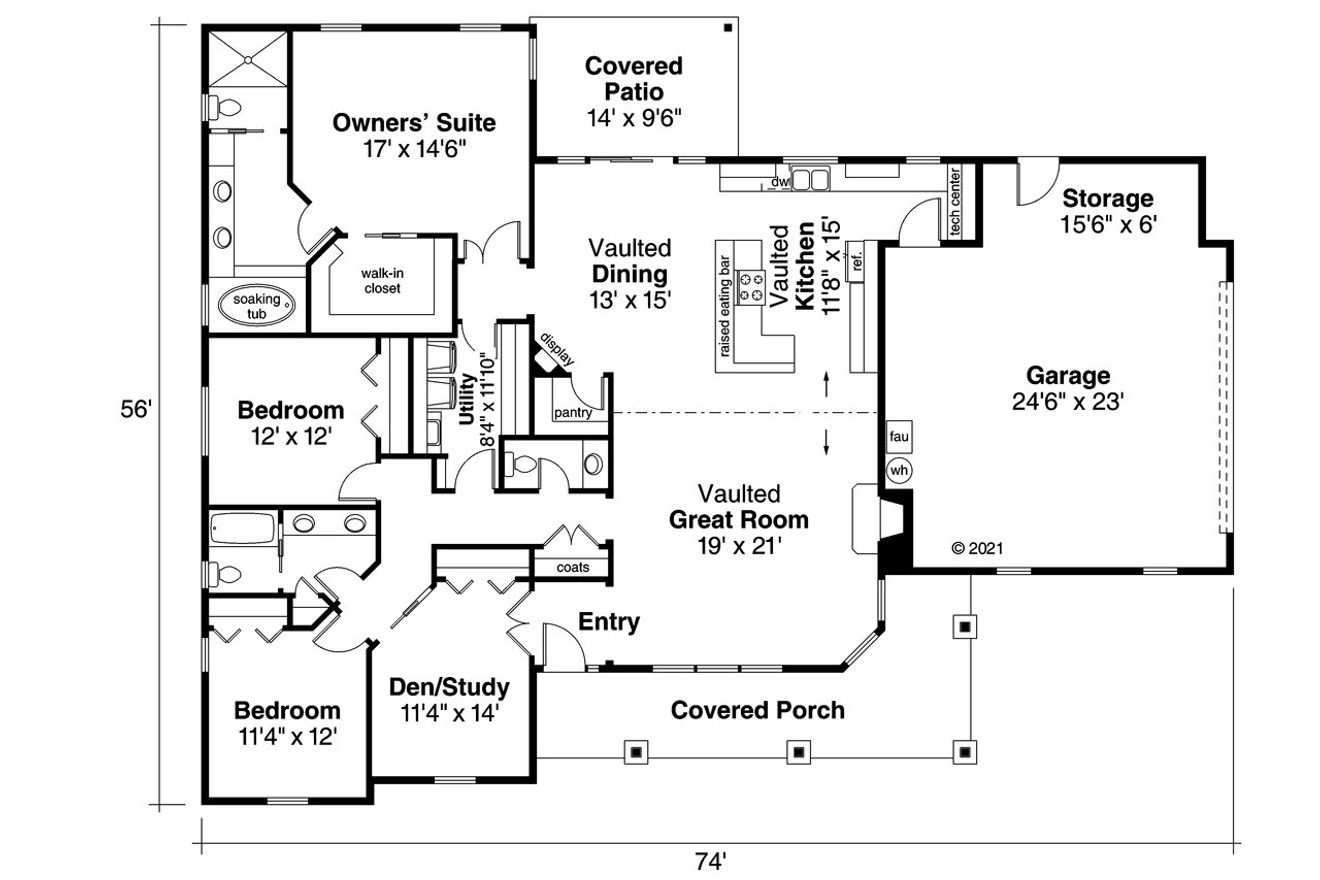

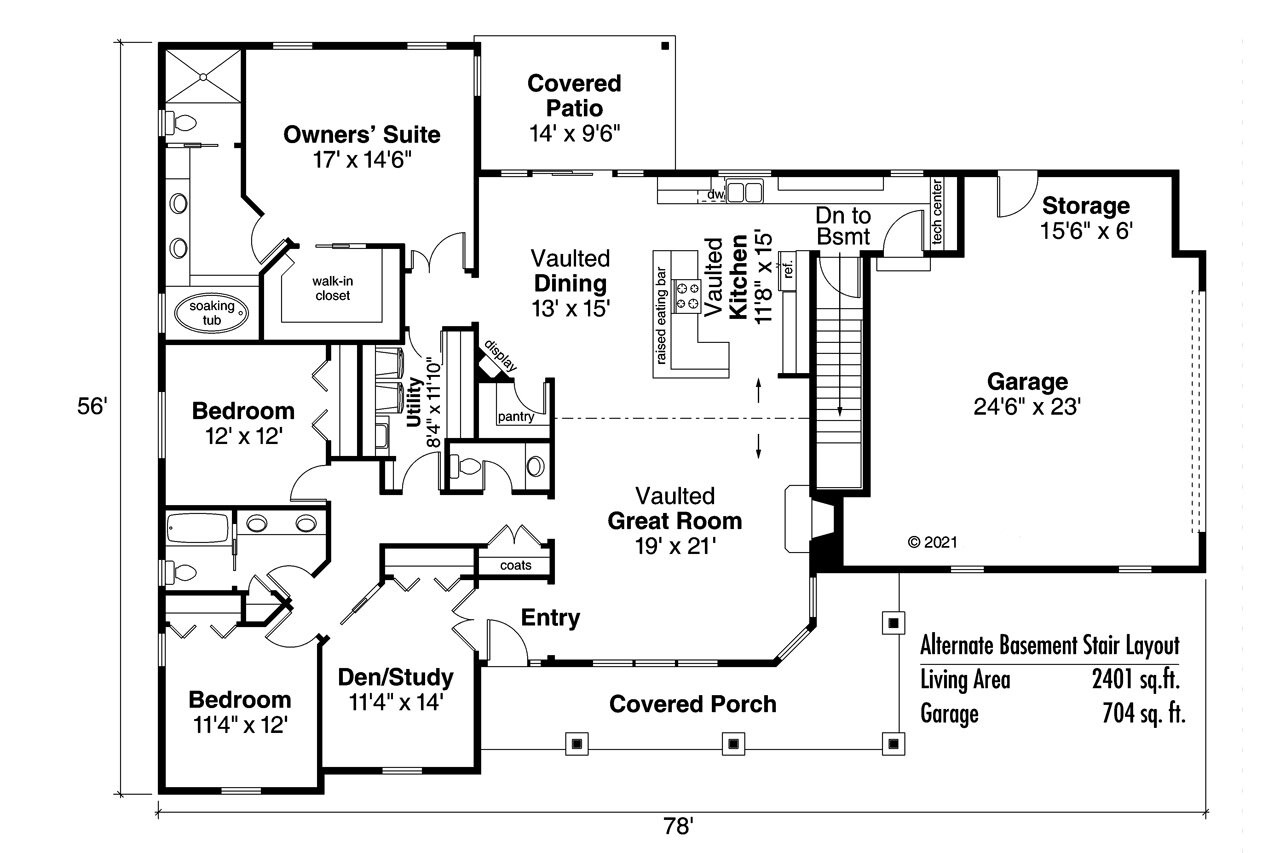

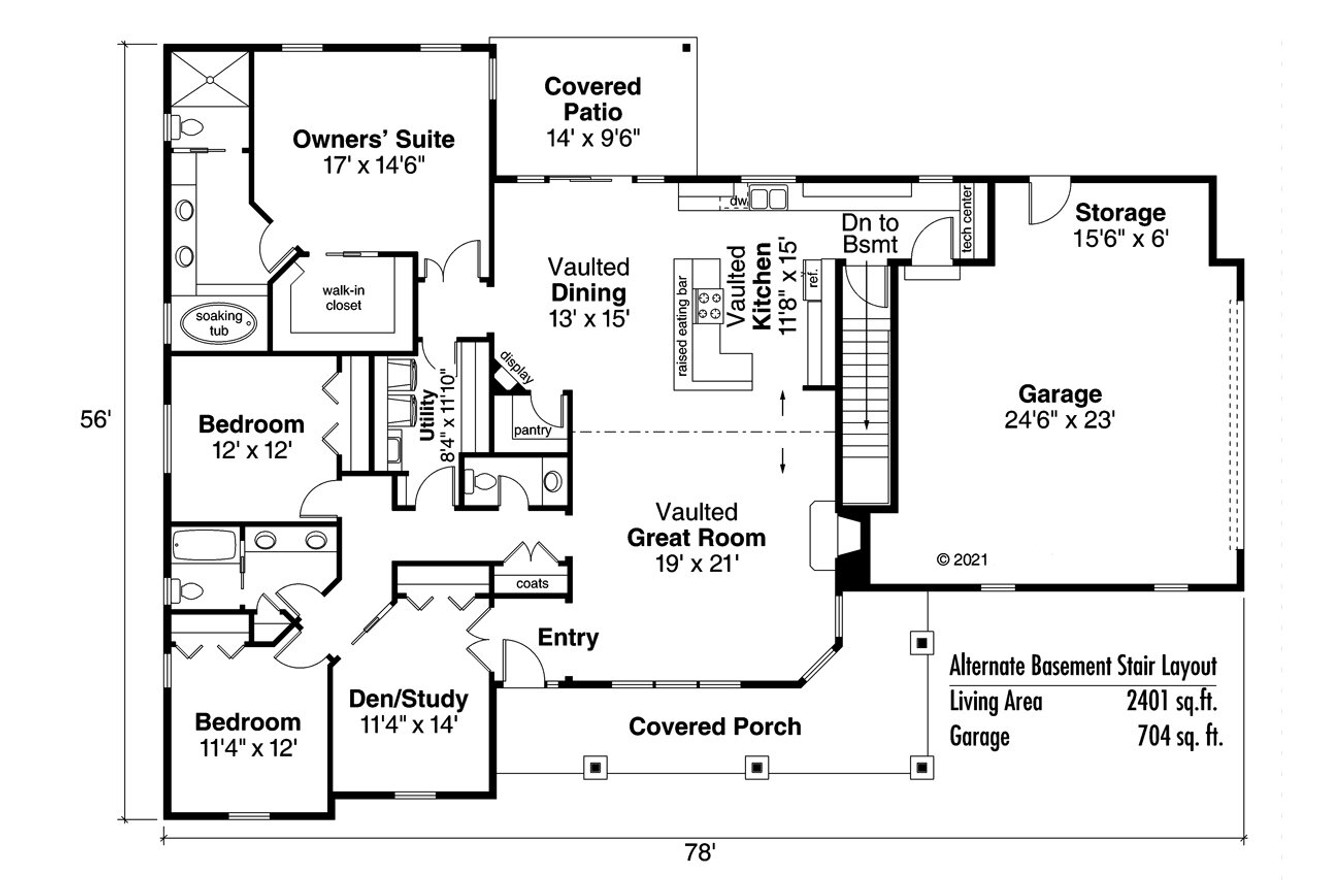

Clean horizontal lap siding and batt and board gable ends come together giving the Brightheart its contemporary charm. This country house plan is just as at home on a city lot as on rural property.
Slender posts with stone bases line the front covered porch. The spacious porch is an ideal place for a swinging bench or outdoor furniture. Stepping inside the entry is completely open to the great room. To the left a set of French doors open to the den. This room could also be furnished as a study or home office. Back at the entry a coat closet is just around the corner along with a half bath.
The great room is open and bright. The front wall is lined with windows flooding the room with natural light. A fireplace is centered on the right wall of the vaulted great room and is sure to be the center of attention on cold winter nights. The kitchen is completely open to the living room and offers ample work space and cabinet storage. The dining room is on the other side of the eating bar that lines the kitchen. From the dining room the covered porch can be accessed through a sliding glass door. Around the corner from the kitchen is access to the attached, side entry two car garage. The garage is oversized and offers a storage bay.
The left side of the floor plan is filled with sleeping areas. From the great room a hall leads to the secondary bedrooms along with the utility room. The two bedrooms share a compartmentalized bathroom with dual vanities. The utility room is designed as a pass through space and connects to the hallway to the owners’ suite. This hall is also accessed off the dining room.
The owners’ suite is a wonderful retreat featuring a large walk-in closet and private bathroom. The owners’ suite bathroom has a soaking tub, twin sinks, and a walk-in shower.
Filled with modern features and its open living design, the Brightheart house plan is sure to be a favorite of homeowners’ and builders alike.
