Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
Enchanting and expansive, this country house plan offers a multitude of gathering and private spaces. The facade is rustic and charming. The exterior is adorned with quaint, homey details including a metal chimney, composition shingles, and lap siding. The covered porch with wood handrails is particularly inviting. The space can be treated as a casual nook, somewhere to curl up with a cup of tea and a good book.
Going beyond the porch, you will step into the vaulted entry, with a coat closet on your right. To the left, the floor plan opens to the vaulted Great Room, complete with a wood stove. The stove ensures the home will be full of warmth and light even on the coldest, darkest of nights.
The Great Room seamlessly feeds into the dining room and the kitchen. The Hayden’s open concept floor plan is a modern attribute to an otherwise traditional home. This bright, airy space is perfect for social gatherings, big or small.
Through sliding glass doors, the dining room opens out to the covered patio. The patio is ideal for outdoor living. The area can be used as an extension of the home’s interior. With outdoor seating, the patio acts as an additional gathering space.
This small house plan has a lovely kitchen which contains built-in appliances, ample counter space, and a flush eating bar, ideal for serving up snacks or quick weekday meals.
Nearby is the utility room, complete with a washer and dryer set, a sink, and a deep pantry. The utility room feeds out into the attached, two-car garage. The spacious garage has pull down attic access and added storage.

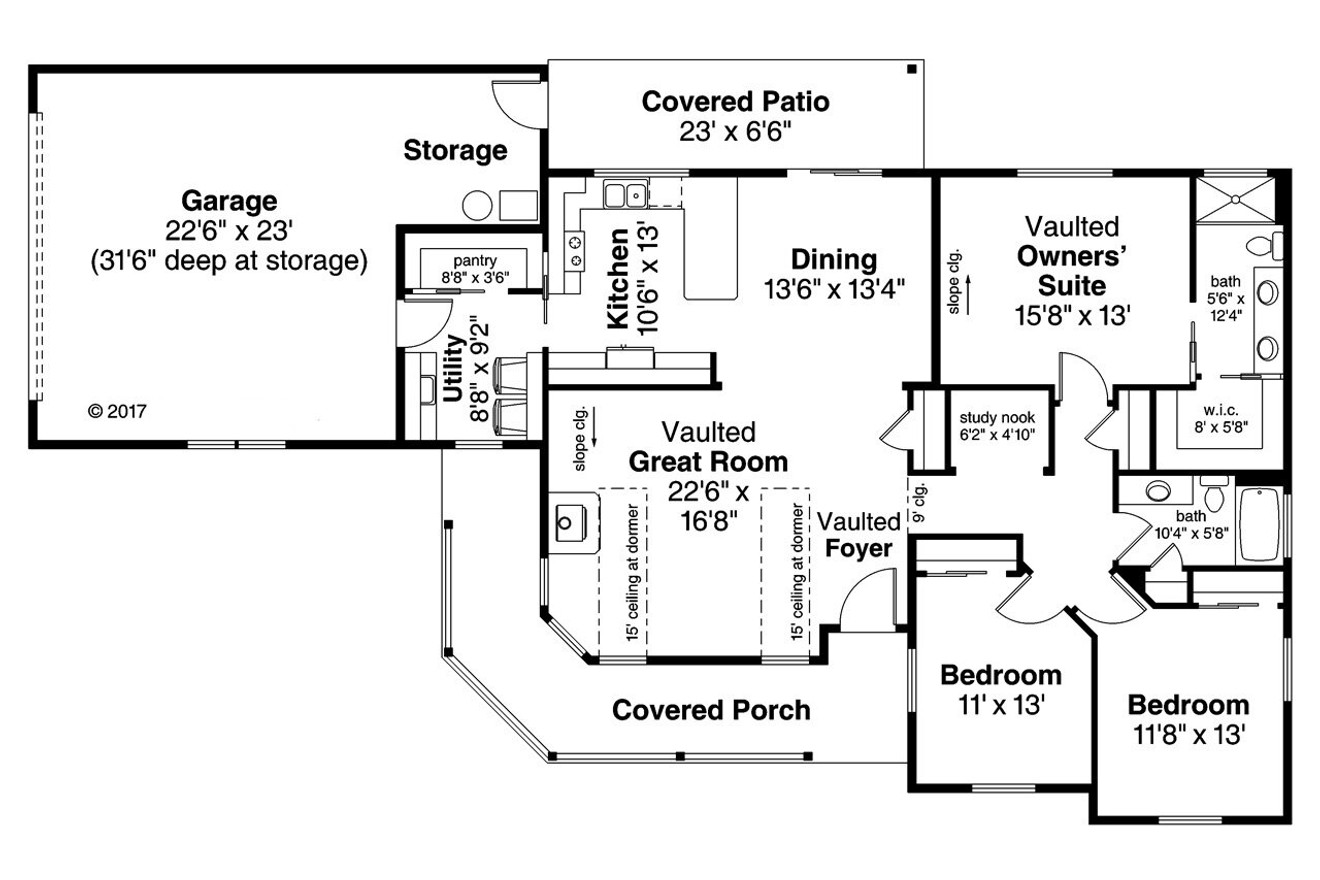

The right side of the floor plan, you will find two bedrooms, an idyllic study nook, a bathroom, and the vaulted owners’ suite. If a study nook is not needed then this space could be furnished as a pocket office.
The high ceilinged owners’ suite is peaceful and private, boasting an impressive walk-in closet and a bathroom. The luxurious owners’ bath has a sizable shower and dual vanities.
