Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to plan buying?

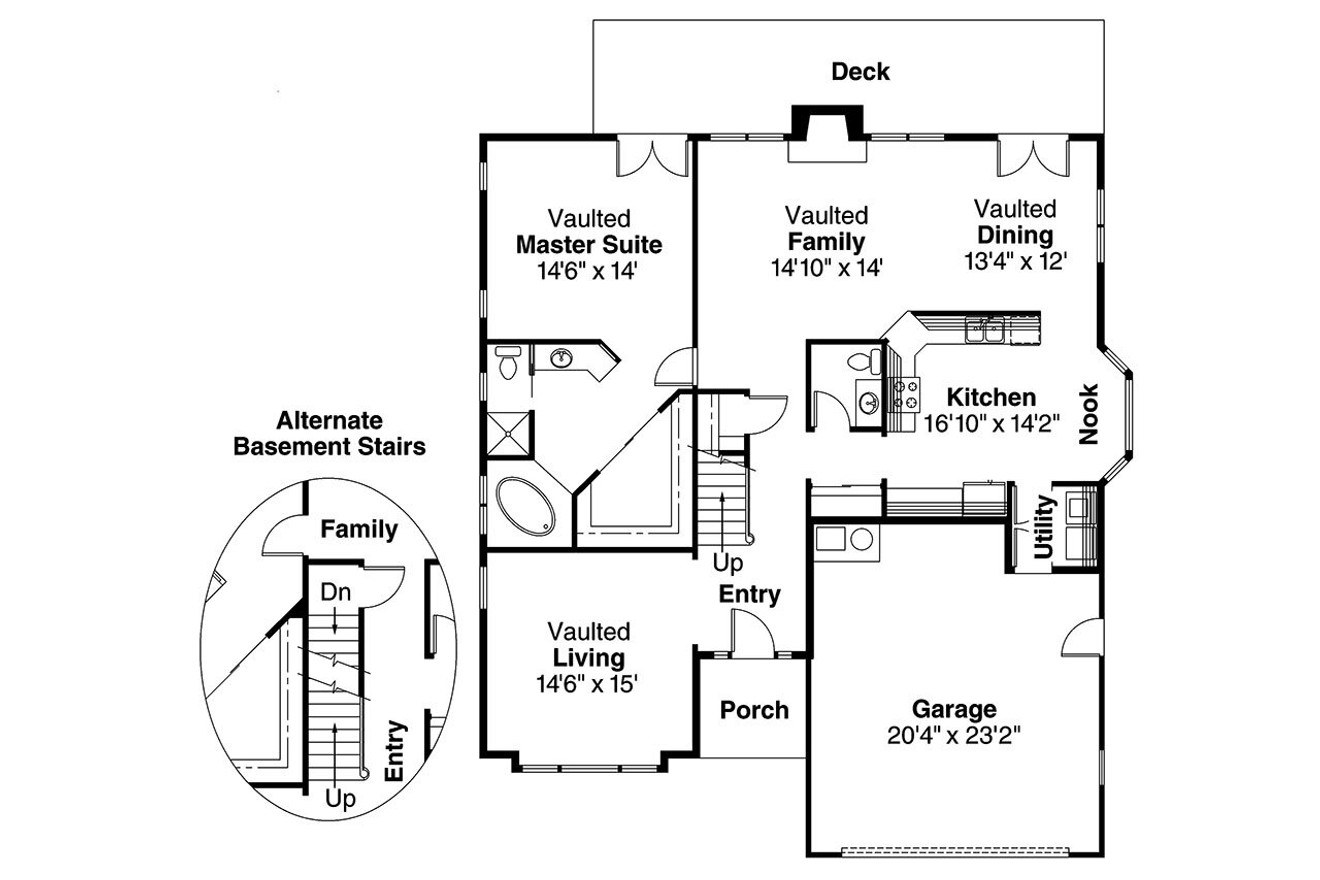

The Maderas is a traditional house plan that is just at home on a smaller, urban lot as a sprawling country property. A house with this efficient exterior, you may well anticipate a significantly confined interior, but this is simply not the case with this 1.5 story home plan.
Vaulted ceilings flow throughout in the entry, living room, dining room, family room and master suite adding a sense of spaciousness to the Maderas. The living room is further magnified by means of a bay window.
The open-style living area has only partial separation between the family room, dining, and kitchen. This configuration keeps the kitchen mess well out of sight until there is time and energy to tidy up. Additional kitchen features include a bright eating nook, a little pantry, and a pass-through counter to the family room.
A half bathroom is conveniently close to your kitchen, living room and entrance. The pass-through utility room creates a passageway between your two-car garage and your kitchen.
The private master suite boasts a generous walk-in closet, a soaking tub, and a separate shower. To top it off, French doors from the bedroom provide private access to the deck.
Two comfortable bedrooms and a bathroom fit neatly in the gable that runs the width of the Maderas. A bridge at the top of the stairs is open to both sides providing a bird’s eye view of the family room, to the rear, and the entry hall, to the front.
