General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale

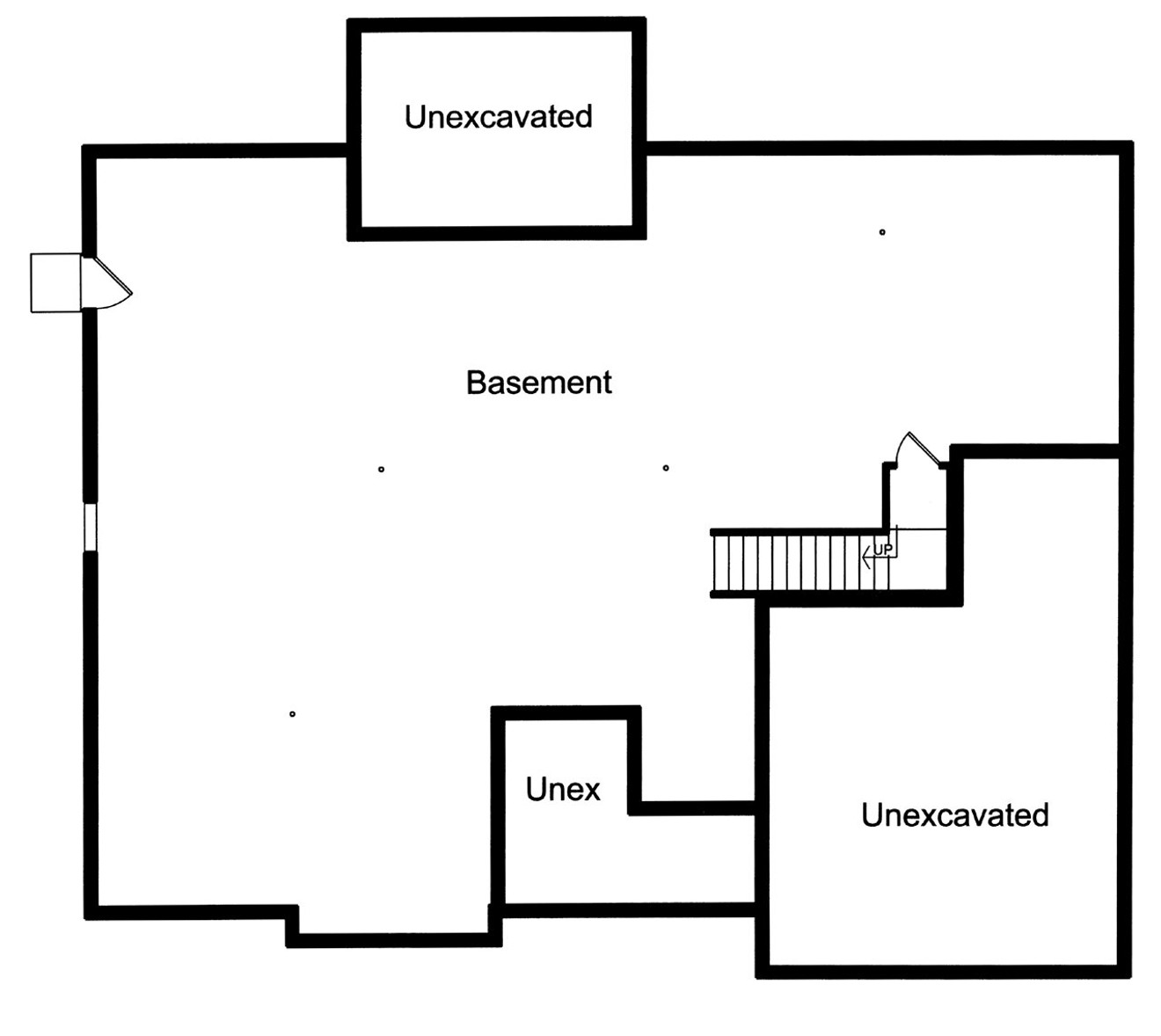

Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details

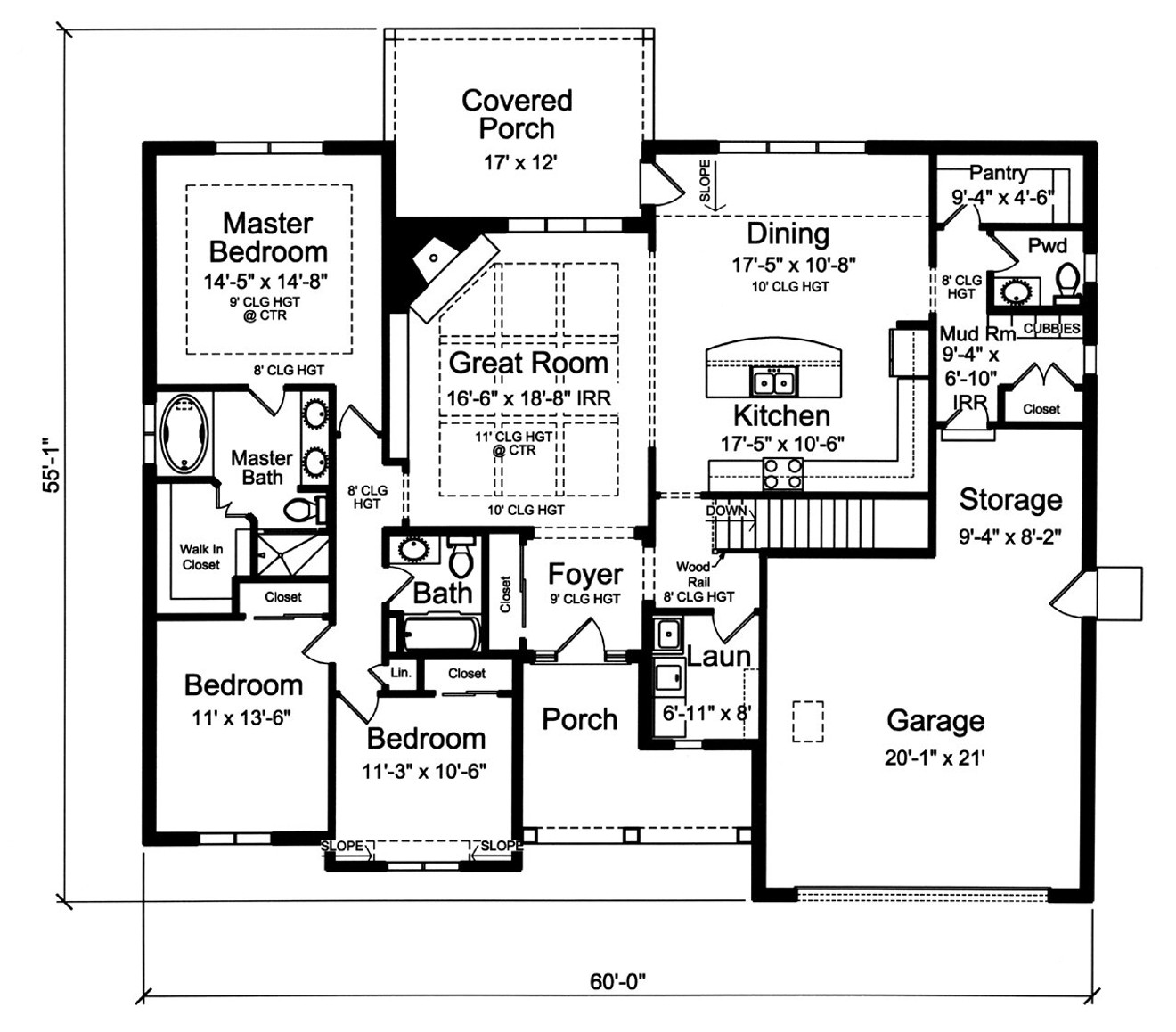

First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?
This one level home decorated with a brick and stone exterior and covered front porch introduces a highly functional floor plan. Raised ceilings in the Foyer, Great Room, Dining Area and Master Bedroom, compliment the standard 8' ceiling height. A large, open concept combines to create a wonderful family/friends gathering space, where a corner fireplace, 11' beamed ceiling, view to the rear porch and an island with seating begin the decorating style. The Master Suite pampers the homeowner with a jetted tub, shower, double bowl vanity and walk-in closet. Completing the main level a large Pantry, Half Bath, Mudroom with cubbies and a closest provide an amazing family entry. Storage in the garage allows much needed room for yard equipment and toys of all kinds. A full walk-out basement is standard with this delightful family friendly home.
