Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to plan buying?

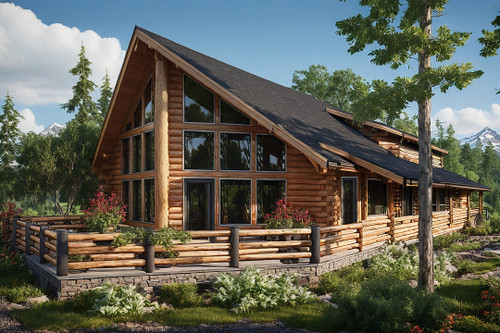

Known for durability and their insulating qualities, the log exterior of this design also adds simplicity to of maintenance. For the interior, one can choose whether to leave the logs exposed or covered to create a flat wall.
The large wrap around V-shape deck trims the front facade and continues into a covered porch along the side.

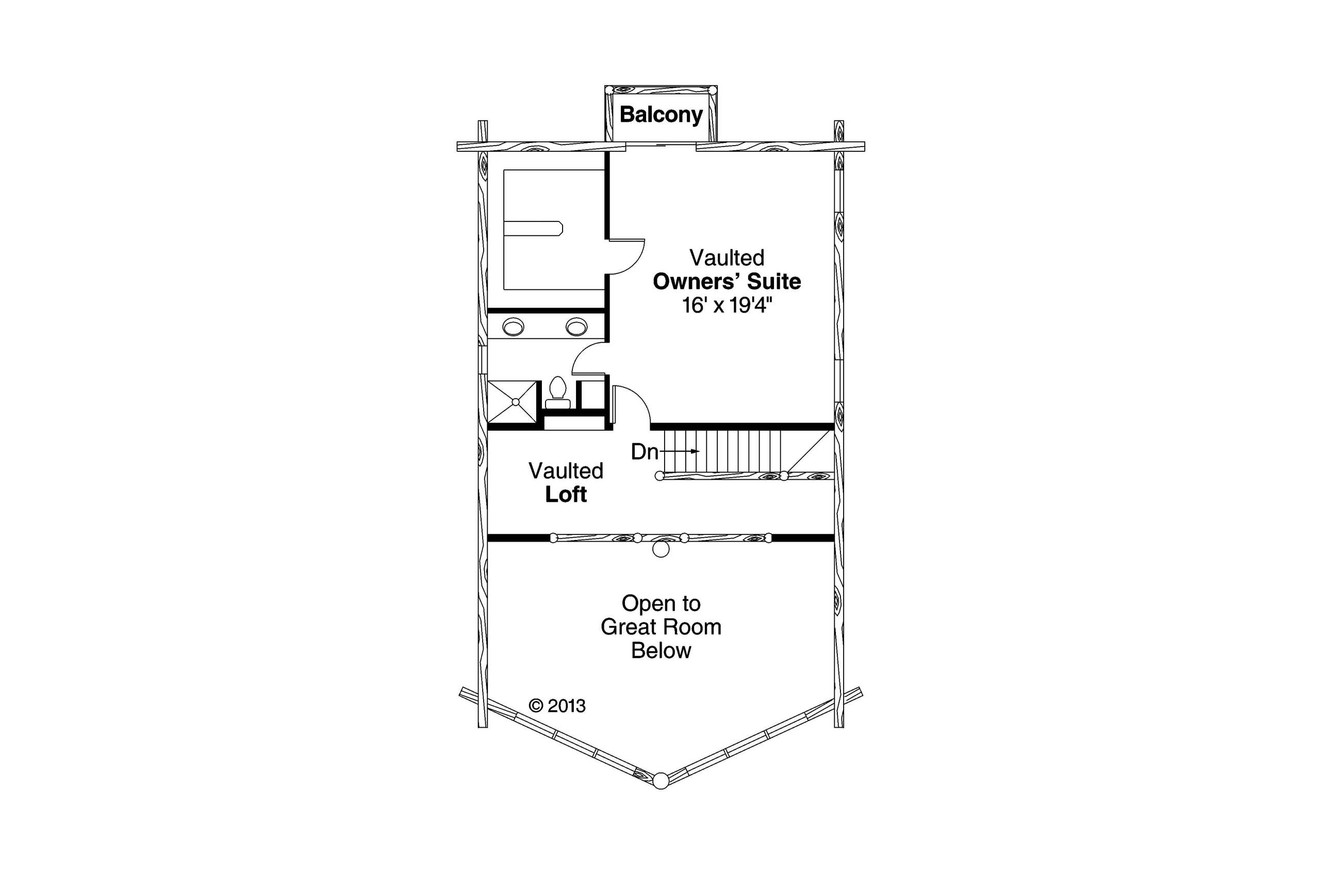

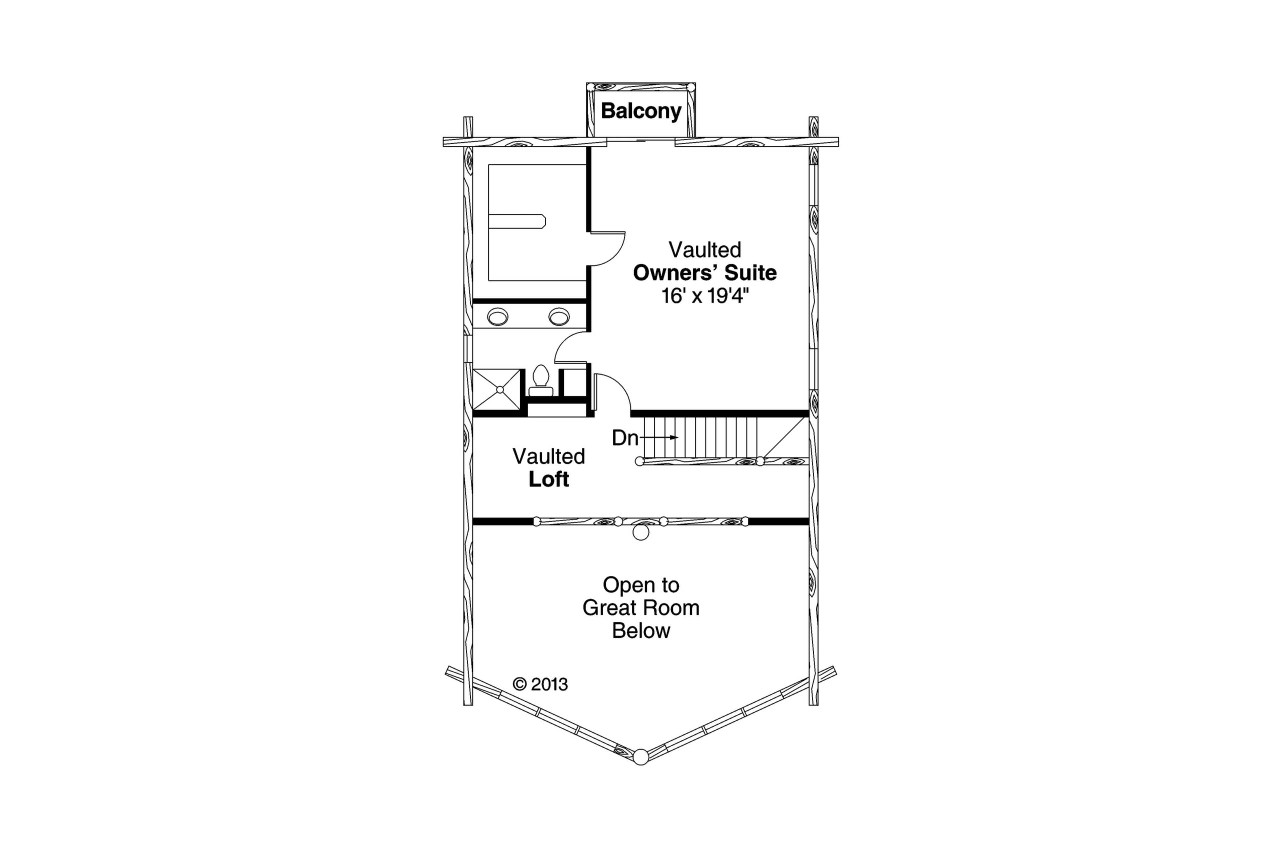

A large wall of windows fill the front wall that fills the great room with an abundance of natural light. The great room is open to a loft area above where the view to outside can continued to be appreciated. You will also find the owners' suite with a large walk-in closet, private bathroom, and a private balcony.
The front corner of the great room is a wood stove, trimmed with a brick hearth provides warmth when it's chilly.

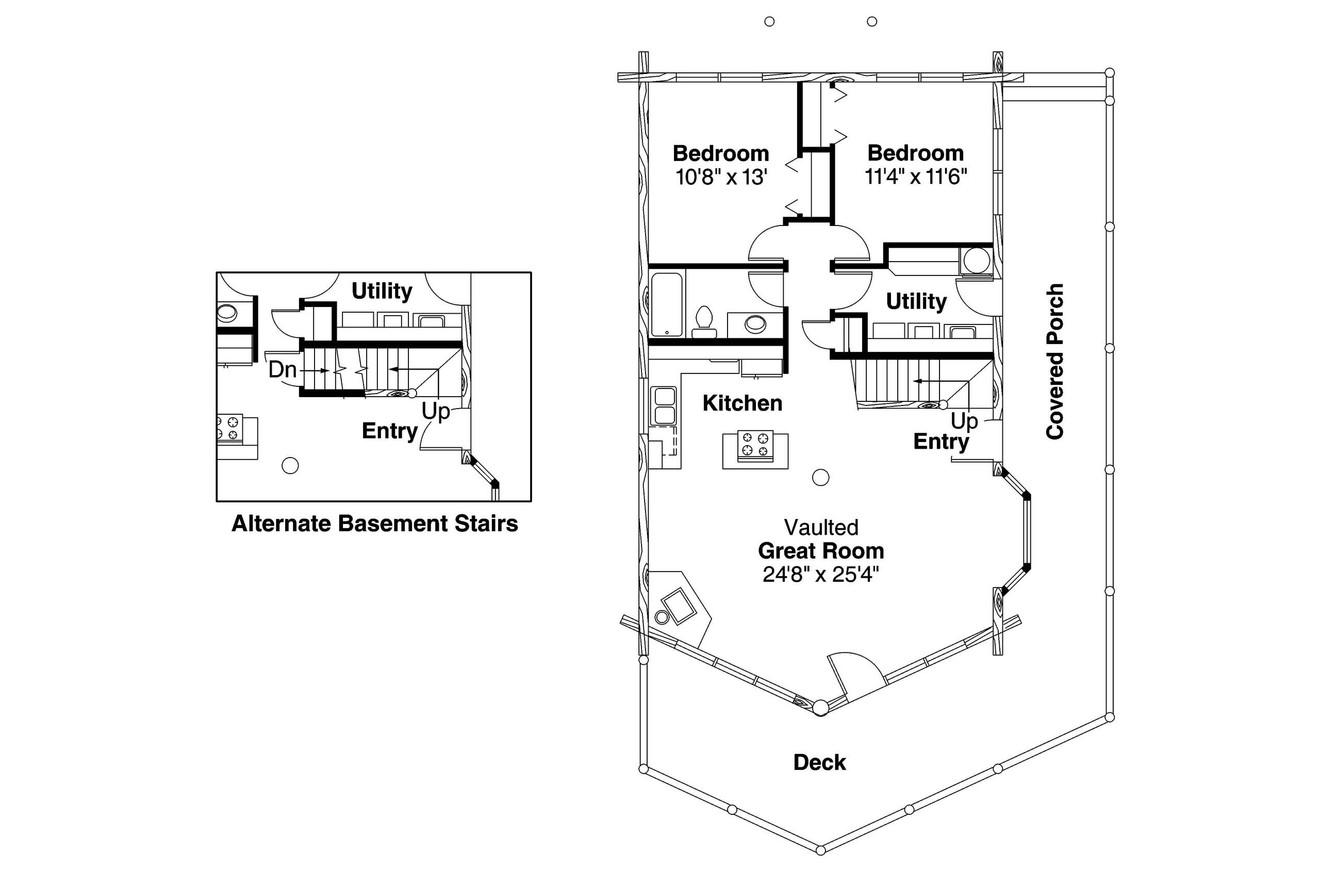

The kitchen features an island which houses the range and oven and outfitted with an eating bar. This well-appointed kitchen has Lazy Susans in the corner cabinets for ease of organization and helps keeps things within reach. A laundry room with a deep sink, cabinets and a counter is just steps away across the hall.
Two bedrooms are at the rear.
