Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to plan buying?
Manzanita is a cozy and welcoming, country house plan. Its picturesque facade is flanked with lap siding and cultured stone veneer wainscots with stone caps. Other charming details include composition roof shingles and an adorable, covered patio. The covered patio ensures guests will be protected from any kind of weather. The captivating Manzanita has a great curb appeal and floor plans with functional, exciting features that appeal to homeowners and builders alike.

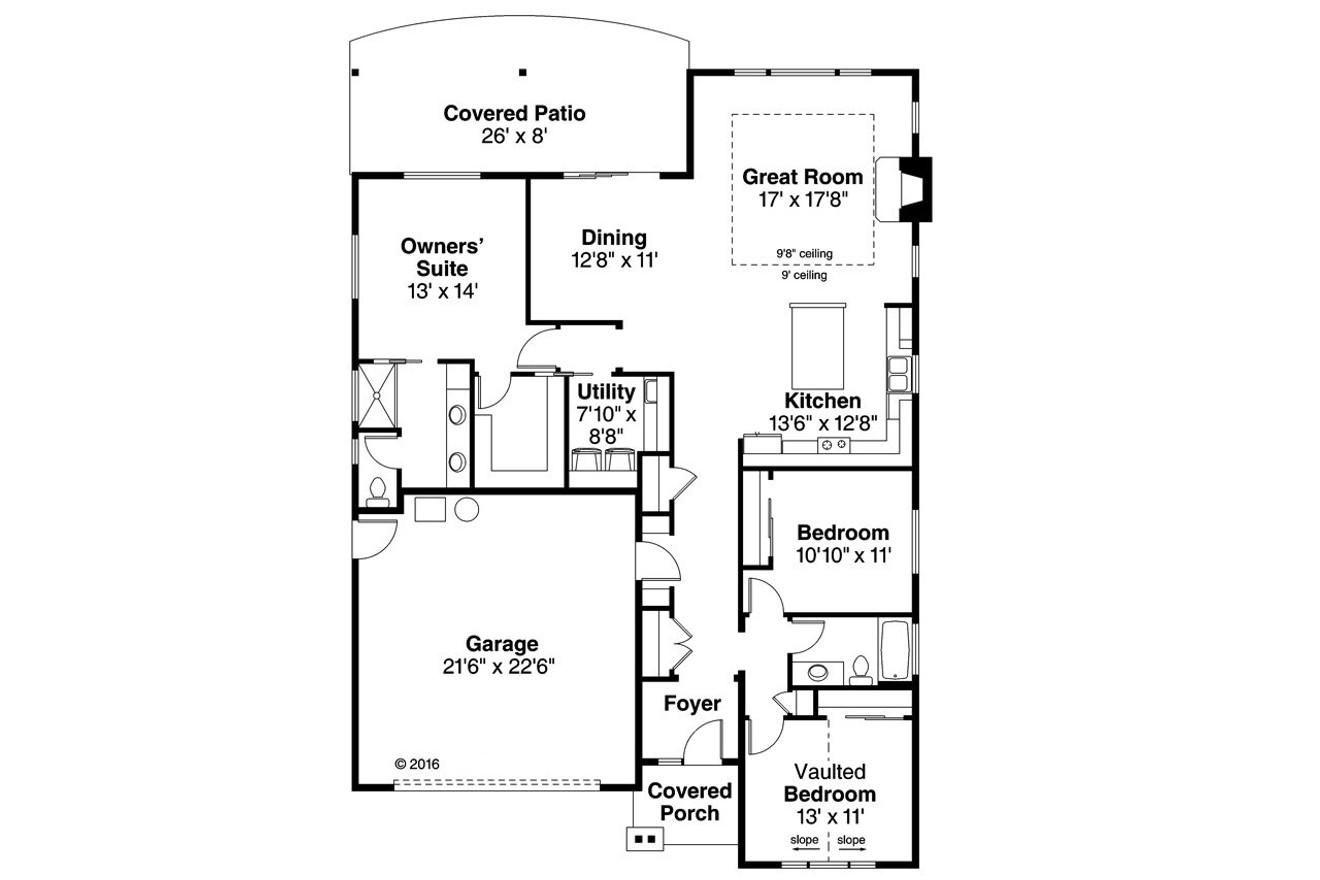

The elegant foyer, with a closet, sitting area, and a dropping point, offers a stunning first look at the home.
Continuing through this one story home plan you will step into the naturally bright Great Room, complete with a beautiful fireplace. The fireplace allows for eco-friendly heating all year long. This spacious area feeds seamlessly into the dining room and kitchen. Manzanita’s fluid, open floor plan allows for easy socialization, making the space perfect for parties. The area also appears and feels larger.
The airy kitchen contains ample counter space, built-in appliances, and a work island rimmed on one side with a flush eating bar. The eating bar is ideal for casual dining or simply enjoying a fresh cup of coffee. For families with children, this is a wonderful area to catch up on homework while eating some snacks.
The dining room opens to the covered patio. The patio acts as an extension to the indoor living spaces. This relaxing area is perfect for lounging while taking in fresh air.
Nearby is the luxurious Owners’ Suite. The Suite has many features of note, including a deep walk-in closet and a private bathroom with an enviable shower and dual vanities.
The utility room contains a built-in washer and dryer set. The attached 2 car garage has pull down attic access for additional storage.
The right side of the floor plan, there are two bedrooms and a shared bathroom. The bathroom boasts a tub and shower combo.
