General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details

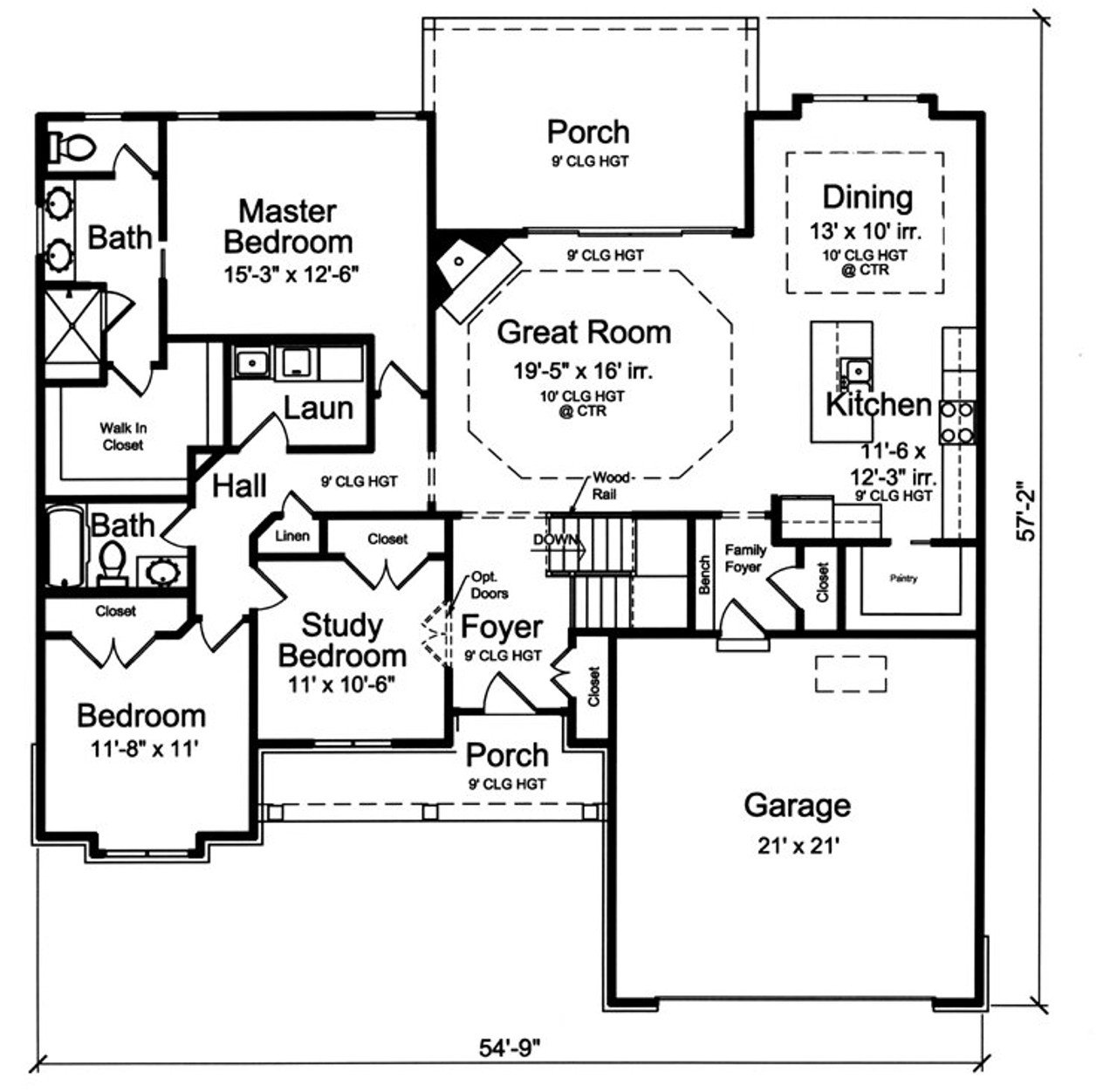

First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
A charming exterior with brick and siding facade and a covered front porch introduces a 3 bedroom one level floor plan that can serve as your forever home or an empty nester. The 10' ceiling heights in the Great Room and Dining Area add volme and dimension. The gas fireplace and triple doors to a covered deck add warmth and atmosphere to the open living area. The 7' island with seating anchors the Kitchen and a large walk-in Pantry offers much storage.
A spacious Family Foyer/Mud Room creates a buffer into the living areas and the location of the Laundry Room is convenient to the bedrooms. The Master Suite offers a double bowl vanity, private commode room, shower enclosure and walk-in clsoet. This home is drawn for a sloped lot with a walk-out basement.
