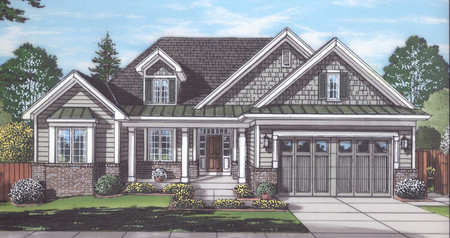

This one level home with split bedrooms, open concept living space, Laundry Room, Mud Room and side-entry garage combine to offer function and family enjoyment. The Kitchen features a pantry and a 7’ island with seating. Windows and access to the covered porch brings light to the Dining Area and a gas fireplace and beamed ceiling decorate the Great Room area. The Master Suite enjoys a large walk-in closet, double bowl vanity and shower. Steps away from the bedrooms is the conveniently located Laundry Room, while the Mud Room offers an orderly buffer as you enter from the garage. 9’ ceilings are featured throughout with the beamed Great Room ceiling reaching 10’. A full basement is standard with this plan offering a stairwell access to the rear yard and a layout for a future bedroom and bath if needed.
Plan 33289
Ormonde
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
1647
Square Feet
-
3
Bedrooms
-
2
Full Baths
-
1
Floors
-
2
Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Contact HPC Experts
Have questions? Help from our plan experts
is just a click away.
To help us answer your questions promptly, please copy and paste the following information in the fields below.
Let’s be social
Connect with us for the latest from HPC
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
a) Designs Loads
b) Concrete
c) Foundations
d) Structural Steel
e) Carpentry
f) Masonry
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details
First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
Information regarding:
a) Floor joists
b) Exterior wall framing
c) Wall heights
d) Insulation
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to Plan Buying?
Ormonde - 33289
Studer Designs
$0.00
- SKU:
- 116 - SRD 740
- Plan Number:
- 33289
- Pricing Set Title:
- A - Under 2,000 sq ft
- Designer Plan Title:
- SRD 740
- Date Added:
- 10/21/2021
- Date Modified:
- 03/18/2024
- Designer:
- studer@studerdesigns.com
- Plan Name:
- Ormonde
- Note Plan Packages: Plans Now:
- PDF Download!
- Family Plan:
- SRD 719
- Structure Type:
- Single Family
- Best Seller (Rank #):
- 1
- Square Footage: Total Living:
- 1647
- Square Footage: Basement:
- 1647
- Square Footage: Garage:
- 446
- Square Footage: 1st Floor:
- 1647
- Square Footage: Porch:
- 90
- Square Footage: Total Under Roof:
- 1880
- Square Footage: Rear Covered Porch:
- 143
- Floors:
- 1
- FLOORS_filter:
- 1
- Bedrooms:
- 3
- BEDROOMS_filter:
- 3
- Baths Full:
- 2
- FULL BATHROOMS_filter:
- 2
- Ridge Height:
- 22'8"
- Overall Exterior Depth:
- 56.4
- Overall Exterior Width:
- 65.10
- Main Floor Ceiling Height:
- 9'1"
- Available Foundations:
- Basement
- Default Foundation:
- Basement
- Available Walls:
- 2x4 Wood Frame
- Default Wall:
- 2x4 Wood Frame
- Ext Wall Material:
- Siding & Stone
- Lot Type:
- Corner Lot
- Lot Slope:
- Level Lot
- Roof Framing:
- Truss
- Snow Roof Load:
- 47.00
- Roof Pitch:
- 8/12
- Primary Style:
- Farmhouse
- Secondary Styles:
- Craftsman
- Secondary Styles:
- Traditional
- Collections:
- Builder House Plans
- Master Suite Features:
- Main Floor Master Suite
- Master Suite Features:
- Separate From Other Bedrooms
- Master Suite Features:
- Shower Only
- Master Suite Features:
- Walk In Closet
- Interior Features:
- Casual or Open Style Living Room
- Interior Features:
- Fireplace/Wood Stove
- Interior Features:
- Great Room
- Kitchen Features:
- Breakfast Nook/Dining Area
- Kitchen Features:
- Eating Bar or Peninsula
- Kitchen Features:
- Kitchen Island
- Kitchen Features:
- Walk-In or Wall Pantry
- Utility Room Features:
- Close to Bedrooms
- Utility Room Features:
- Main Floor Utility Room
- Utility Room Features:
- Mudroom or Mudhall
- Garage Type:
- Attached
- Garage Orientation:
- Side Entry
- Garage Bays Min:
- 2
- Garage Bays Max:
- 2
- GARAGE BAYS_filter:
- 2
- Exterior & Porch Features:
- Covered Patio
- Exterior & Porch Features:
- Covered Porch
- Styles:
- Craftsman House Plans
- Styles:
- Traditional House Plans
- Product Rank:
- 6974
- Collections:
- Plans Now
- Collections:
- 1 Story House Plans
- Collections:
- 3 Bedroom House Plans
- Collections:
- Small House Plans
- Styles:
- Farmhouse Plans
- Creation Date:
- 08/2021
- Plan SKU:
- SRD 740
- Max Price:
- 1500.00
- Min Price:
- 720.00
This plan can be modified by Studer providing an alternate foundation, front entry garage or 2 x 6 exterior wall options or other miscellaneous customizations. Please contact Studer for quote on modifications.

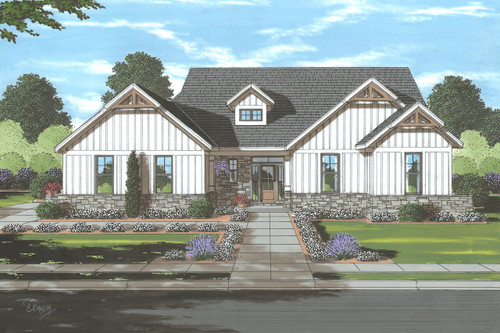

TAKE A LOOK AT THESE OTHER PLAN VERSIONS
