The depth of this house includes the covered rear porch.
General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details
First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?

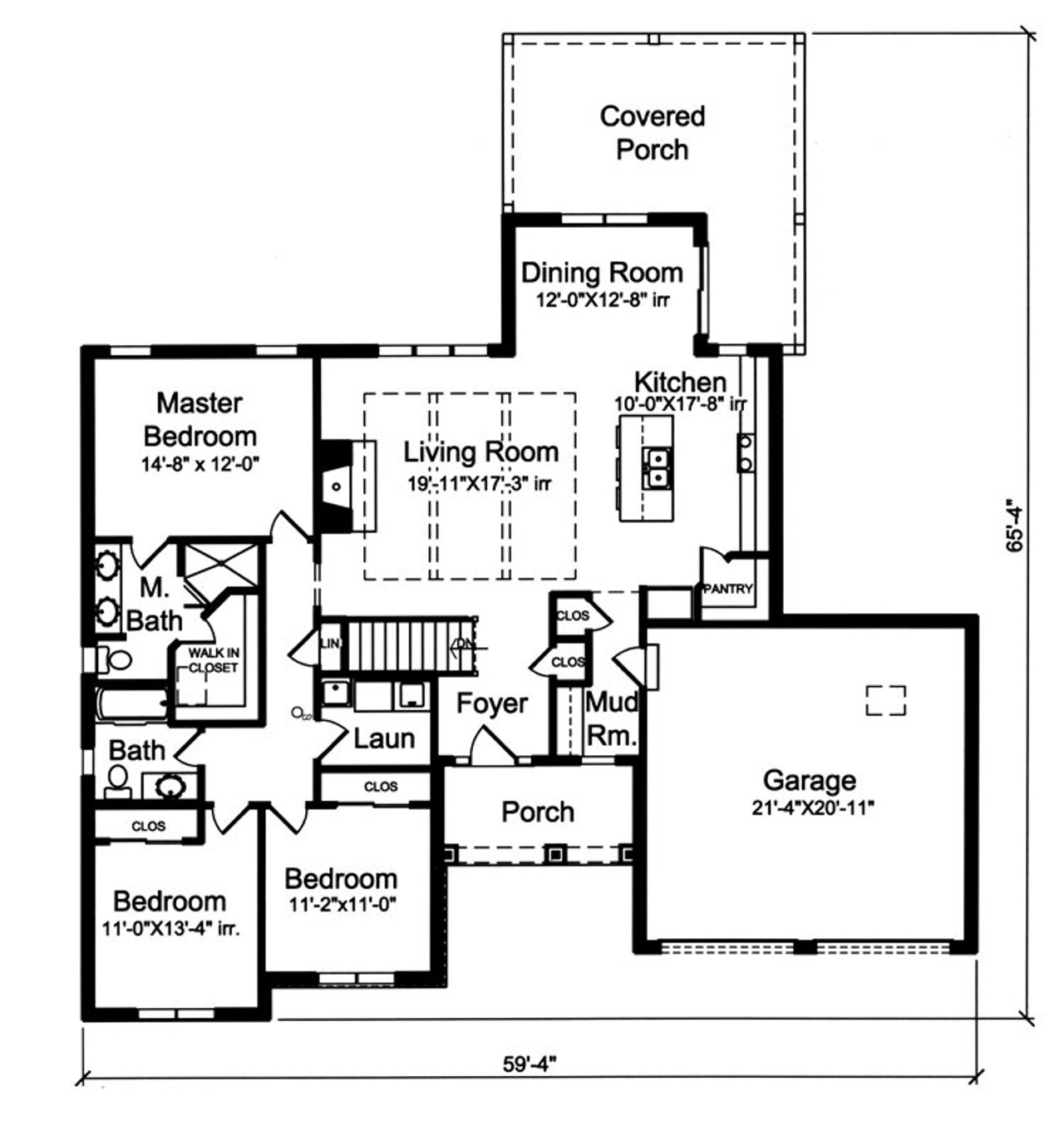

The Craftsman exterior design of this home showcases a brick, stone and siding facade providing color and texture for a beautiful curb appeal. The one level design suggests step saving convenience and the open floor plan creates large spaces for family activities. The 7' island with seating defines the Kitchen and the offset Dining Room can function for casual or more formal dining and accesses the rear porch for extended outdoor enjoyment. A gas fireplace and a 10' beamed ceiling height decorate the Great Room. Of special note is the Mud Room which serves for a tidy drop zone for mail and miscellaneous items as you enter the home.
The Master Bedroom pampers the homeowner with a double bowl vanity, oversized shower and walk-in closet. Two additional bedrooms and a laundry room conveniently located near the bedrooms complete the first floor. A full basement comes with this plan, offering additional living space if needed.
