Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to plan buying?
New Haven, a spectacular two-story house plan, radiates Cape Cod charm. This welcoming and relaxing design is perfect as a vacation home plan and is designed to accommodate a sloped lot. Its facade is flanked with beautiful stone veneers. Weathered details are also seen, including shake texture siding and composition shingles. These natural materials juxtaposed beautifully with the home’s more traditional aspects. The covered porch protects guests from any kind of weather and is large enough to be furnished with outdoor seating. This is a perfect spot to enjoy a cup of coffee and take in the morning air. From the porch, you are given a gorgeous view.
New Haven’s interior is casual and cozy. The layout is thoughtfully designed, with families in mind.

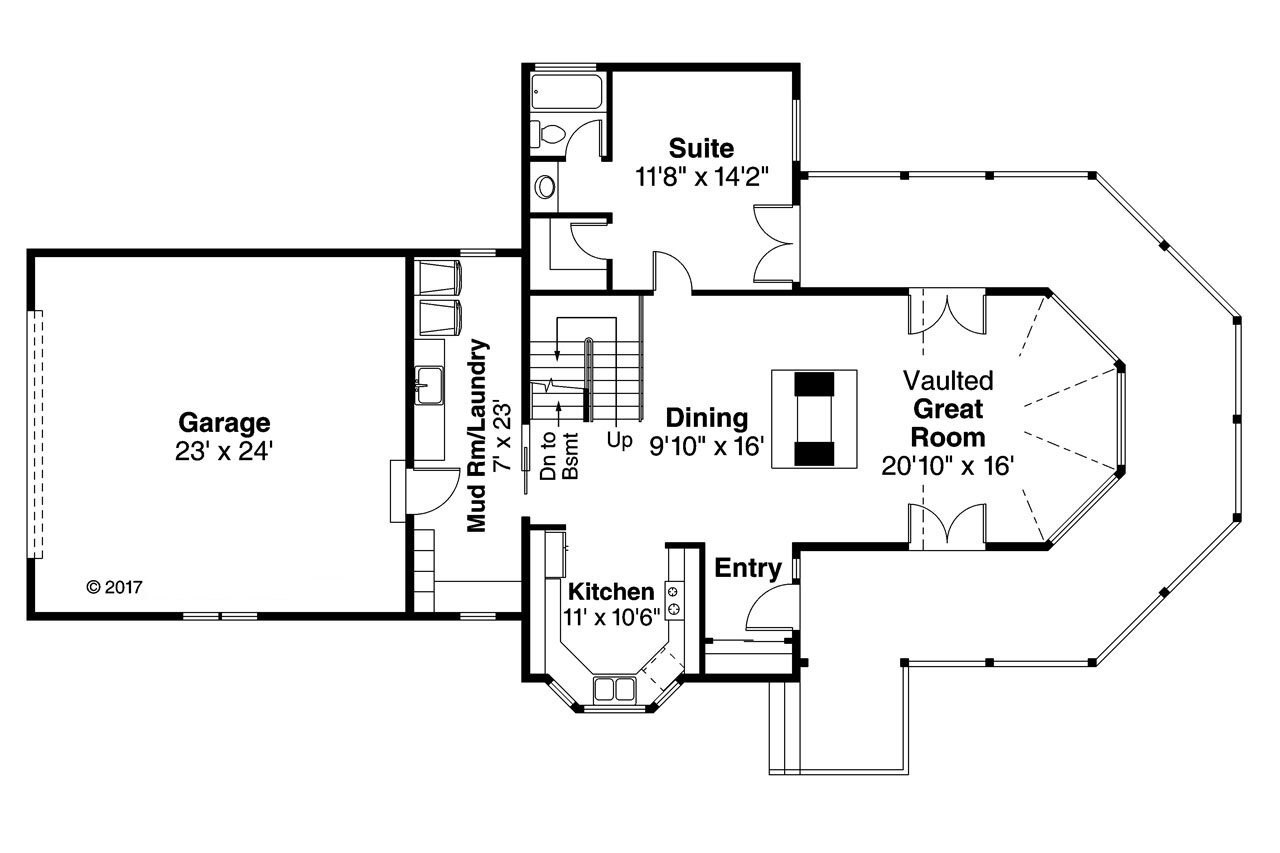

Stepping through the entryway, you will enter the stunning vaulted Great Room, complete with a double-sided fireplace. The fireplace is sure to be a central gathering space during cooler months. The Great Room feeds seamlessly into the dining room and kitchen. New Haven’s open floor plan gives a sense of unity and fluidity to the home. Those in the Great Room or dining room can easily interact with those in the kitchen.
The bright, airy kitchen contains ample counter space and built-in appliances. Work surfaces and storage areas are also generously supplied.
One bedroom can be found on the first floor. The bedroom has an impressive walk-in closet and a private bathroom, with a tub and shower combo. French doors provide private access to the wrap-around deck.
The mudroom has a washer and dryer set, as well as a bench and cubbies. This room opens to the attached 2 car garage. The area can also be used for added storage.

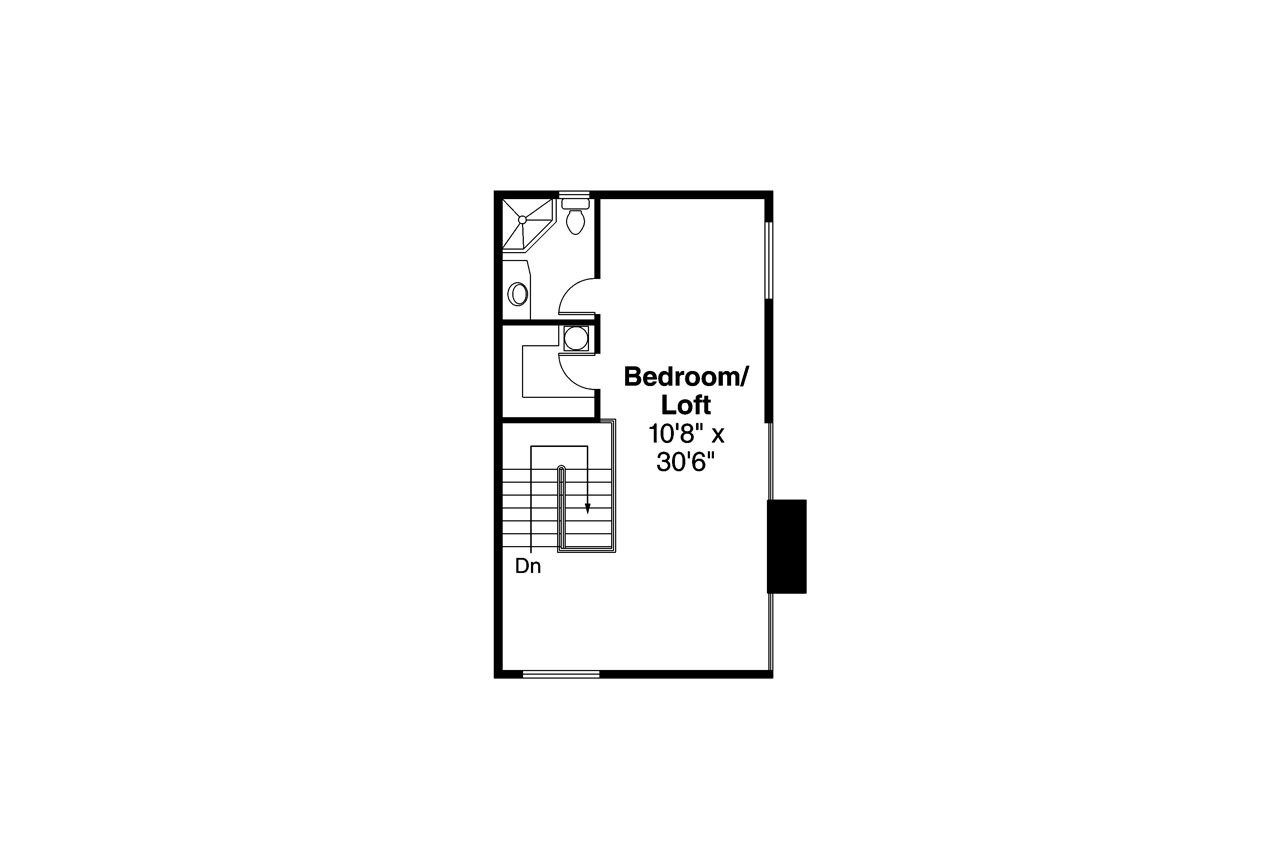

Upstairs there is another bedroom with an enviable walk-in closet and a private bathroom, with a deep shower.
The unfinished daylight basement can be furnished to meet the desire of the owners. The covered patio offers another space for parties, especially during the Spring and Summer months.
