Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
The Celeste is a charming country cabin plan that is equally at home on property with a view or a small urban lot. A covered porch wraps around two sides of the home allowing the outdoors to be enjoyed year round.
The entrance is on the side of the home and opens into an airlock. A coat closet is to the left and the door on the other side of the foyer opens to a hallway. Immediately to the left is a bathroom that also has the washer and dryer. Straight ahead is a door to one of the two bedrooms in the Celeste.
Turning right down the adjoining hallway leads you pass the basement stair access and then the floor plan opens up to the great room. The dine-in kitchen has counter space running along two walls and provides plenty of cabinet storage. The kitchen is open to the living room which is naturally bright from the large picture window and tall ceilings.
Along the back of the living room another set of stairs winds up to the second floor.

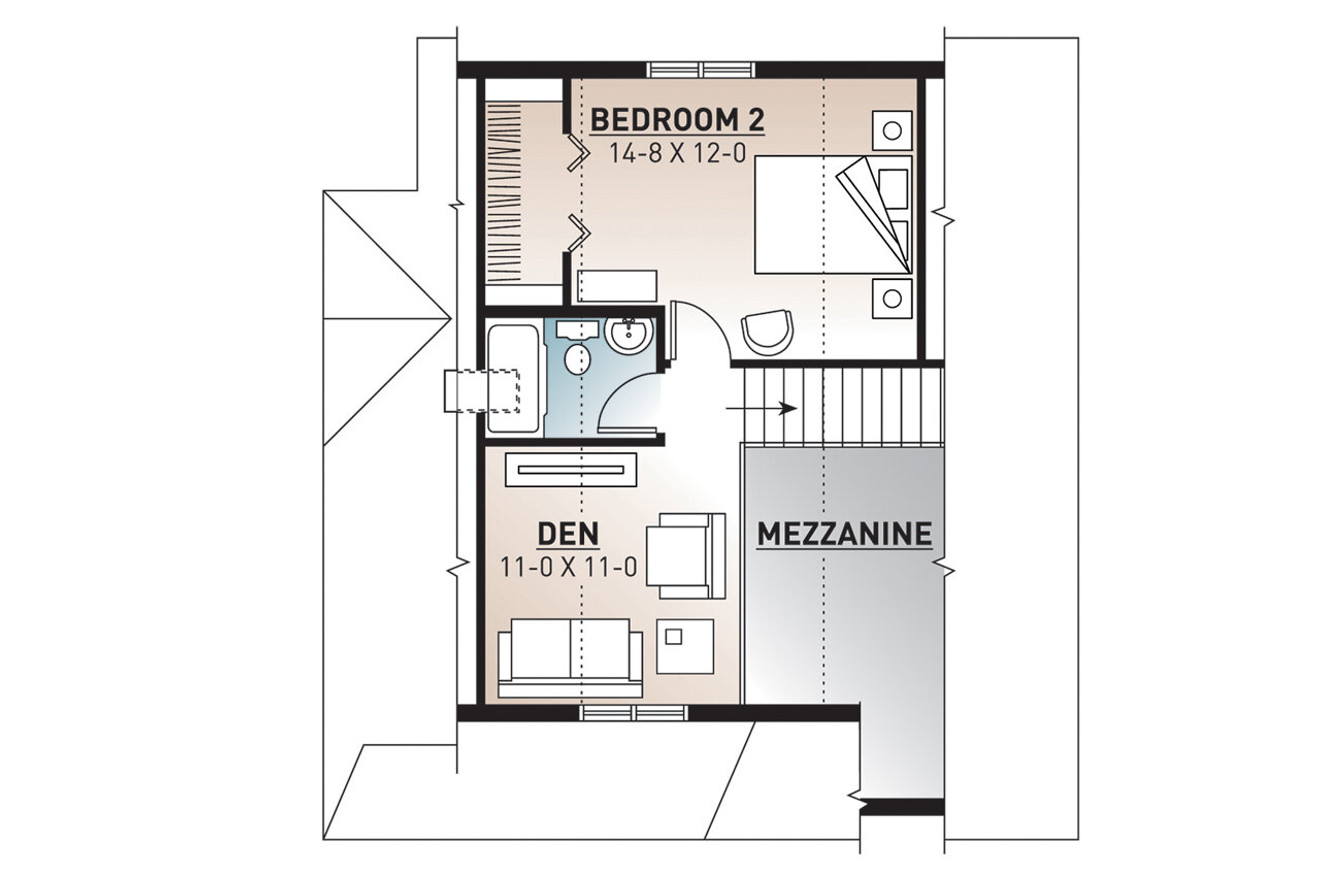

This two story house plan has a den at the top of the stairs that overlooks the living room below. This space could be furnished as a study, home office or hobby room. Also on the second floor is a full bathroom plus the second bedroom. This is the larger of the two bedrooms and could serve as a master bedroom.
The Celeste is a narrow lot home plan that would be ideal for a property with a view along the front. The large picture window in the living room combined with the cozy covered front porch make for ideal places to enjoy the scenery and watch the world go by.
