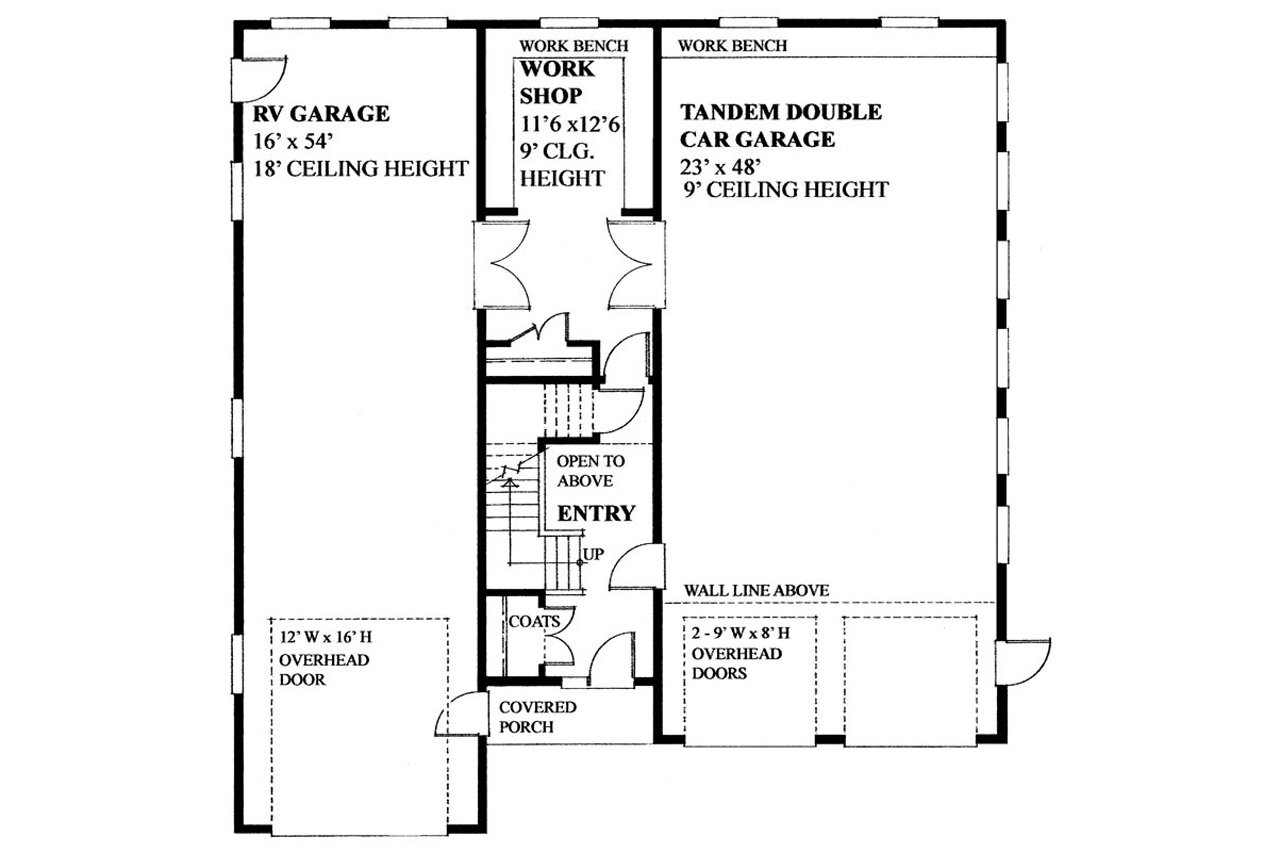

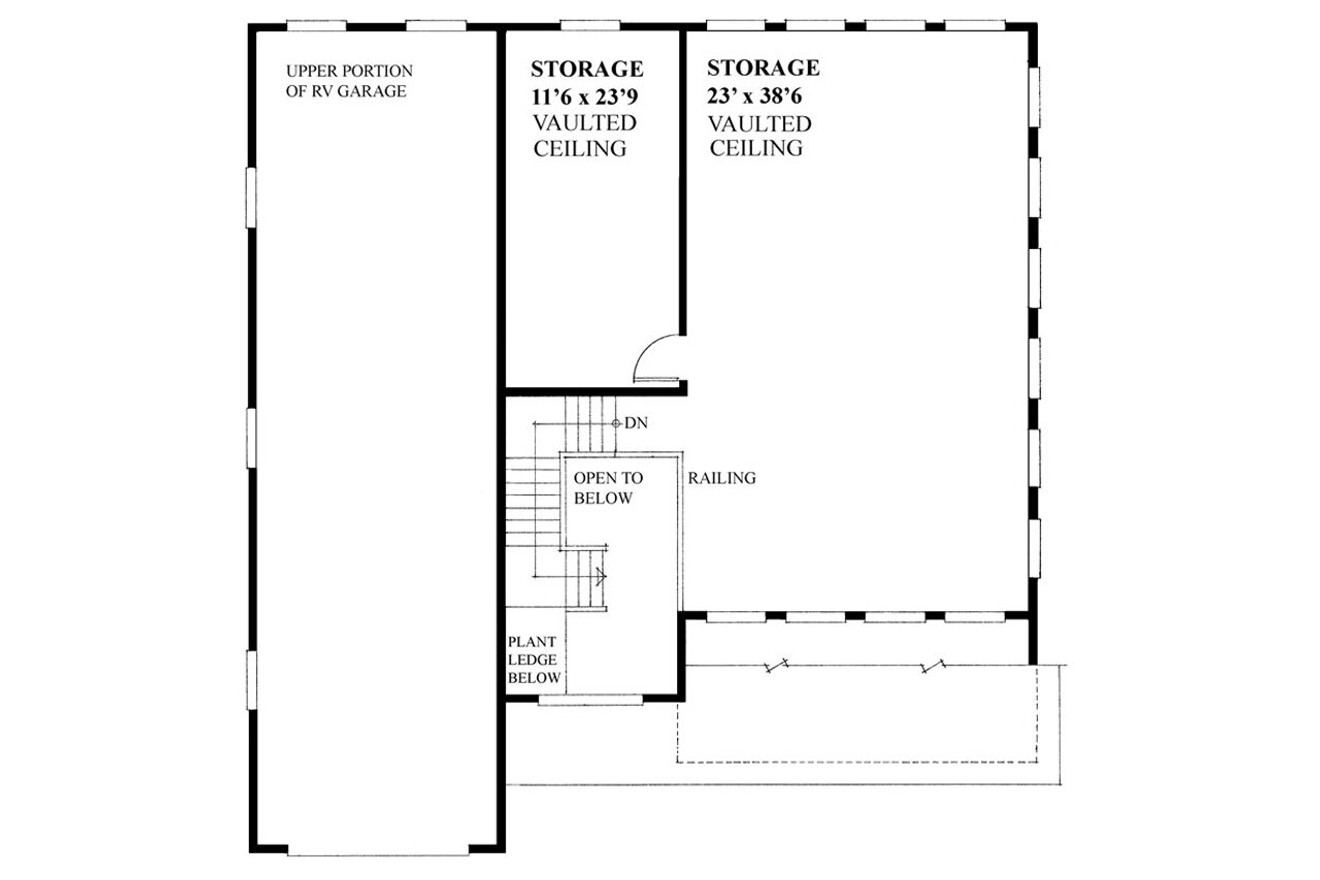

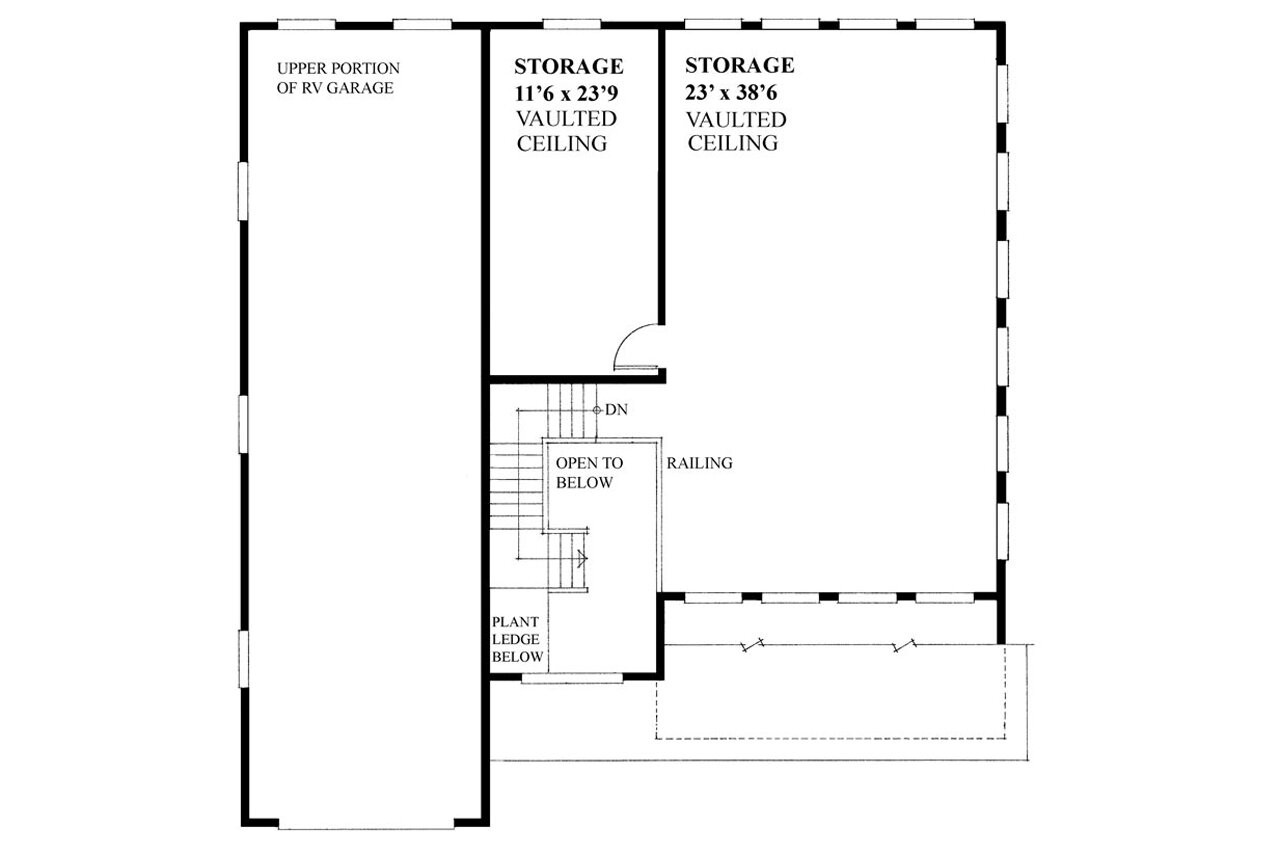

The RV garage portion of this modern garage has an eighteen-foot-high ceiling accessed through a sixteen-foot-high by twelve-foot-wide overhead door. The double car garage has a nine-foot-high ceiling with two eight-foot-high by nine-foot-wide overhead doors. The covered porch opens into the vaulted entry with direct access to the workshop. The workshop provides easy access to both the RV and double car garage areas. The vaulted second level is a blank canvas ready to be transformed into a future apartment, exercise room or private home office.
Plan 63688
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
- 3909 Square Feet
- 2 Floors
- 3 - 6 Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Cover sheet with rendering and art floor plans.
General notes and specifications.
Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″.
Foundation plan at 1/4″=1′-0″. (Some plans have foundation options, client to specify at time of order.)
Main floor plan at 1/4″=1′-0″.
Second floor plan at 1/4″=1′-0″, if applicable.
Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs.
Electrical floor plans.
Minimum of two cross sections at 1/4″=1′-0″.
Details as required.
All four elevations at 1/4″=1′-0″.
Generic detail sheet.
Plans are engineered by a structural engineer, but not stamped or sealed.
Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf)Floor live load 40 psf.
Balcony live load 60 psf and dead load 10 psf for total design load of 70 psf.
Assumed soil bearing capacity 1560 psf.
Electrical fixtures / switches / smoke alarms by location only on floor plans.
Plumbing fixtures by location only on floor plans.
Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.
Items not included with plans:
Interior cabinet elevations.
Window schedules.
Situations beyond the scope of these drawings and issues which can be handled locally:
Unusual site conditions, High wind speeds. Seismic, shear walls, holddowns, nailing patterns and Local Energy Code compliance.
New to Plan Buying?
63688
Regan Swallow
$0.00
- SKU:
- 126 - Plan 3909
- Plan Number:
- 63688
- Pricing Set Title:
- Plan 3909
- Designer Plan Title:
- Plan 3909
- Date Added:
- 05/30/2019
- Date Modified:
- 01/31/2024
- Designer:
- homes@reganswallowdesign.com
- Family Plan:
- Plan 3681
- Structure Type:
- Garage
- Best Seller (Rank #):
- 10000
- Square Footage: Total Living:
- 3909
- Square Footage: Garage:
- 1176
- Square Footage: 1st Floor:
- 2629
- Square Footage: 2nd Floor:
- 1280
- Square Footage: Porch:
- 46
- Square Footage: RV Garage:
- 935
- Square Footage: Workshop:
- 285
- Floors:
- 2
- FLOORS_filter:
- 2
- Ridge Height:
- 29'6"
- Overall Exterior Depth:
- 55
- Overall Exterior Width:
- 52.6
- Main Floor Ceiling Height:
- 9'
- Second Floor Ceiling Height:
- 8'
- Available Foundations:
- Concrete Slab
- Default Foundation:
- Concrete Slab
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Siding
- Lot Slope:
- Level Lot
- Roof Framing:
- Truss
- Snow Roof Load:
- 32.00
- Roof Pitch:
- 12/12
- Primary Style:
- Traditional
- Secondary Styles:
- Craftsman
- Garage Bays Min:
- 3
- Garage Bays Max:
- 6
- GARAGE BAYS_filter:
- 3
- Garage Features:
- RV Garage
- Garage Features:
- Storage
- Garage Features:
- Workshop or Workbench
- Exterior & Porch Features:
- Covered Porch
- Styles:
- Traditional House Plans
- Styles:
- Craftsman House Plans
- Collections:
- 2 Story House Plans
- Collections:
- Garage, Garage w/Living, Carports
- Product Rank:
- 3898
- Plan SKU:
- Plan 3909
- Max Price:
- 745.00
- Min Price:
- 745.00
Roof Construction: Combination I-Joist & Trusses
