Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.

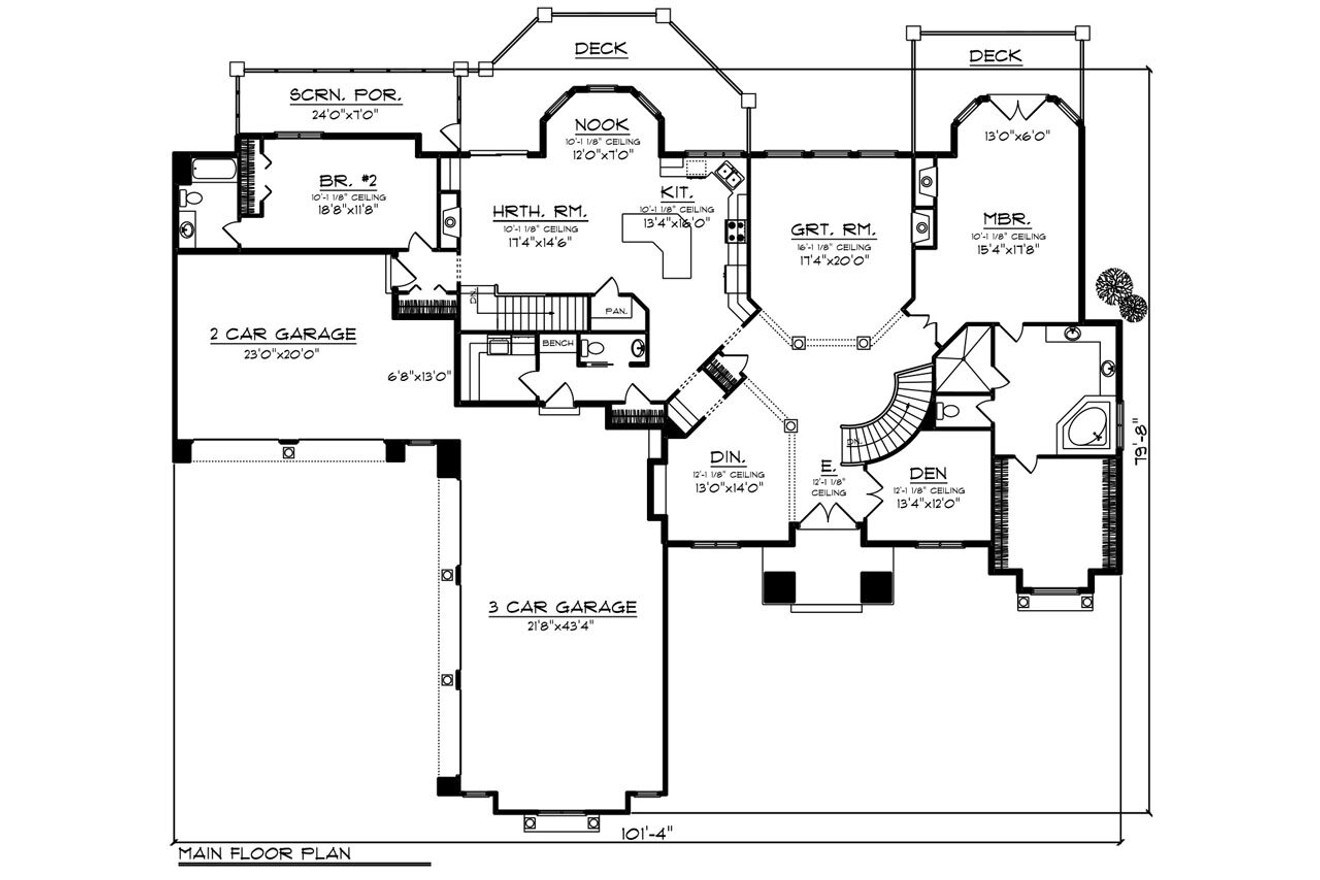

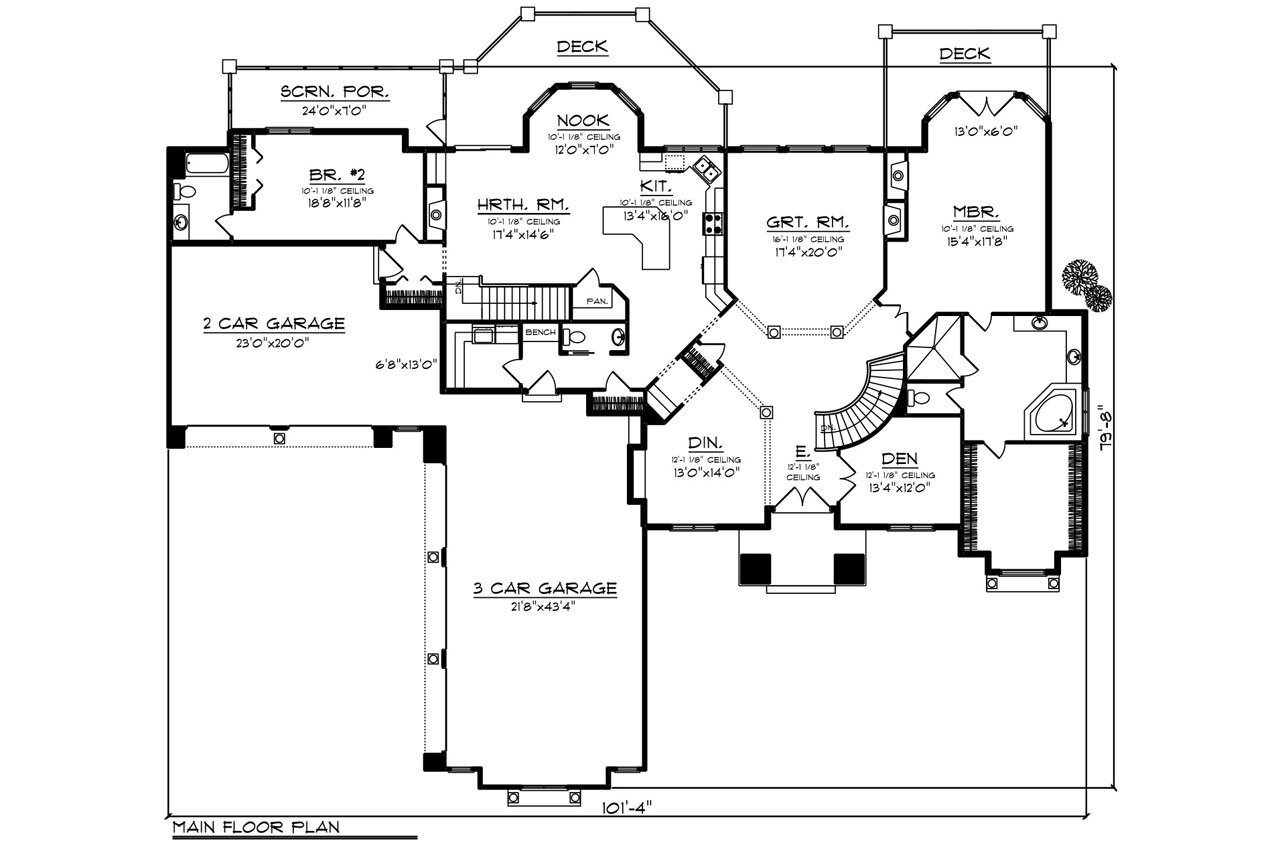

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.

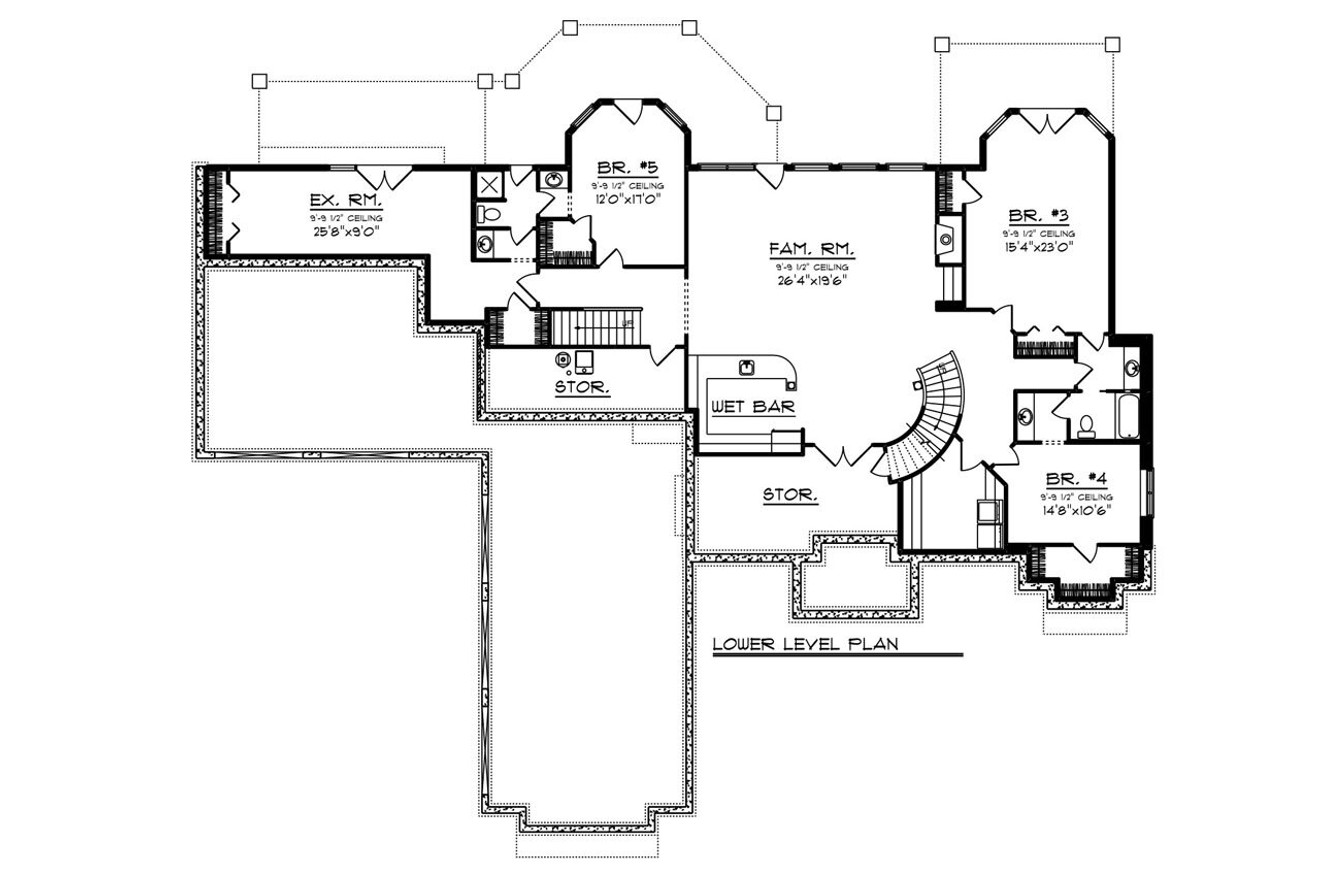

This Tuscan-style house plan if full of extra amenities, starting with the curved staircase leading to the lower level to the right of the foyer. On the left is the dining room and continuing forward is the great room both are defined by beautiful columns that flow into the main living area of the home. The kitchen, hearth room and nook flow together into an open concept floor plan and creates a large living area that accesses the great room. Double French doors open into a large master suite with a fireplace, private deck, spacious walk-in closet, and Jacuzzi tub. Tucked behind the garage, is a second bedroom with its own private bathroom. The staircase flows to the finished daylight basement with two additional bedrooms that share a Jack-n-Jill bathroom, a large family room with a wet bar, exercise room, and a fifth bedroom with a private bath.
