Dining Room, Den Ceiling: 12'
Great Room Ceiling: 16'
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.

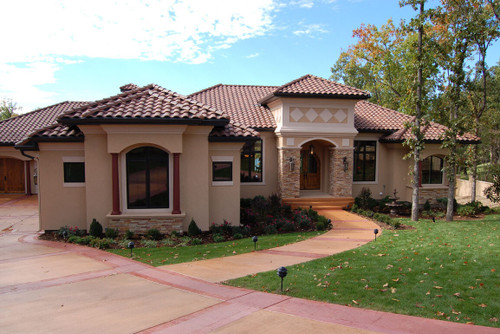

Tuscan in design, this ranch features a traditional plan with extra details that are sure to please, beginning with a curved staircase leading to the second floor just to the right of the entry. The great room directly ahead, and the dining room to the left of the entry are both defined by gracious columns that carry you into the main living area of the home. The kitchen, hearth room, and nook are combined into an open floor plan concept to create a large daily living area while still having access to the great room. A spacious master suite includes double French doors that lead to a private deck, Jacuzzi tub, and spacious walk-in closet. A second bedroom is tucked behind the garage and has a private bath. A five-stall, split-load garage provides ample parking and storage space.
