Plan 95834
Weymouth
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
- 4892 Square Feet
- 9 Bedrooms
- 6 Full Baths
- 2 Floors
- 3 - 6 Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

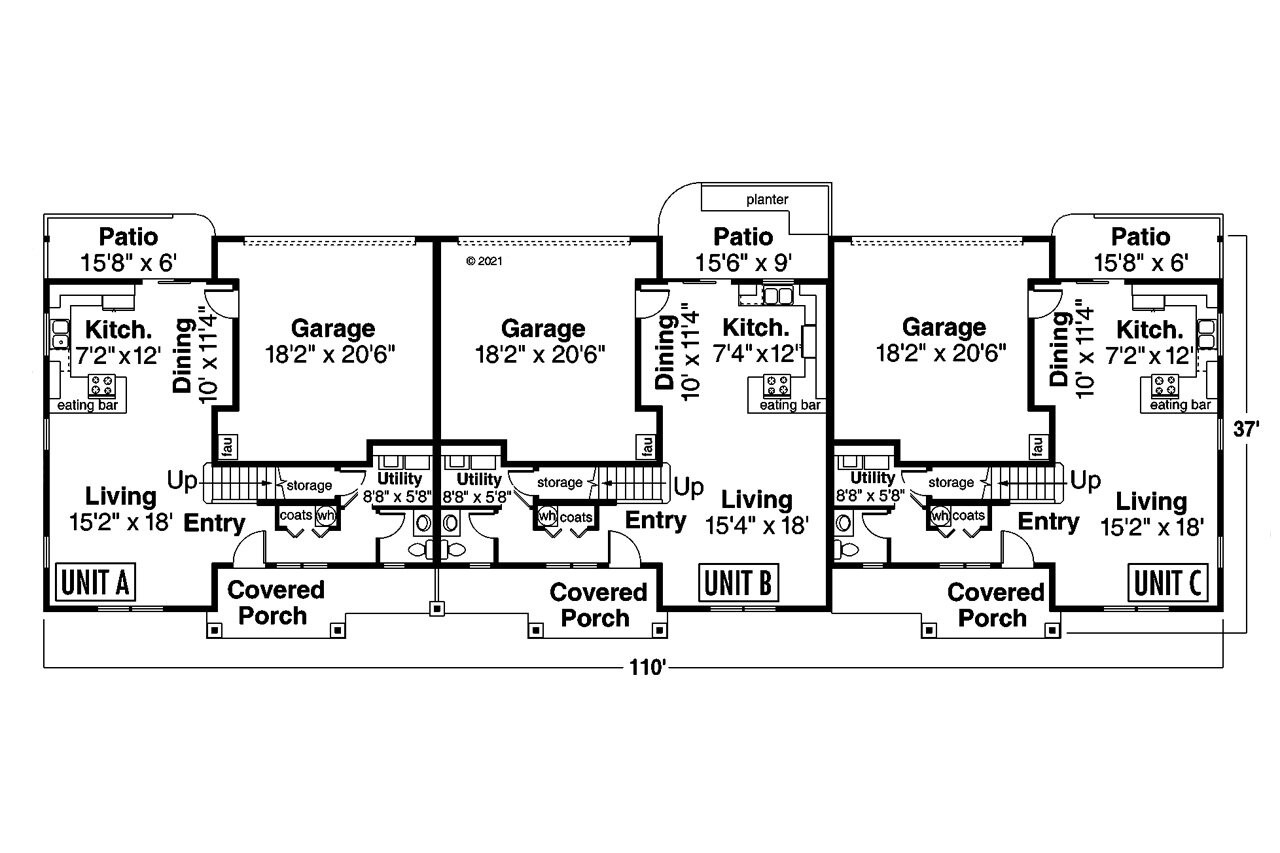

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Concept Plan Packages:
Includes PDF and DWG files of the:
Elevations
Floor Plan (s)
Roof Outline
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to Plan Buying?
Weymouth - 95834
Associated Designs
$2,100.00
- SKU:
- 101 - 60-058
- Plan Number:
- 95834
- Pricing Set Title:
- Duplex L [4500 – 4999]
- Designer Plan Title:
- 60-058
- Date Added:
- 11/08/2021
- Date Modified:
- 02/19/2024
- Designer:
- info@associateddesigns.com; jessica@associateddesigns.com
- Plan Name:
- Weymouth
- Note Plan Packages: PDF Print Package:
- Best Value!
- Family Plan:
- 60-059
- Structure Type:
- Multifamily/Duplex
- Best Seller (Rank #):
- 10000
- Square Footage: Total Living:
- 4892
- Square Footage: Garage:
- 1184
- Square Footage: 1st Floor:
- 2233
- Square Footage: 2nd Floor:
- 2659
- Floors:
- 2
- FLOORS_filter:
- 2
- Bedrooms:
- 9
- BEDROOMS_filter:
- 5+
- Baths Full:
- 6
- FULL BATHROOMS_filter:
- 5+
- Baths Half:
- 3
- HALF BATHROOMS_filter:
- 3
- Ridge Height:
- 26'9"
- Overall Exterior Depth:
- 37
- Overall Exterior Width:
- 101
- Main Floor Ceiling Height:
- 9'
- Second Floor Ceiling Height:
- 8'
- Available Foundations:
- Crawl Space
- Default Foundation:
- Crawl Space
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Siding, Stone, Shingles
- Lot Slope:
- Level Lot
- Roof Framing:
- Combination Stick/Truss
- Snow Roof Load:
- 20.00
- Roof Pitch:
- 7/12
- Primary Style:
- Craftsman
- Secondary Styles:
- Country
- Secondary Styles:
- Traditional
- Collections:
- Builder House Plans
- Master Suite Features:
- Second Floor Master Suite
- Master Suite Features:
- Shower Only
- Master Suite Features:
- Walk-In Shower
- Interior Features:
- Great Room
- Interior Features:
- Loft
- Interior Features:
- Storage
- Kitchen Features:
- Breakfast Nook/Dining Area
- Kitchen Features:
- Eating Bar or Peninsula
- Utility Room Features:
- Close to Kitchen or Garage
- Utility Room Features:
- Main Floor Utility Room
- Garage Type:
- Attached
- Garage Orientation:
- Rear Entry
- Garage Bays Min:
- 3
- Garage Bays Max:
- 6
- GARAGE BAYS_filter:
- 3
- Exterior & Porch Features:
- Covered Patio
- Exterior & Porch Features:
- Covered Porch
- U0_Unit A Basic Details_BEDROOMS:
- 3
- U0_Unit A Basic Details_FULL BATHS:
- 2
- U0_Unit A Basic Details_HALF BATHS:
- 1
- U0_Unit A Basic Details_FLOORS:
- 2
- U0_Unit A Basic Details_GARAGE:
- 2 car
- U0_Unit A Basic Details_LIVING SQ FT:
- 1631
- U0_Unit A Basic Details_GARAGE SQ FT:
- 395
- U0_Unit A Basic Details_1ST FLOOR SQ FT:
- 744
- U0_Unit A Basic Details_2ND FLOOR SQ FT:
- 887
- U1_Unit B Basic Details_BEDROOMS:
- 3
- U1_Unit B Basic Details_FULL BATHS:
- 2
- U1_Unit B Basic Details_HALF BATHS:
- 1
- U1_Unit B Basic Details_FLOORS:
- 2
- U1_Unit B Basic Details_GARAGE:
- 2 car
- U1_Unit B Basic Details_LIVING SQ FT:
- 1630
- U1_Unit B Basic Details_GARAGE SQ FT:
- 395
- U1_Unit B Basic Details_1ST FLOOR SQ FT:
- 745
- U1_Unit B Basic Details_2ND FLOOR SQ FT:
- 885
- U2_Unit C Basic Details_BEDROOMS:
- 3
- U2_Unit C Basic Details_FULL BATHS:
- 2
- U2_Unit C Basic Details_HALF BATHS:
- 1
- U2_Unit C Basic Details_FLOORS:
- 2
- U2_Unit C Basic Details_GARAGE:
- 2 car
- U2_Unit C Basic Details_LIVING SQ FT:
- 1631
- U2_Unit C Basic Details_GARAGE SQ FT:
- 394
- U2_Unit C Basic Details_1ST FLOOR SQ FT:
- 744
- U2_Unit C Basic Details_2ND FLOOR SQ FT:
- 887
- Styles:
- Craftsman House Plans
- Styles:
- Country House Plans
- Styles:
- Traditional House Plans
- Collections:
- 2 Story House Plans
- Collections:
- 5 or More Bedroom House Plans
- Collections:
- Duplex or Multi-Family Plans
- Product Rank:
- 6105
- Creation Date:
- 11/2021
- Plan SKU:
- 60-058
- Note Plan Packages: Master Builder CAD Set:
- Unlimited Builds!
- Max Price:
- 6475.00
- Min Price:
- 2100.00
- Regions:
- Northwest House Plans/Oregon Home Plans
