Additional Ceiling Heights:
Entry, Great Room, Kitchen: Vaulted
Bedroom #2: Cathedral
Master Bedroom: 11' Step
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
New to plan buying?

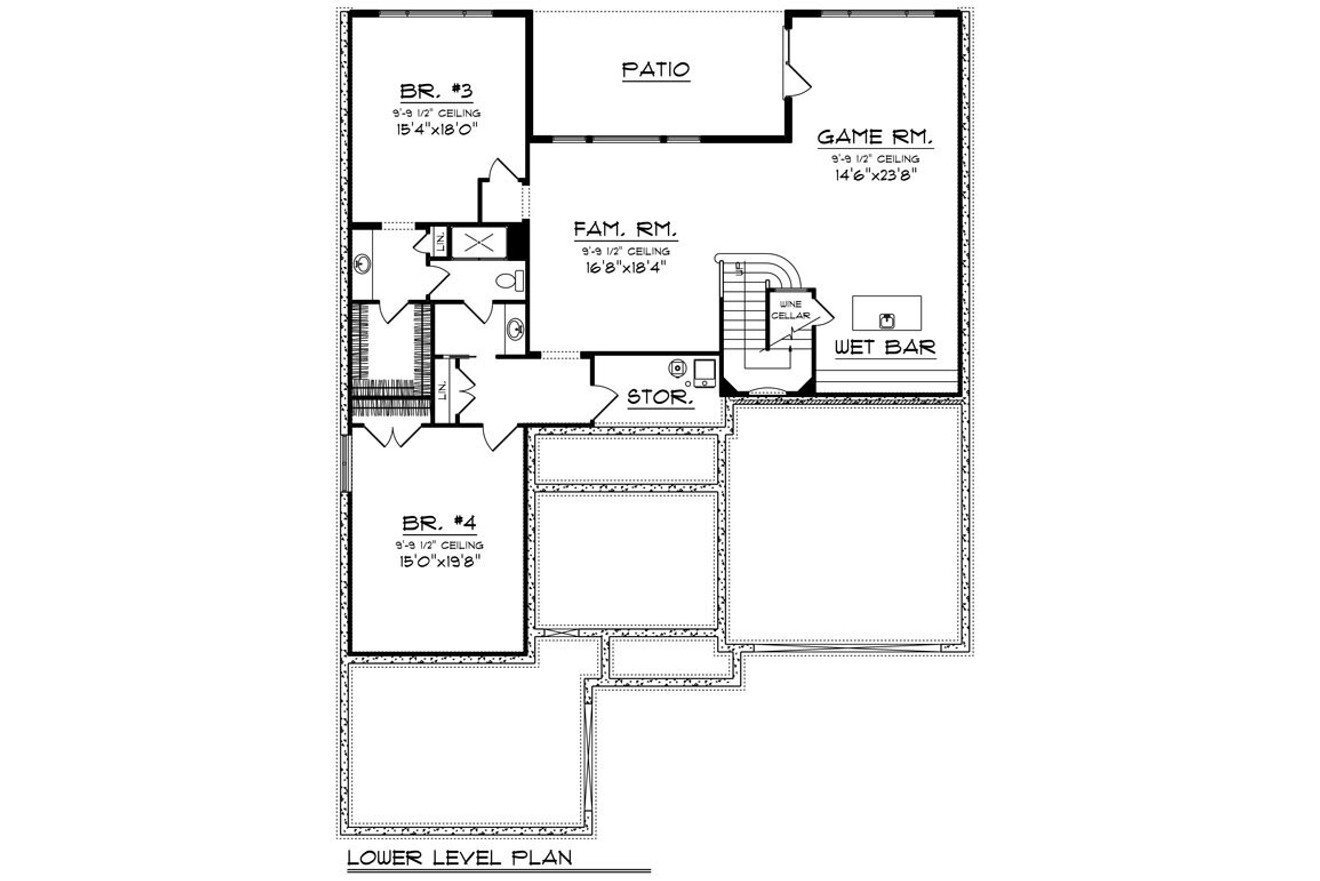

This home plan is a modern day design meets the classic feel of a Tuscan villa. Natural light flows in beamed vaulted ceilings in the living area. The kitchen and dining room flow together with the living area which creates a comfortable living area with ample room for entertaining. The master suite is at the back of the home and features a large walk-in closet, a walk-in shower dual vanity, private toilet and access to the covered rear patio. Bedroom two is located in front of the master suite and both share access to the laundry room that is between. The sunroom located off the dining room can also access the covered rear porch. The finished daylight basement features a family room, game room with a wet bar, wine cellar, and two additional bedrooms that share a Jack-n-Jill bathroom.
