Vaulted Ceilings: Entry, Great Room, Dining Room, Kitchen
Cathedral Ceiling: Bedroom #2
11' Step Ceiling: Master Bedroom
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
New to plan buying?

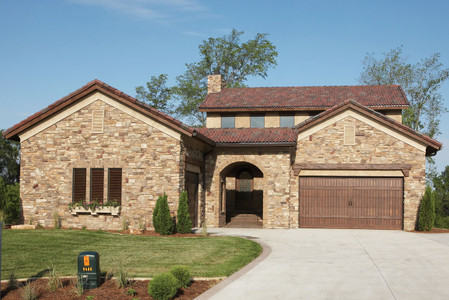

Inspired by the timeless feel of a Tuscan villa, this home is a modern take on a plan of yesterday. Heavily beamed vaulted ceilings allow natural light to warm the entire living area. The kitchen flows seamlessly into the dining and living rooms creating a comfortable living space that’s large enough for family gatherings. The master suite lies to the back of the home and includes a spacious walk-in closet and dual sinks. The second bedroom is found directly in front of the master with laundry access shared by both rooms in between. Both the master suite and the sunroom off the kitchen access a covered porch off the back of the home. A three-stall, split-load garage completes the home.
