Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to plan buying?
An idyllic combination of horizontal and vertical lines graced with stone accents creates an eye-catching exterior to the St. Arnaud 2, a farmhouse plan. A soldier row of columns line the front covered porch.

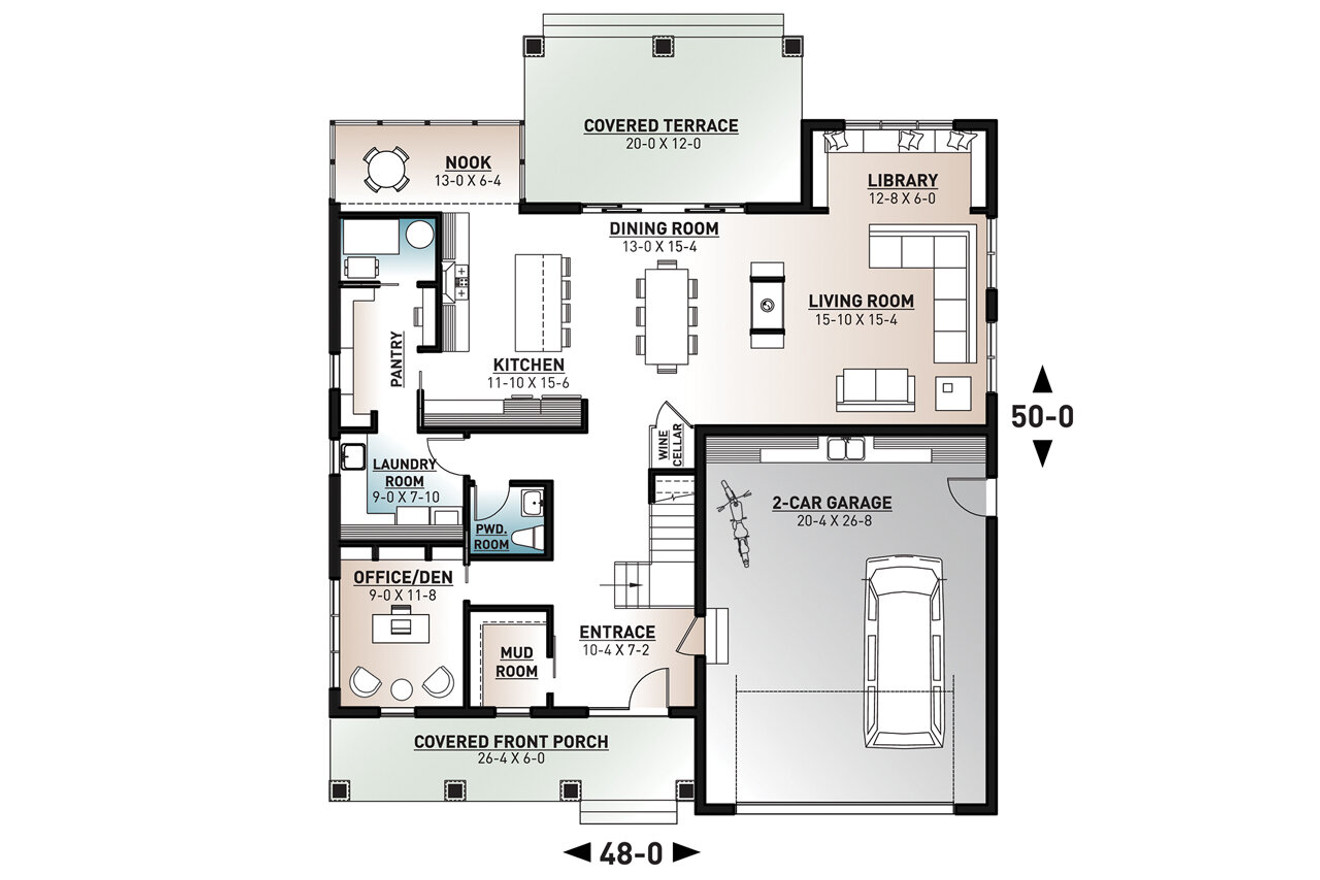

Stepping through the front door to the spacious entrance a mud room is located to the left. An L-shaped staircase is straight ahead along with a central passage. A hallway in line with the staircase leads to the home office/den. This space could also be furnished as a study or hobby room if the office is not needed. Straight ahead of the entrance the hallway opens to the large great room that fills the back of the home.
The right side of the living room is filled with a naturally bright living room with a bay that could be used as a library or extension of the informal living room. A two sided fireplace provides some separation between the dining room and living room. A double set of sliding glass doors extends the dining room to the covered terrace. Continuing through the dining room, the kitchen is large and luxurious. Fully equipped with modern appliances the kitchen also boasts an island with eating bar and an envious walk-in pantry. Off the back of the kitchen is a nook which feels like a sunroom from all of the windows.
The laundry room is nearby and filled with additional cabinet storage along with a powder bathroom.
Back towards the entrance a service door to the right leads to the attached two car garage. The garage even has a work bench, complete with sink and cabinet storage.

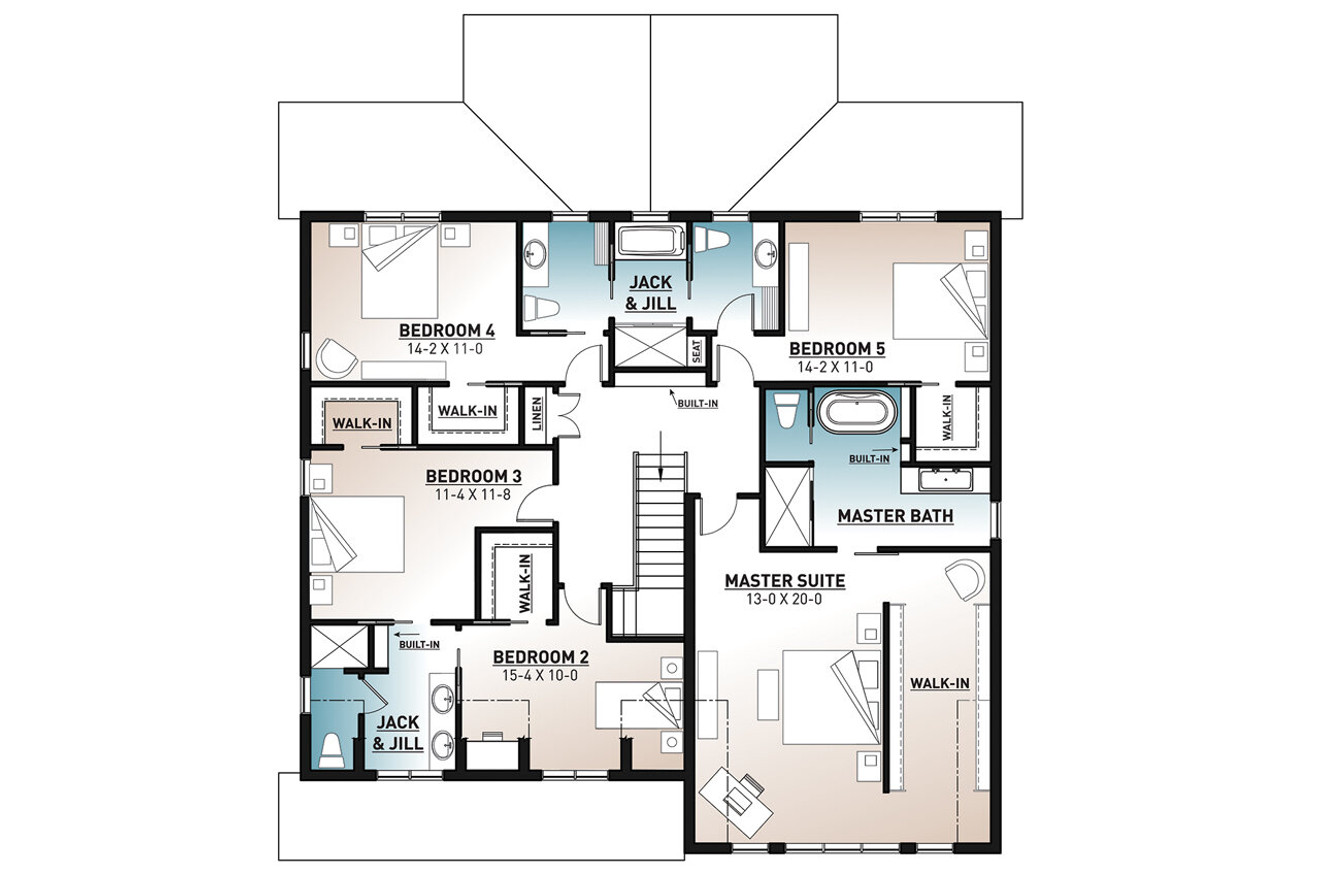

This two story home plan has all of the sleeping areas on the second floor. The five bedroom floor plan has four of the bedrooms sharing jack-n-jill suites in addition to walk-in closets. The master suite is also on the second floor and is a spacious retreat from the busy day-to-day activities of the rest of the house. A generous walk-in closet is open on two sides. A pocket door separates the bedroom from the private bathroom. This luxurious bathroom is filled with a farmhouse vanity, walk-in shower, private toilet and soaking tub.
