Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to plan buying?

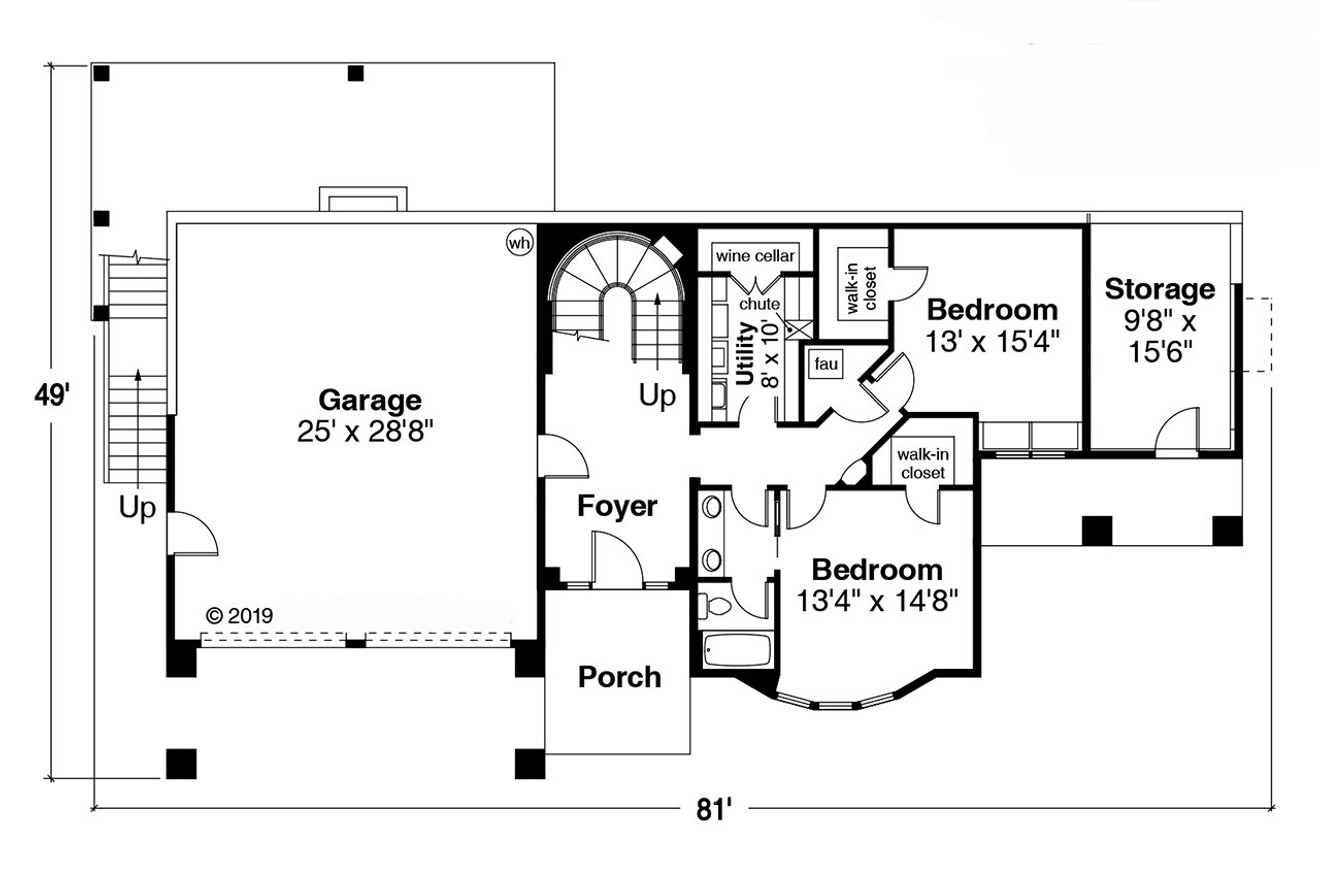

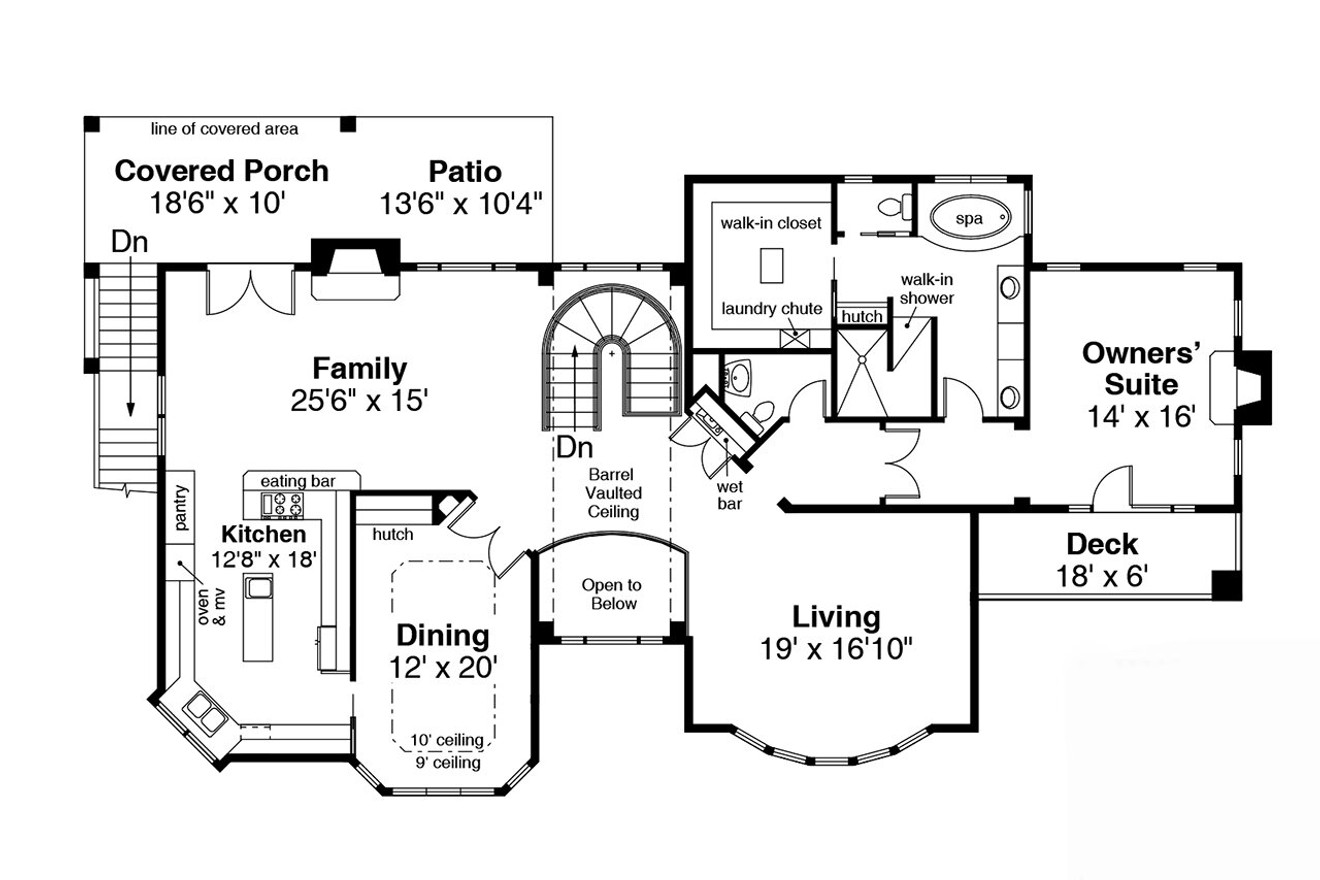

A sultry mix of the Western Mediterranean and American Southwest come together in this intricate blend of stucco and arches to create the two-story Stratton house plan. The first and lower floor is unique in the fact that ground level is a front-facing daylight basement. Walking in the front door into the foyer, a grand double barrel-vaulted ceiling, and magnificent circular staircase dance their way up to the second floor. A majority of the shared living space: Living, dining, family room and kitchen; are all located upstairs. The home being on a sloped lot permeate it with littered levels of balconies, covered patios, and porches. The Master Suite in the Stratton house plan is especially exquisite with a private fireplace, separate tub from the walk-in shower, giant walk-in closet and customized built-in laundry chute. The Master bedroom is masterfully located upstairs away from the other bedrooms that are on the lower level of the home. The two-car garage decorates the second half of the lower level of the home and circles directly back to the beginning of the home; the foyer.
