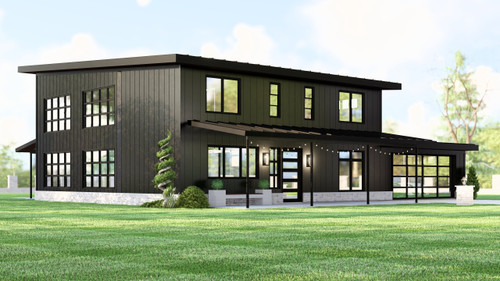

  • Modern House Plan - 59486 - Front Exterior
  • Modern House Plan - 59486 - Front Exterior
  • Modern House Plan - 59486 - Rear Exterior
  • Modern House Plan - 59486 - Rear Exterior
  • Modern House Plan - 59486 - Left Exterior
  • Modern House Plan - 59486 - Left Exterior
  • Modern House Plan - 59486 - Right Exterior
  • Modern House Plan - 59486 - 1st Floor Plan
  • Modern House Plan - 59486 - 2nd Floor Plan
  • Secondary Image - Modern House Plan - 59486 - Kitchen
  • Modern House Plan - 59486 - Great Room
  • Modern House Plan - 59486 - Great Room
  • Modern House Plan - 59486 - Master Bedroom
  • Modern House Plan - 59486 - Master Bathroom
  • Modern House Plan - 59486 - Master Bathroom
  • Modern House Plan - 59486 - Loft
  • At a glance
  • Square Footage: Total Living 3147 Square Feet
  • Bedrooms 3 Bedrooms
  • Baths Full 3 Full Baths
  • Floors 2 Floors
  • Garage Bays Min 2 Car Garage

Floor plan

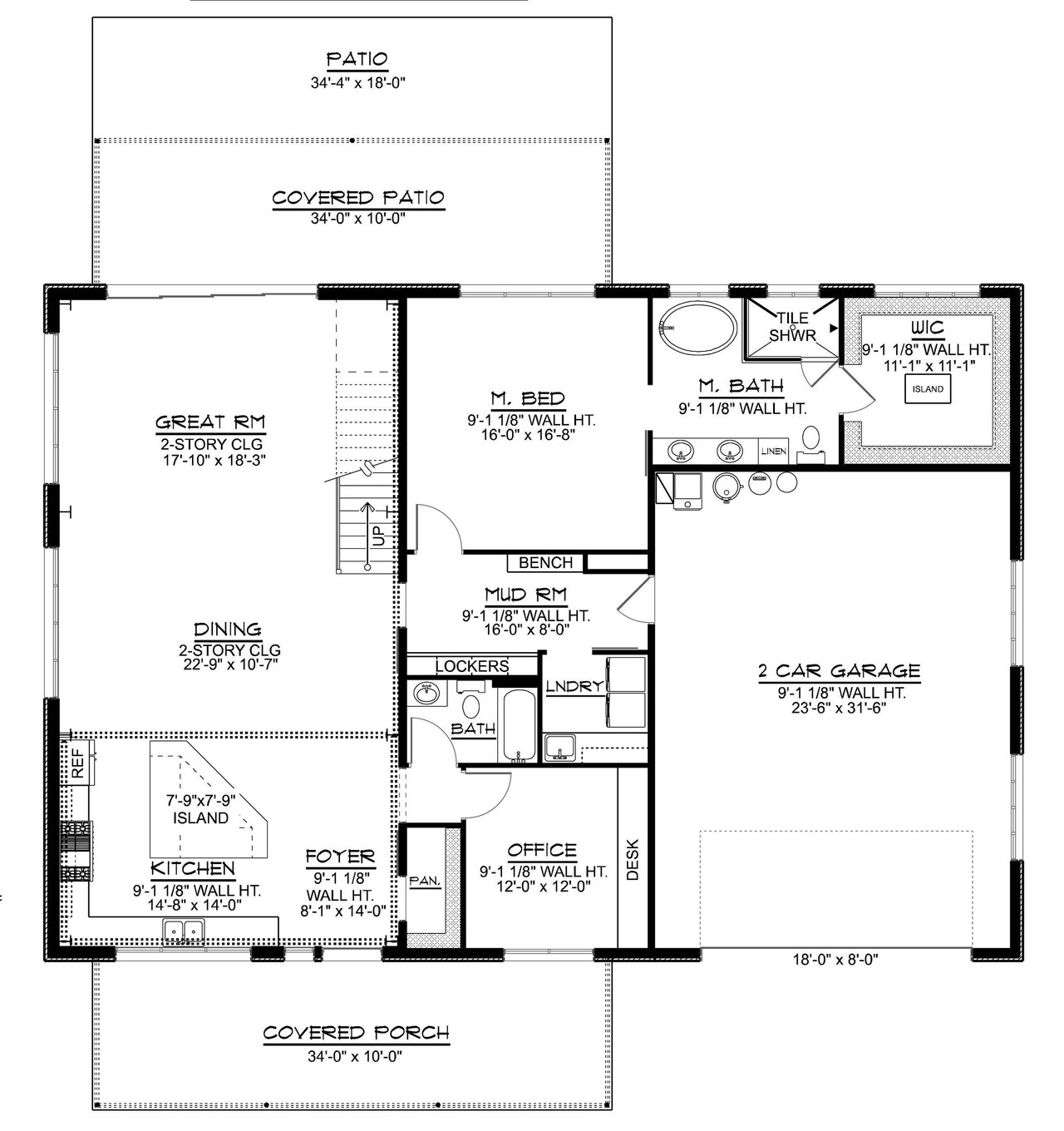

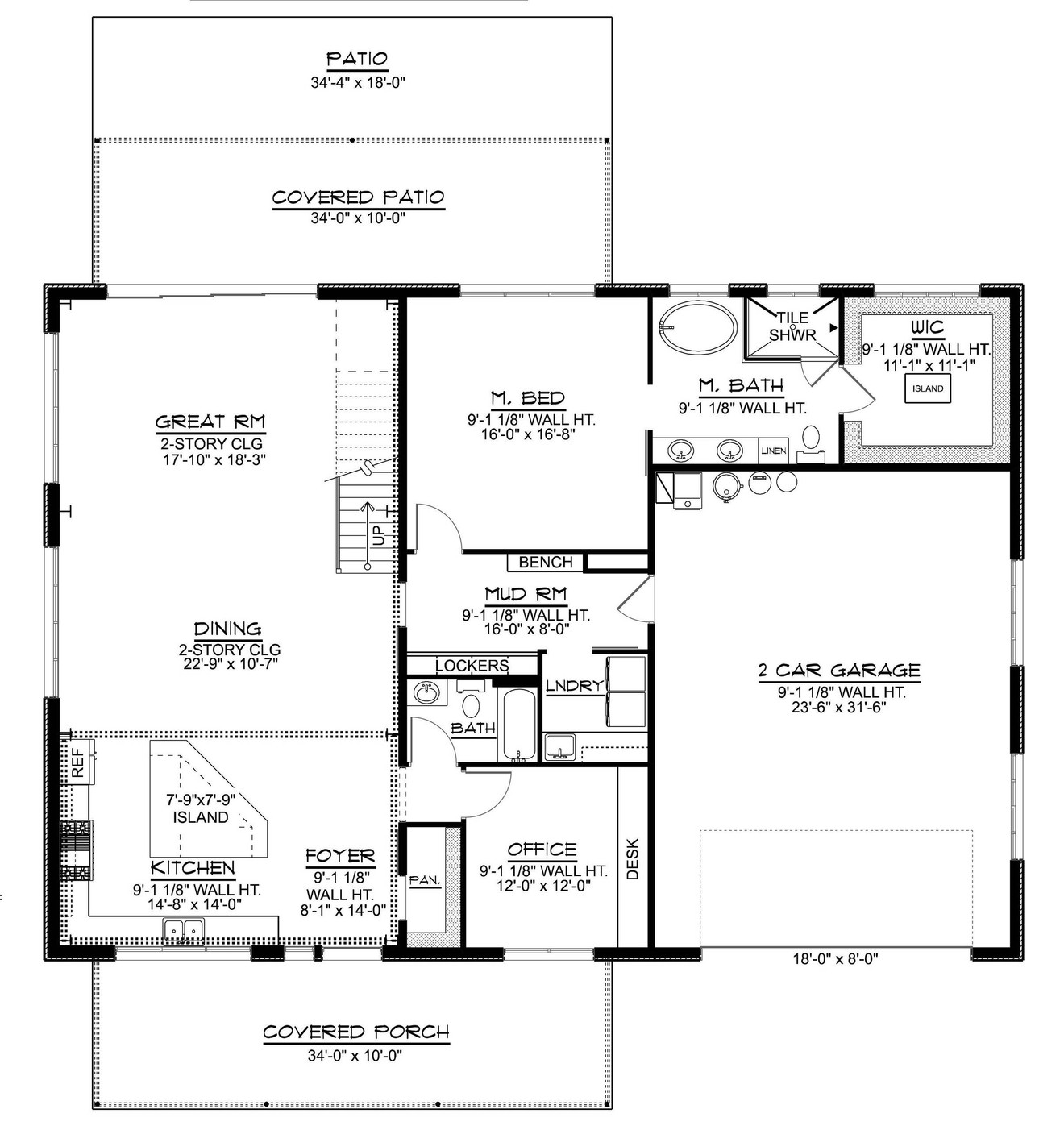

Modern House Plan - 59486 - 1st Floor Plan Icon_ionic-ios-expand

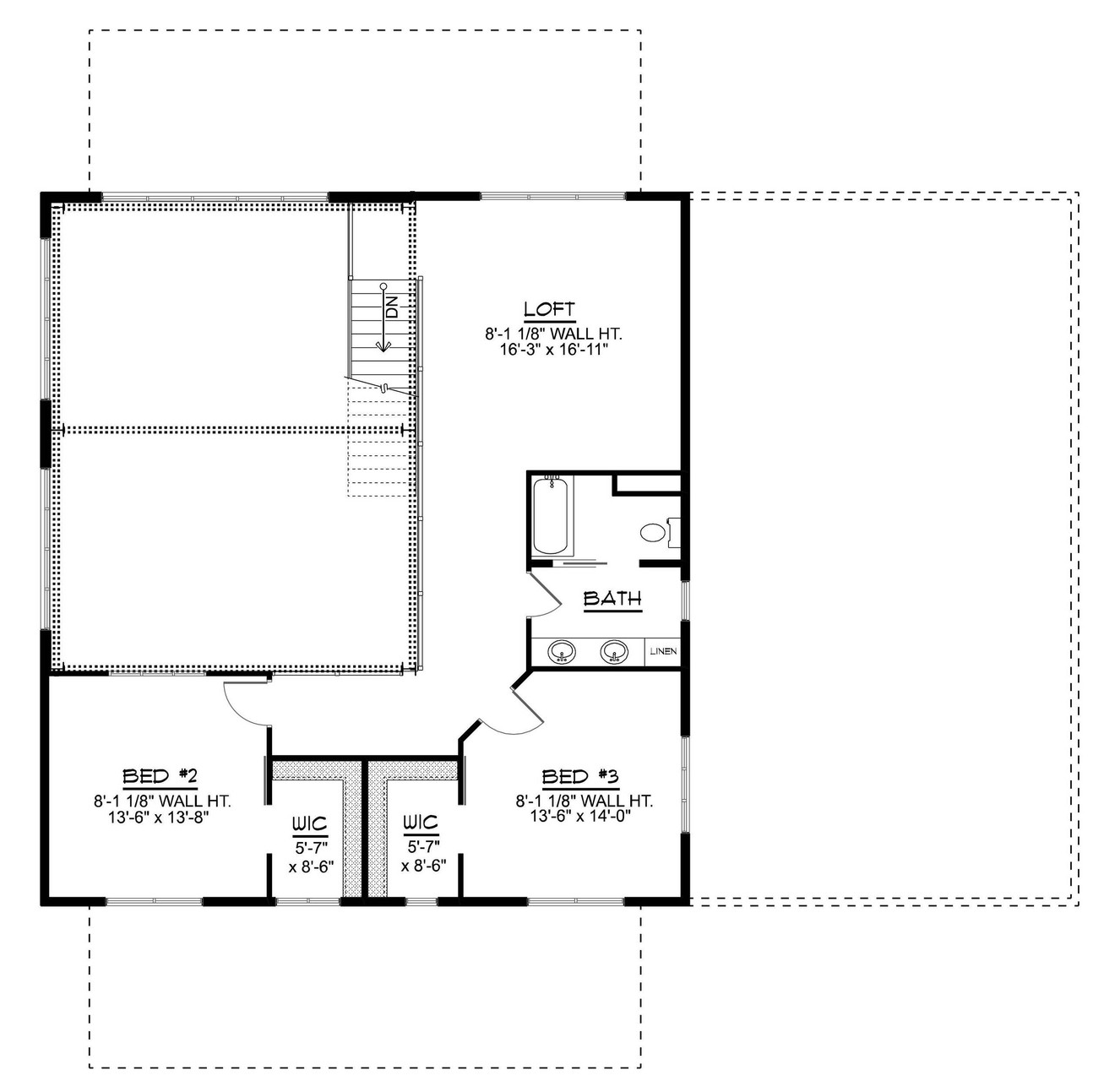

Modern House Plan - 59486 - 2nd Floor Plan Icon_ionic-ios-expand

Contact HPC Experts

Have questions? Help from our plan experts
is just a click away.

To help us answer your questions promptly, please copy and paste the following information in the fields below.

Plan Number: 59486
Your submission has been received!
item-icon

Free modification quote

Call Us 866-688-6970 or fill out our form.

Get Started
item-icon

Cost to build report

How Much Will This Plan Cost To Build?

Find Out
GetQuote

Free modification quote

Are you looking for additional plan options?

Get a Quote

Have questions? Prefer to order by phone? Give us a call: 1-866-688-6970

Adding to Cart The item has been added

Plan details

Basic Details

Building Details

Interior Details

Garage

What's Included in a Plan Set?

Title Page includes the front rendering of the home.
Two pages of elevations, one from each side.
Floor plans, includes window schedule.
Typical wall section indicating framing members and spacing, materials being spec'd, insulation requirements, etc...
2nd floor and basement plans if required.
Roof plan, foundation plan, foundation sections, general notes, and electrical plans.
General Notes.

Most plans drawn at 1/4"=1'-0" scale, Roof plans are at 1/8" = 1'-0" and wall sections and foundation sections are drawn at 1/2"=1'-0".

New to Plan Buying?

What You Need to Know About Purchasing Plans



You are about to embark on an exciting process, enjoy it!



Here is what you need to know about purchasing house plans from HPC:

 • Each designer and architect plans are created with their own unique style and content. Please be sure to read the "What's included in a Plan Set" tab, and if you don't see what you are looking for, be sure to give us a call.
 • The designs are not engineered. Check with the building department where the structure is being constructed to find out if an engineer's review is required. We can help facilitate engineering for your plan if you are unable to find a local professional who can assist you.
 • Your building department may also require a site plan of your lot be included with your submittal for a building permit. A local design

professional in your area should be able to help you with this as well as evaluating your chosen plan to make sure it meets the local building requirements for weather and seismic conditions.
 • Please read and understand your licensing agreement. This will clearly define what you can and can not do with your construction documents.
 • Electronic formats of packages sales (PDF & CAD Files) are final. Printed construction documents may be exchanged with an exchange fee within 30 days of purchase.
 • Unless purchasing an additional build license (one time additional or multi-build additional) you may build the structure one time. Ownership of the construction documents can not be transferred or sold.
 • Unless purchasing a printable package, you may not make additional copies of the plan without the permission of the designer.

Plan Packages Explained



Ready to purchase plans and unsure which construction package to choose? We hope the following can help you decide. Please note: Plan packages vary and may not be available on all plans.



1 Set Study Package


This is a single set of prints will allow you to completely review the plan, get accurate quotes for construction costs, and contemplate custom design changes you may wish to make. Study sets are marked Not For Construction and without the license necessary to legally build the home. Don't worry though, we allow a 100% upgrade credit towards a buildable licensed construction package within one year of your 1 Set Study Package purchase.



5 and 8 Set Print Packages


These are licensed print packages of the construction documents printed and shipped to you.



PDF Print Package


This PDF package is a non-modifiable, print only PDF file that saves time, gas, money, and paper! Many contractors and building jurisdictions are working with digital formats of the construction documents. The PDF print package allows for you or your contractor to distribute the construction documents to sub-contractors, use electronic submittals to apply for the building permit, and print the sets you need when you need them.



Plans Now

Don't wait - get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license - electronically signed and emailed to you immediately after placing your order - with permissions to make copies of the plan locally as needed.



PDF Master


An unlocked modifiable PDF file. Same conveniences as the PDF print package with the added benefit which allows your local professional to make engineering mark-ups or design changes using compatible software.



CAD Electronic Files


By using CAD compatible software that use .dwg or .dxf file formats enables you or a local professional to modify the construction documents and integrate those changes throughout the entire plan. Once the modifications or engineering is incorporated into your design, you can reproduce as many copies of the plan needed to build the structure.





Still unsure which package to choose? You may want to discuss this with your builder or give us a call.

How to Evaluate a Plan



When looking at plans, most often it's the exterior profile that will first grab your attention. You love the exterior, it's exactly what you envisioned, but what about the inside of the design? It's important to spend some time and digest the design's interior elements. Here are a few considerations to think about when evaluating if this is the right plan for you.



  First off, think about how you live in your home.
 • Do you or your family prefer to have one or two places to gather all together, or do you prefer to have more private places within your home.
 • Consider how you move through the home in your day to day life. Visually walk through the front door, what do you walk through or by? Do the same from your back door and garage entrances.
 • Is your family life more formal or casual and do the living spaces of the design complement your lifestyle?
 • Will your existing furniture fit within the spaces?
 • If you have a family, do you want the master suite close to the secondary bedrooms or separated?
  Do you entertain? Are there elements within the floor plan that allow for entertaining with ease?
  How do you take care of laundry? Would you prefer the laundry room to be close by the kitchen, garage, or close to the bedrooms?
  Storage space? Is there enough?
 • Consider your access to the outside? Do you want to extend your indoor living to the outside? Is there adequate porches or patios for how you want to enjoy your yard? Where will you place your grill or patio furniture?
 • The view? What are you going to see when you look out your windows? Need more privacy or need more accessibility to a view?
 • Make sure your garage will accommodate your cars, RV, or boat. Adequate storage? Do you want or need a door to the exterior beyond the opening garage doors? Utility sink? Space for an additional refrigerator or freezer?
  Consider things about your current home/residence that you don't like. By pin pointing these areas of your current home that you don't care for, you can make sure they are addressed in the next.


After reviewing giving it careful consideration you may find that the plan would be perfect with a few design changes. HPC can certainly help you with that with our customization services.

The Customization Process



So you've found that almost perfect design, and find yourself saying, "if only". Whether it's changing the size of a room, adding space or features, or moving things around, we can help you take that almost perfect design and make it perfect for you.



It's exciting to create a plan to fit your exact needs and wants whether it's your home, garage or even a potential investment property.



When you locate your plan, select the "Get Started" button located on the plan detail page. Here you will be able to share with us the changes to the interior and/or the exterior of the design. You can even upload a sketch if you have one. Complete the necessary contact information and select "Submit Request".



HPC will then forward your request to a designer to evaluate your changes and provide a quote within two business days. HPC is a "true quote" plan website. That means HPC will not mark-up the modification quote, we want to help keep costs down for you!

59486

Custom Home Designs, LLC

$1,450.00
(No reviews yet) Write a Review
SKU:
256 - 2429
Plan Number:
59486
Date Added:
05/09/2025
Date Modified:
05/09/2025
Designer:
orders@chd-llc.com
Designer Plan Title:
2429
Plan SKU:
2429
Max Price:
3250.00
Min Price:
1450.00
Pricing Set Title:
Category D [2500 - 5499 sq ft]
Structure Type:
Single Family
Collections:
House Plans with Photos
Master Suite Features:
Main Floor Master Suite
Master Suite Features:
Separate From Other Bedrooms
Master Suite Features:
Separate Tub & Shower
Master Suite Features:
Walk In Closet
Master Suite Features:
Walk-In Shower
Interior Features:
Casual or Open Style Living Room
Interior Features:
Den, Office, Library, or Study
Interior Features:
Great Room
Interior Features:
Loft
Square Footage: Total Living:
3147
Square Footage: 1st Floor:
2048
Square Footage: 2nd Floor:
1099
Square Footage: Garage:
768
Square Footage: Porch:
340
Square Footage: Patio:
613
Floors:
2
FLOORS_filter:
2
Bedrooms:
3
BEDROOMS_filter:
3
Baths Full:
3
FULL BATHROOMS_filter:
3
Ridge Height:
23'10"
Overall Exterior Depth:
64
Overall Exterior Width:
64
Main Floor Ceiling Height:
9'
Second Floor Ceiling Height:
8'
Available Foundations:
Crawl Space
Available Foundations:
Concrete Slab
Available Foundations:
Basement
Available Foundations:
Daylight/Walk-out Basement
Default Foundation:
Concrete Slab
Available Walls:
2x6 Wood Frame
Default Wall:
2x6 Wood Frame
Ext Wall Material:
Siding, Brick
Lot Type:
View Lot
Lot Slope:
Level Lot
Lot Type:
Side View
Roof Framing:
Stick
Roof Pitch:
1/12
Primary Style:
Modern
Secondary Styles:
Contemporary
Kitchen Features:
Breakfast Nook/Dining Area
Kitchen Features:
Eating Bar or Peninsula
Kitchen Features:
Kitchen Island
Kitchen Features:
Walk-In or Wall Pantry
Utility Room Features:
Close to Bedrooms
Utility Room Features:
Close to Kitchen or Garage
Utility Room Features:
Main Floor Utility Room
Utility Room Features:
Mudroom or Mudhall
Exterior & Porch Features:
Covered Patio
Exterior & Porch Features:
Covered Porch
Garage Type:
Attached
Garage Orientation:
Front Entry
Garage Features:
Oversized
Search Keywords:
Mud Room with Lockers
Garage Bays Min:
2
Garage Bays Max:
2
GARAGE BAYS_filter:
2
Collections:
3 Bedroom House Plans
Styles:
Modern House Plans
Styles:
Contemporary House Plans
Collections:
2 Story House Plans
Collections:
View Lot House Plans
Regions:
Midwest House Plans/Indiana Home Plans
Product Rank:
450

Step into the elegance and ease of modern living with this stunning 3147 sq ft modern style house plan. Designed with intentional flow and contemporary charm, this 2-story home plan offers everything a growing family or work-from-home professional could ask for—spaciousness, functionality, and eye-catching design.

The exterior strikes a perfect balance between warmth and sophistication, combining classic siding with a tasteful brick skirt. A double front-load garage provides ample space for vehicles and storage, while the welcoming covered front porch adds both curb appeal and a cozy spot to enjoy morning coffee. As you approach the entry, clean lines set the tone for the modern house design that continues inside.

The front door opens into a bright and expansive great room, beginning with the kitchen—truly the heart of this home design. Here, an angled island with seating takes center stage, ideal for both meal prep and casual conversation. Adjacent to the kitchen is a generous walk-in pantry, providing both functionality and convenience for all your storage needs. Whether hosting a dinner party or a simple family breakfast, this kitchen delivers in both style and performance.

Just to the right, a full bathroom and a dedicated home office offer thoughtful accommodations for both guests and daily productivity. The built-in desk adds efficiency without sacrificing space, making it the perfect nook for remote work, study, or creative pursuits.

Flowing seamlessly from the kitchen is the dining area, positioned strategically to create a natural buffer between the kitchen and the living room. The two areas are visually united by a soaring 2-story ceiling, adding a dramatic sense of space and openness. A telescoping glass door spans the back wall, effortlessly blending indoor and outdoor living and leading out to a covered rear patio—perfect for alfresco dining or relaxing in the shade.

Just off the great room, a practical mudroom with built-in lockers provides a smart transition zone. It connects the garage, utility room, and master suite, keeping daily life organized and clutter-free. The utility room itself offers generous space for laundry and storage, with easy access for multitasking.

The master suite is a private retreat designed for relaxation. The bedroom area is spacious and serene, while the ensuite bathroom features a dual-sink vanity, a luxurious soaking tub, and a separate tile shower. The walk-in closet is a standout, complete with an island for added storage and a touch of elegance—offering a boutique-like dressing experience right at home.

Upstairs, the open loft area overlooks the great room below, creating a visual connection between the two levels and maintaining the home’s airy atmosphere. A full bathroom with dual sinks and a shower/tub combo serves the second floor, making it easy to accommodate family members or guests. Two generously sized secondary bedrooms each include their own walk-in closets, providing personal space and storage for everyone.

This 3-bedroom, 2-story home design is a modern style house plan that blends innovative floorplan efficiency with thoughtful luxury. From its versatile layout to its sophisticated finishes, this home plan is a perfect choice for those seeking both beauty and function in their forever home.

Secondary Roof Pitch: 2/12

1 Set Package

One printed set of construction drawings. Includes a single build license.

1 Set Study Package

A single review set of the construction drawings marked Not For Construction and do not include a license to build. Upgrade to a licensed construction package or sign on for modifications within 1 year of purchase and received a 100% upgrade credit.

3 Sets

Three printed sets of construction drawings. Includes a single build license.

3 Set Package

Three printed sets of construction drawings. Includes a single-build license.

4 Sets

Four printed sets of construction drawings. Includes a single build license.

3 Sets + PDF Print

Three printed sets of construction drawings plus a Print PDF (non-modifiable). Includes a single build license.

4 Set Package

Four printed sets of construction drawings. Includes a single build license.

5 Set + Print PDF

Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

5 Sets + Print PDF

Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

5 Set Package

Five printed sets of construction drawings. Includes a single build license.

5 Set with PDF

Five printed sets of construction drawings plus a PDF copy of the construction drawings.

5 Sets with PDF

Five printed sets of construction drawings plus a PDF copy of the construction drawings.

6 Set Package

Six printed sets of construction drawings. Includes a single build license.

8 Set + Print PDF

Eight printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

8 Set Package

Eight printed sets of construction drawings. Includes a single build license.

8 Sets with PDF

Eight printed sets of construction drawings plus a PDF copy of the construction drawings.

CAD + PDF

A digital plan package which includes both CAD (DWG) and PDF Files. Includes a single build license which allow the plans to be modified and reproduced locally.

CAD + PDF Unlimited

A digital plan package which includes both CAD (DWG) and PDF Files and includes an unlimited build license.

CAD Masters

A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Masters are emailed saving shipping costs and time.

CAD Package

A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Packages are emailed saving shipping costs and time.

CAD w/Multi-Use License

A digital copy of the construction drawings in a DWG file format. Includes a multiple build license with permissions which allow the plan to be modified and reproduced locally. CAD Packages are emailed saving shipping costs and time.

Concept Plan Package

Includes both PDF and DWG files of the Elevations, Floor Plan(s), and Roof Outline which can be used by a local design professional to complete the construction documents to site specific requirements, conditions and building practices. Includes a non-transferable unlimited build license.

Construction Package

Five printed sets of construction drawings that include a material list and a PDF (small size).

Master Builder CAD Set

A digital plan package which includes both the PDF Master and CAD Master (DWG) and includes an unlimited build license.

PDF Bid Set

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

PDF File

A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.

PDF Master

A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.

PDF Print Package

A digital copy of the construction drawings in a PDF format (non-modifiable, print only). Includes a single build license with permissions to make copies of the plan locally as needed. The PDF Print Package is emailed saving shipping costs and time.

PDF Print Package + 1 Set

One printed set of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 2 Sets

Two printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 3 Sets

Three printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 4 Sets

Four printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 5 Sets

Five printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Study Set

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

PDF Unlimited

A digital copy of the construction drawings in a PDF format that includes an unlimited build license.

PDF w/Multi-Use License

A digital copy of the construction drawings in a PDF format. Includes a multiple build license with permissions which allow the plan to be modified and reproduced locally. This package is emailed saving shipping costs and time.

Plan Package

A digital plan package which includes the PDF Master, CAD Master (DWG), and Sketchup Pro Files (.layout). This package is emailed saving shipping costs and time.

Plans Now

Don’t wait – get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license – signed during check out – with permissions to make copies of the plan locally as needed.

Preliminary Set

One printed set of the elevations and floor plan(s) for study and review. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Pricing Package

One printed set of the elevations and floor plan(s) plus a material list.

Reproducible Vellums

One printed set of construction drawings on transparent paper. Includes a single build license with permissions to modify and reproduce the plans. Modifications to this plan package are made by hand.

Review Set

A digital study set of the elevations and floor plan(s) only. The review set is not to scale. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Study Set via Email

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Study Set via email

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

5 Set Package Kit

Bundled savings! Includes 5 Print Sets of construction drawings, a PDF formatted to print 11’x17”, and a material list. Please note that the PDF may not be to scale.
