Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to plan buying?

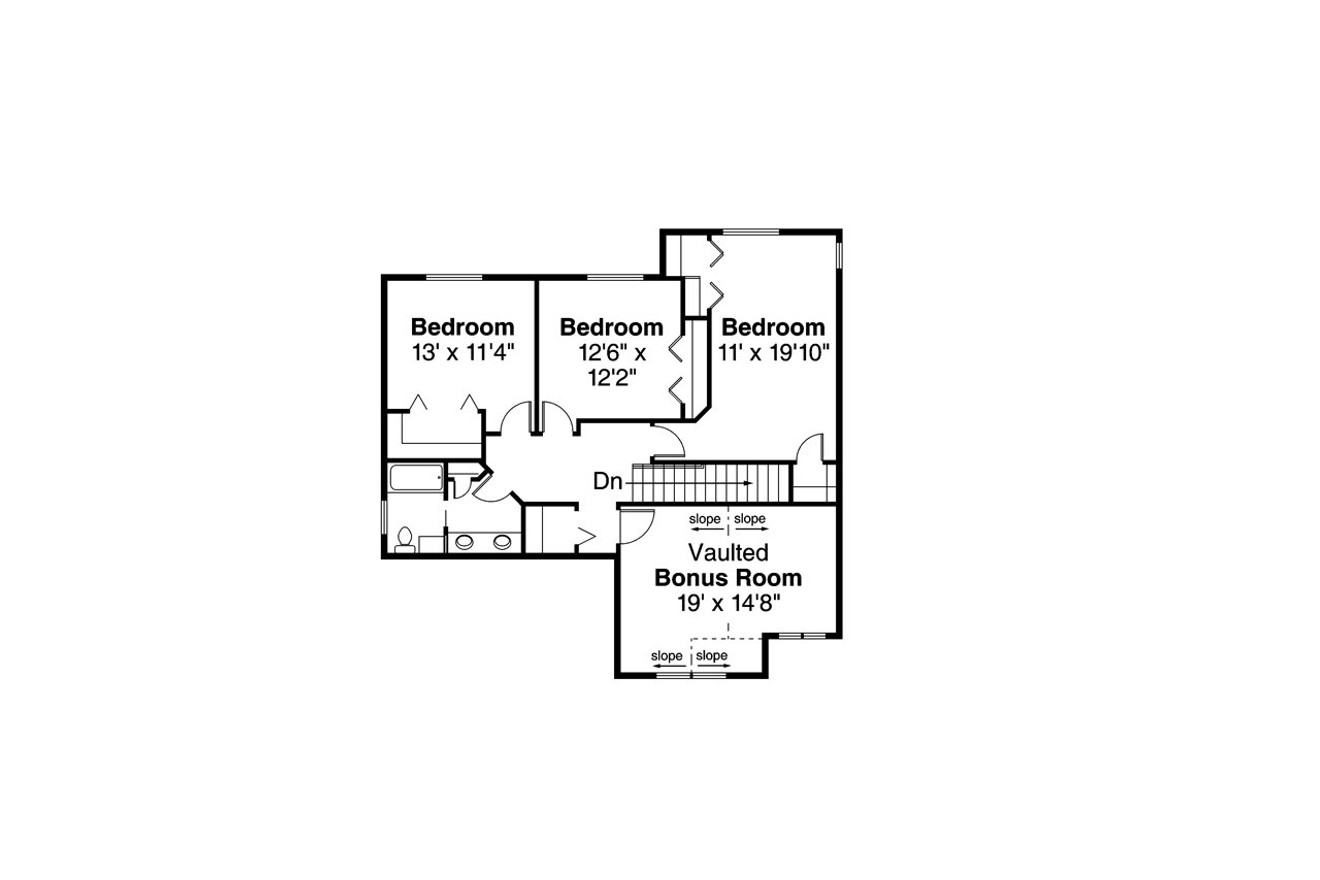

The Hillsborough Craftsman house plan is an eye-catching design. A trio of materials along with tapered columns add to the appeal. The cozy covered front porch is large enough for a porch swing or furniture set making it an ideal place to sit and watch the world go by. Inside the entry immediately opens to a formal living room. For families with a more casual lifestyle, this room could be furnished as a den, study, hobby room, or home office. The great room fills the back of the floor plan. A second living room, dining room, and kitchen are all open to one another. The great room is graced with a fireplace sure to keep everyone warm on cold winter days. Additional first-floor features of note are the guest and owners' suite. Each offers a private bathroom and the owners' suite has the addition of a walk-in closet. This two-story home plan offers plenty of separation between the owners' suite and the rest of the bedrooms. On the second floor are the three additional bedrooms which share a compartmentalized bathroom with the vaulted bonus room.
