Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to plan buying?
This 3-bedroom, 2.5-bath Colonial-style house plan is a picturesque model of the dream family home. The symmetrical exterior with shuttered windows and framed entrance remains traditional, while the interior floorplan features casual spaces with lots of natural light.
Through the front door, you are greeted by the open staircase with an entrance hallway and coat closet just to the right. To the left of the entrance is a home office that could double as a guest room or den. To the right is the main living space with an elegant fireplace at the center of it all. The living room and casual dining area are flanked with windows to let in the natural sunlight. At the back of the dining room is a large kitchen with ample workspace and a raised peninsula eating bar. The kitchen also has a walk-in pantry and an entrance to the laundry room. The laundry room doubles as a mudroom with an entrance into the attached two-car garage. An intimate screen porch sits on the other side of the dining room and is the perfect size for small gatherings to enjoy the outdoors without the pesky bugs.

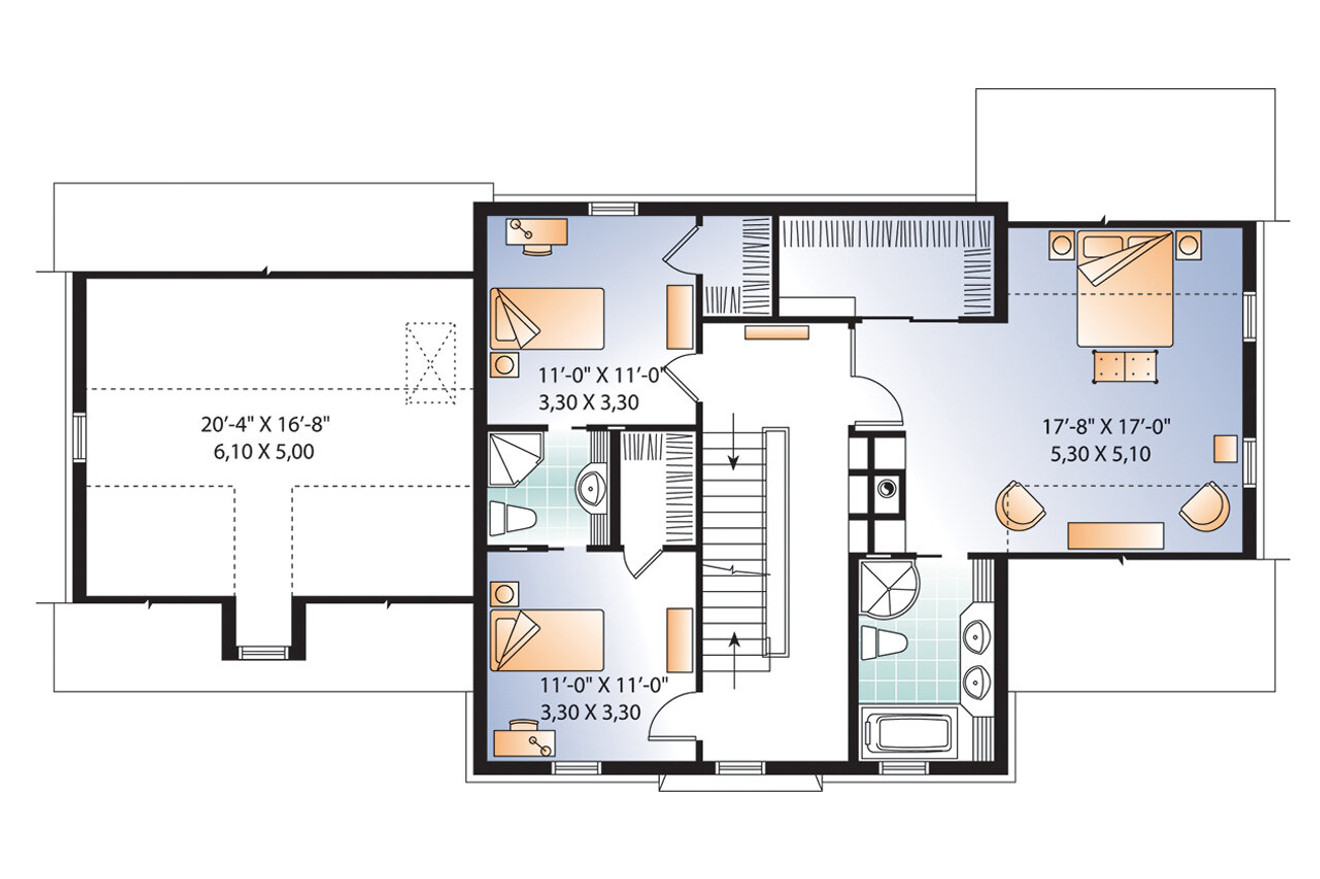

Up the stairs, you will find the bedrooms. Two standard bedrooms are on one side, both have walk-in closets and share a jack-n-jill bathroom. The master bedroom is afforded a little bit of privacy across the hall, without being too far away for comfort. The master suite has a spacious walk-in closet and a master suite with a shower, dual vanity, and a bathtub.
Go up the stairs yet again to find the third level, an open bonus space ripe with possibilities. The staircase provides some segregation so it could have multipurpose as an exercise room and hobby room or whatever use best fits the owner's needs.
