Floor Plan
Plan Details
Basic Details
Living Sq Ft:
2776 sq ft
1st Floor Sq Ft:
1596 sq ft
2nd Floor Sq Ft:
302 sq ft

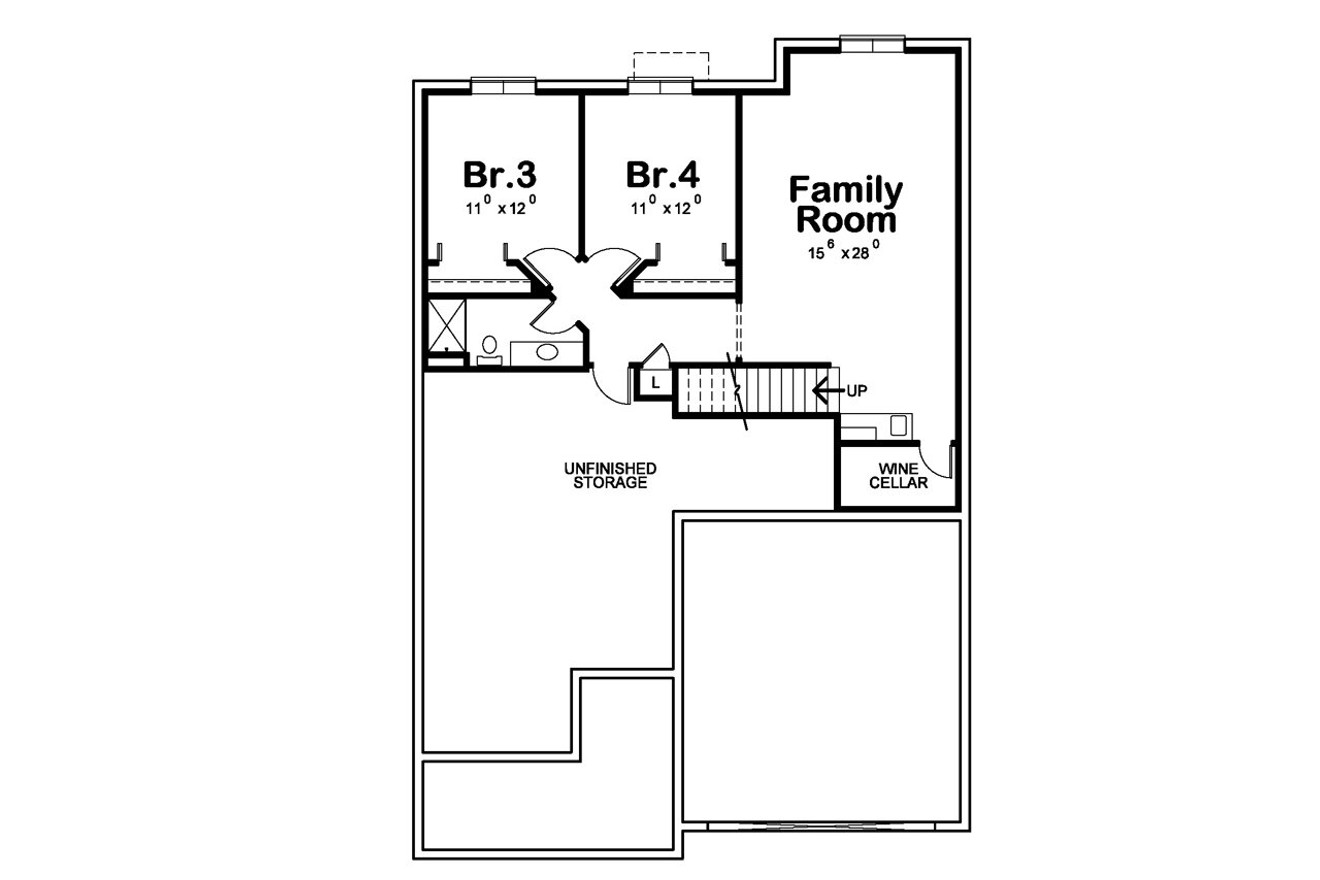

Basement Sq Ft:
878 sq ft
Garage Sq Ft:
473 sq ft
Dimensions:
40'W x 59'D
Building Height:
25'
Bedrooms:
5
Full Baths:
3
Half Baths:
1
Floors:
2
Primary Style:
Craftsman
Secondary Styles:
Country, Farmhouse
Collections:
1.5 Story House Plans, 2 Story House Plans, 5 or More Bedroom House Plans, Builder House Plans, Sloped Lot House Plans
Building Details
Primary Foundation:
Daylight/Walk-out Basement
Alternate Foundations:
Crawl Space, Concrete Slab
Building Lot Type:
Downhill Sloping Lot
Primary Roof Pitch:
6/12
Primary Wall Type:
2x4 Wood Frame
Alternate Wall Types:
2x6 Wood Frame
Exterior Wall Material:
Lap Siding, Batt & Board
Exterior & Porch Features:
Covered Porch
Interior Details
Main Floor Ceiling Height:
9'
Second Floor Ceiling Height:
8'
Kitchen Features:
Eating Bar or Peninsula, Kitchen Island, Walk-In or Wall Pantry
Utility Room Features:
Main Floor Utility Room, Close to Kitchen or Garage, Mudroom or Mudhall
Master Suite Features:
Main Floor Master Suite, Separate From Other Bedrooms, Shower Only, Walk-In Shower, Walk In Closet
Interior Features:
Family Room, Casual or Open Style Living Room, Great Room, Fireplace/Wood Stove, Walk-Out/Daylight Basement
Garage
Garage:
2 Cars
Garage Type:
Attached
Garage Orientation:
Front Entry
What's in the Plans?
CONSTRUCTION DRAWINGS (most plans)
Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
Foundations. Foundations are fully engineered for each design, whether slab or basement.

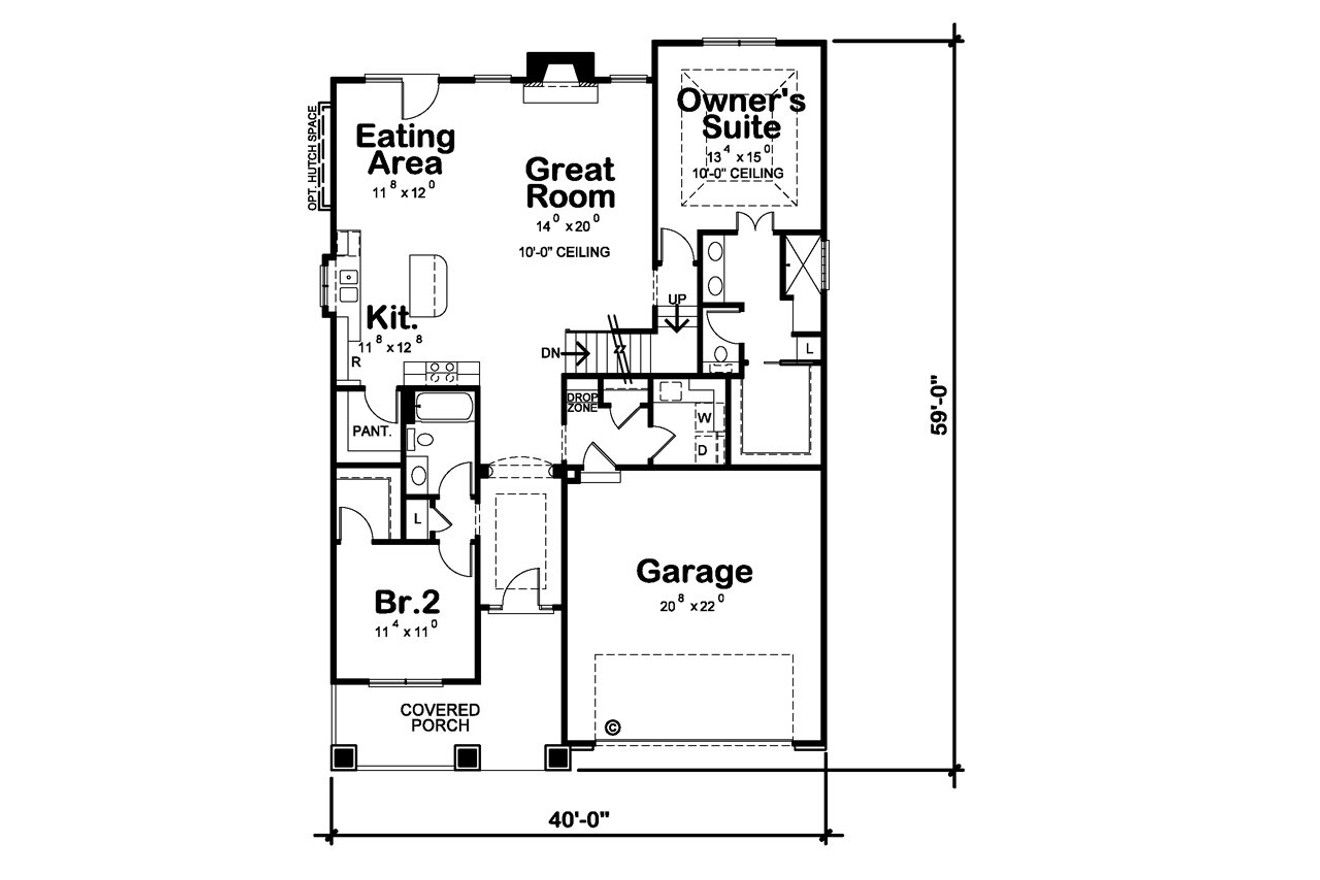

Main Level Floor Plan. The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact Design Basics to clarify the standard exterior wall thickness for the plan(s) you are interested in.

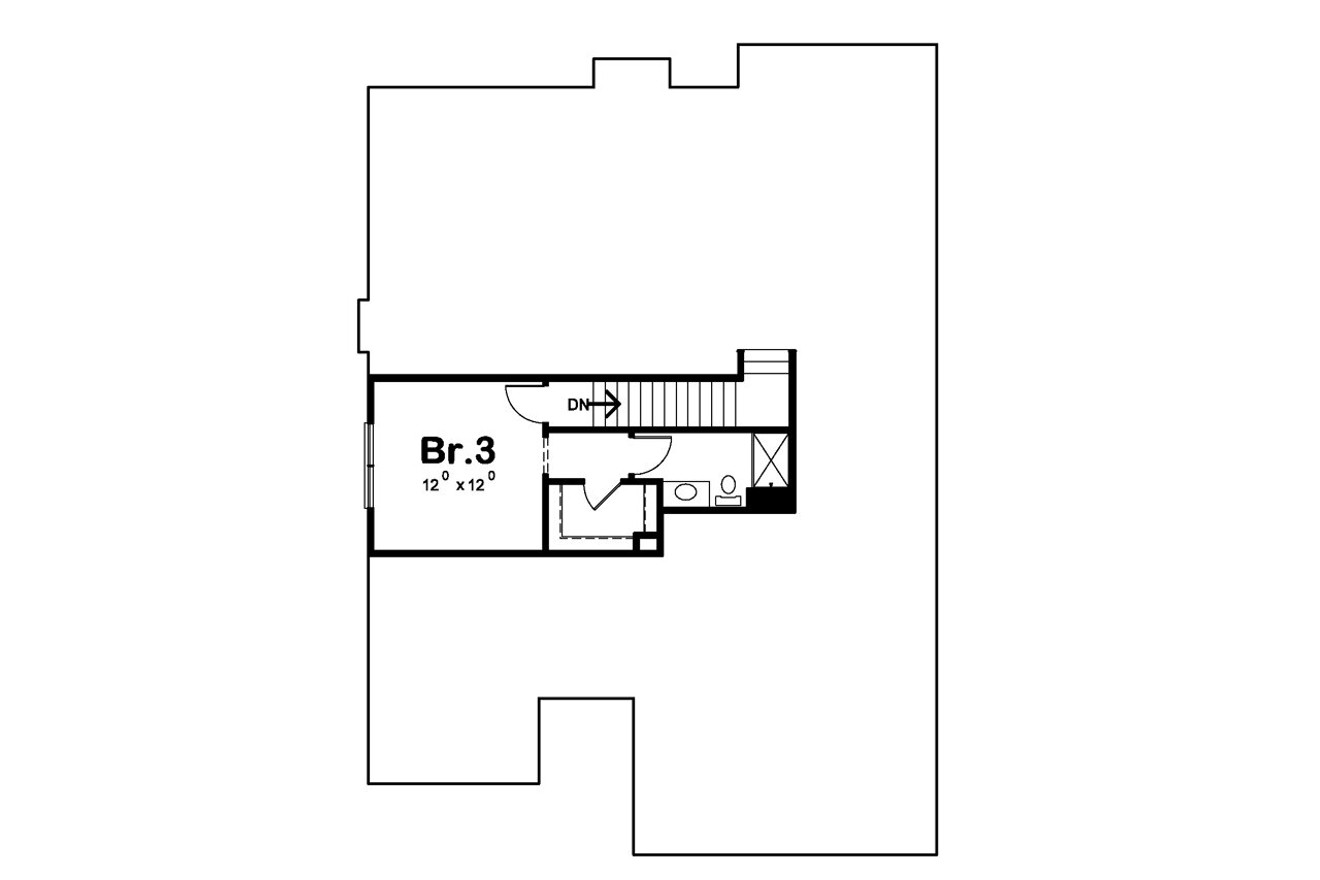

Second Level Floor Plan. Dimensioned and drafted to the same degree of detail as the main level floor plan*.
Electrical and Sections. Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.
Full technical support is provided to purchasers of each plan to answer your plan-related questions.
*Plans are drafted to meet average conditions and building codes in Nebraska, Ohio, and Texas at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).
