Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to plan buying?
The elegant Tristan seamlessly blends the styles of a traditional house plan and a victorian house plan. The front, with brick and shingle accents, has a more traditional look, while the back features a victorian style turret. Blending the two styles is a welcoming wrap-around porch.

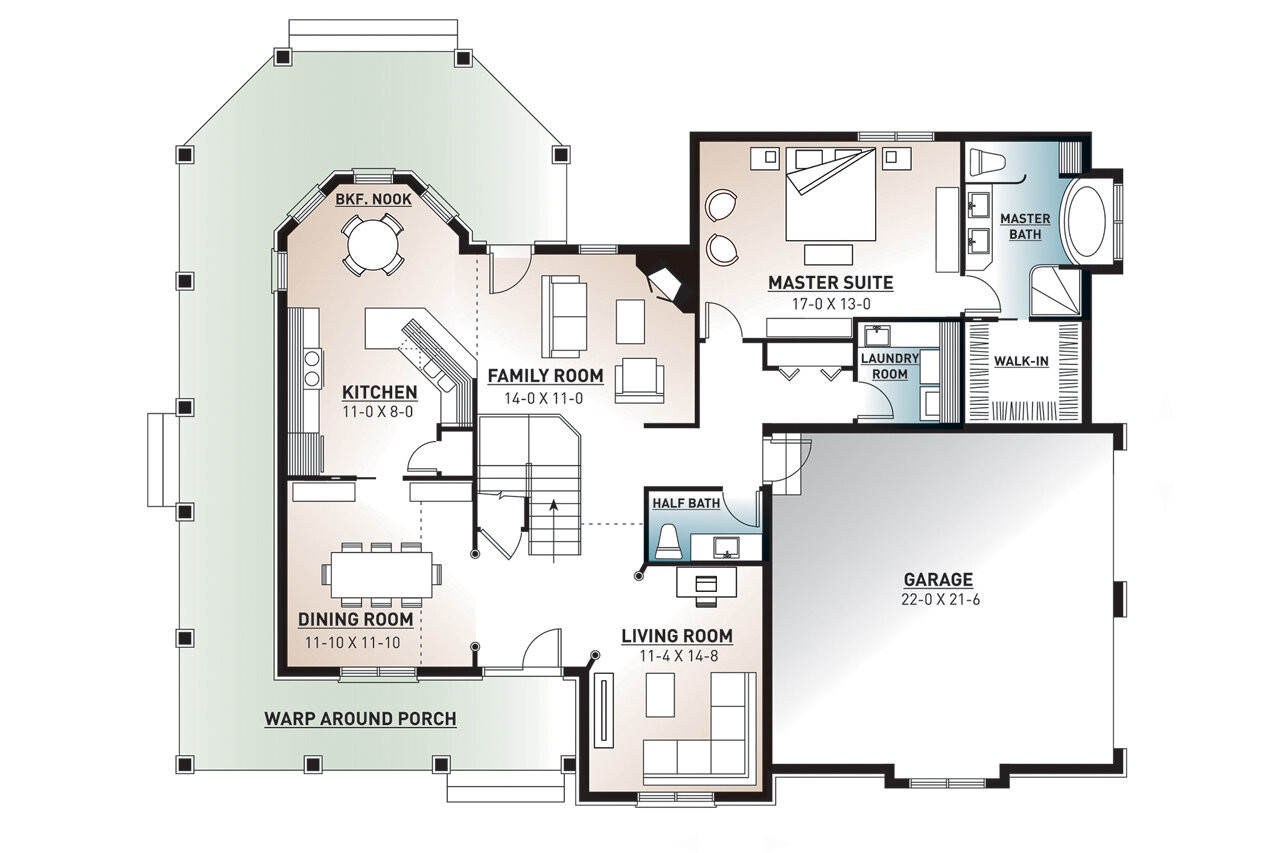

The interior floor plan features the more traditional separation of distinct spaces. Entering into the home from the front door, there is a formal living room to the right and a formal dining room to the left. At the back of the dining room is the entrance to the kitchen. The kitchen includes a wall pantry and a peninsula for extra space. Surrounded by windows, there is space for a breakfast table to enjoy sunny morning meals. Off the side of the kitchen is a casual family room with a wood stove.
The other side of the main floor is dedicated to the master suite. The master suite has enough space for a cozy sitting area and has a private master bath. The bath includes a luxury spa tub set back in a window bay for added privacy and a roomy walk-in closet.
The hallway leading to the master bedroom includes the laundry room and entrance into the garage. The two-car garage faces the side of the house for a clean front exterior and ease of entrance for a corner lot.
At the foyer are the stairs leading to the second floor. At the top of the stairs is a sitting area that is open to both the family room and dining room. This space separates the two bedrooms from the guest suite for added privacy. Located in the turret, the guest suite has a flare of elegance with the bay of windows. The guest suite also includes a private full bath. Opposite of the guest suite are two bedrooms and a full bath. The bedroom above the garage is extra large so if it is not needed as a bedroom, it could alternatively be used as a bonus room.
