Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan: To be provided by local engineer or lumber yard.
Roof Framing Plan: Shows roof outlines, pitch, heel heights, and overhang sizes details, etc. Specific truss layouts by local engineer or lumber yard.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Exterior details for railings, shutters, flower boxes, brackets, columns where applicable on the design.
New to plan buying?
The Ivanhoe, a two-story, four-bedroom, Cape Cod-style house plan, has a comfortable amount of living space for a growing family. The street view of the house has a welcoming feel, with quaint window shutters and a cozy covered front porch.

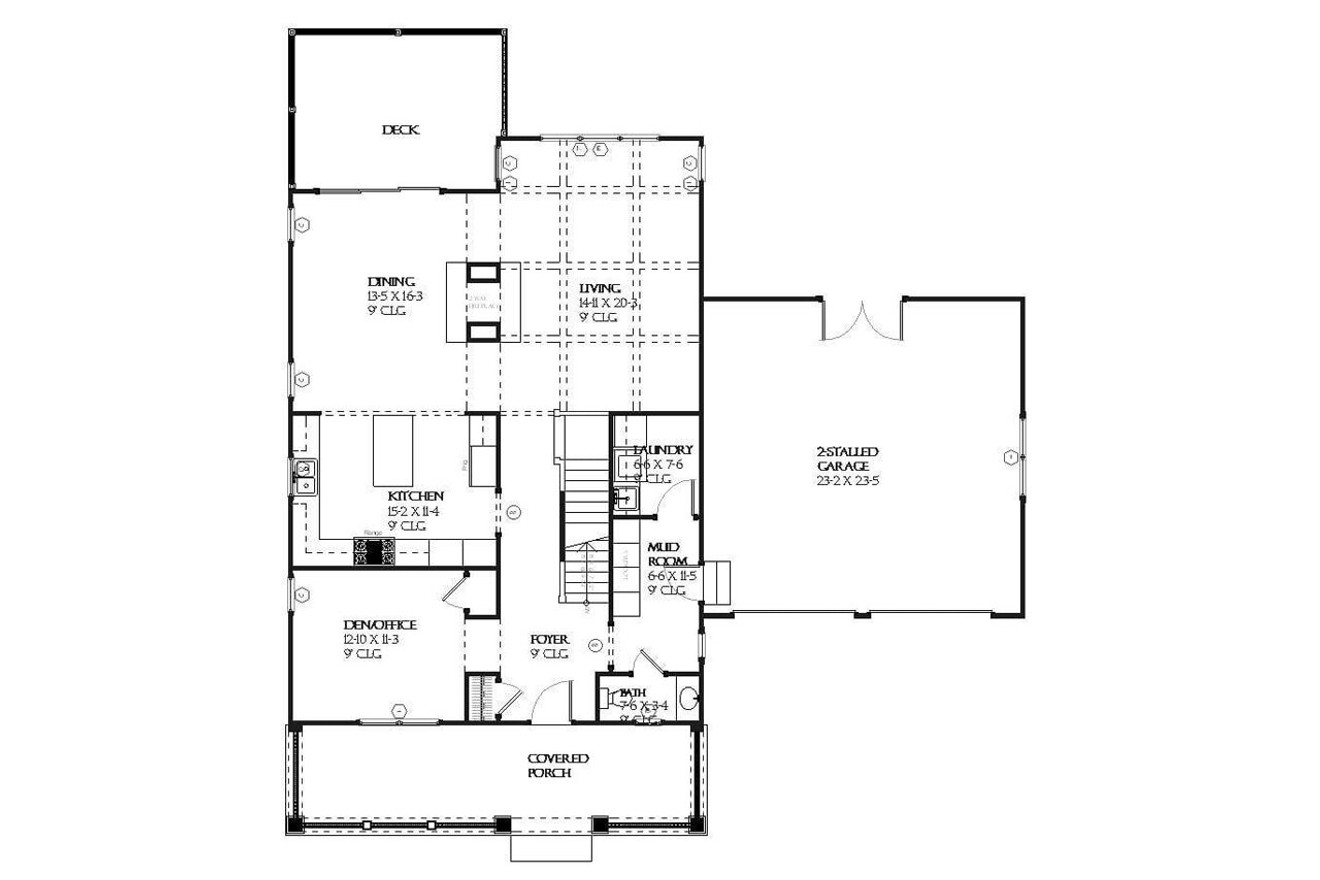

Directly through the front door, off the entry foyer is a den. This room would also make for a convenient home office or a relaxing library. To the other side of the foyer is a mudroom style hallway. With built-in storage, access to the laundry room, and a half bath, this hallway allows for easy clean up before heading into the rest of the house. The mud-hall also includes access to the home's two-car garage.
Going straight through the foyer, past the stairs, the home opens up to the living area. The living room and dining room are two distinguished spaces, but the rooms are still open enough to allow a conversation to be had from either space. An impressive, two-sided fireplace creates the barrier between the two rooms. The kitchen is just off of the dining room. The u-shape provides ample counter space and storage, especially with the addition of an island at the center. Opposite the kitchen, at the other side of the dining room, is an exit out to a deck. The deck is spacious enough to enjoy an outdoor meal or BBQ.
The upstairs provides additional living space with a large bonus room sitting above the garage. The bonus room can be used as an additional bedroom or guest room if needed. It would also make for a great game, media, or hobby room. Two standard bedrooms are also on the second floor. Each bedroom has a step-in closet and with two full bathrooms on the second floor, there will never be a line for the shower.
The master suite is also located on the second floor. The master suite only shares a closet wall with any other space, providing the most privacy available for all bedrooms being on the same floor. The master bath includes dual vanities, a soaking tub, and an impressively large closet.
