Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to plan buying?
It is easy to see why the Tillamook house plan is a best-selling home plan. The blend of stone, horizontal lap siding, and shingles create a classic look for this Craftsman house plan. Neighbors and passersby are sure to stop for a second look.
Tapered columns with stone bases line the front covered porch. The front door is recessed further protecting it from the weather. Stepping inside the entry is roomy. To the right, a cased opening leads to the formal dining room. To the left, a double set of pocket doors opens to the den. The den could also be furnished as a guest room as it has a private full bathroom. Back at the entry, the hall straight ahead leads to the great room.
The great room is an open concept living area ideal for those who enjoy informal entertaining. The back wall is filled with windows filling the room with natural light. Amongst the windows is a sliding glass door that provides access to the vaulted covered patio. A fireplace is tucked into the corner and can also be enjoyed from the kitchen. The spacious kitchen offers counter space along three sides plus a center island and a peninsular eating bar. In the corner, there is a walk-in pantry. The eating bar separates the kitchen from the nook. The nook is ideal for informal family meals.
Off the nook is a mudroom that connects to the attached three-car garage with workbench.
The owners’ suite can also be found on the main floor. It fills the left side of the floor plan and is a tranquil retreat from the hustle of the main living area. The owners’ suite is naturally bright from windows that line that back wall. A tray ceiling decorates the owner’s suite which boasts private outdoor access, luxurious private bathroom with soaking tub and walk-in shower, plus his-and-hers walk-in closets.
Just outside the owners’ suite is the laundry room.

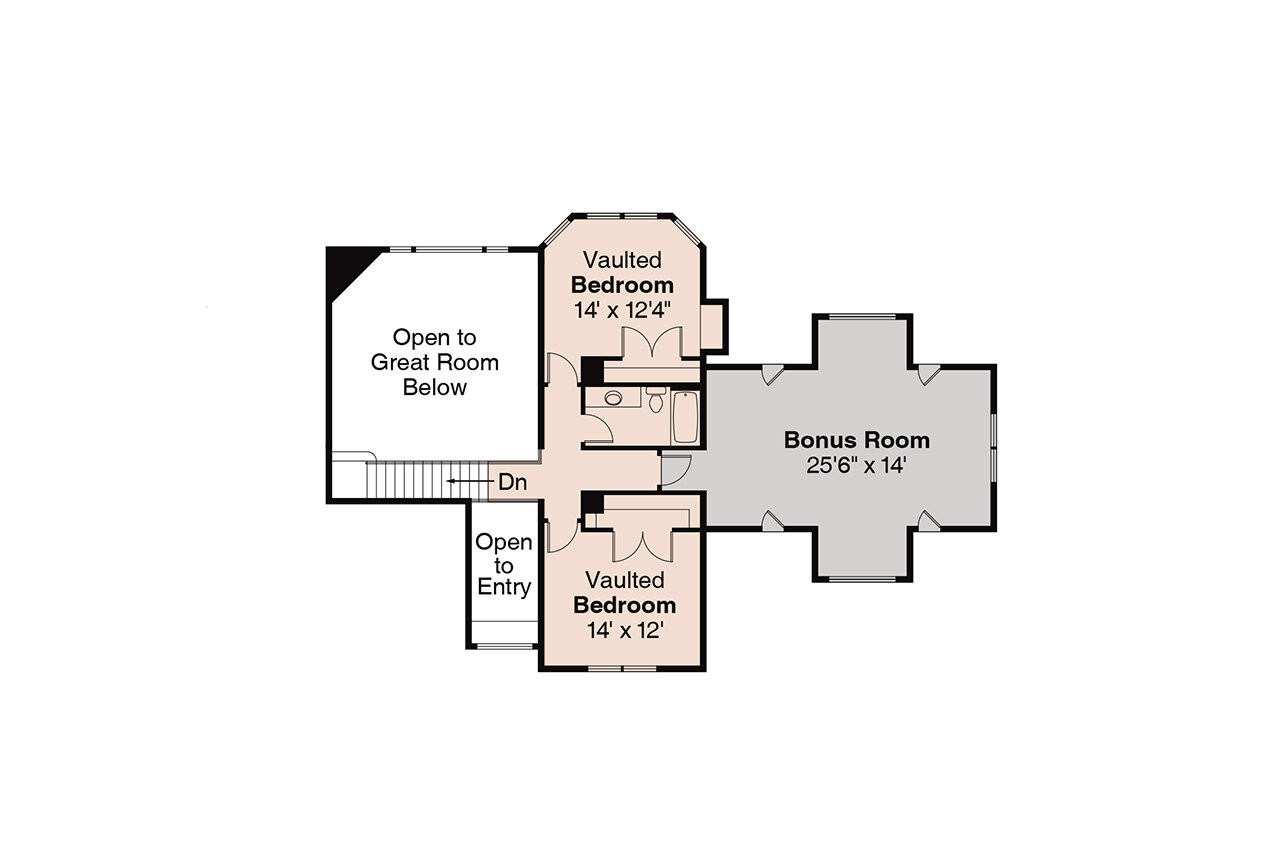

This two-story house plan has two additional bedrooms on the upper level. Each bedroom boasts vaulted ceilings while sharing a full bathroom. A bonus room is over the garage and adds flexibility to this best-selling house plan.
The classic Craftsman exterior and floor plan brimming with modern features and a contemporary layout makes the Tillamook home plan a favorite of homeowners and builders alike.
