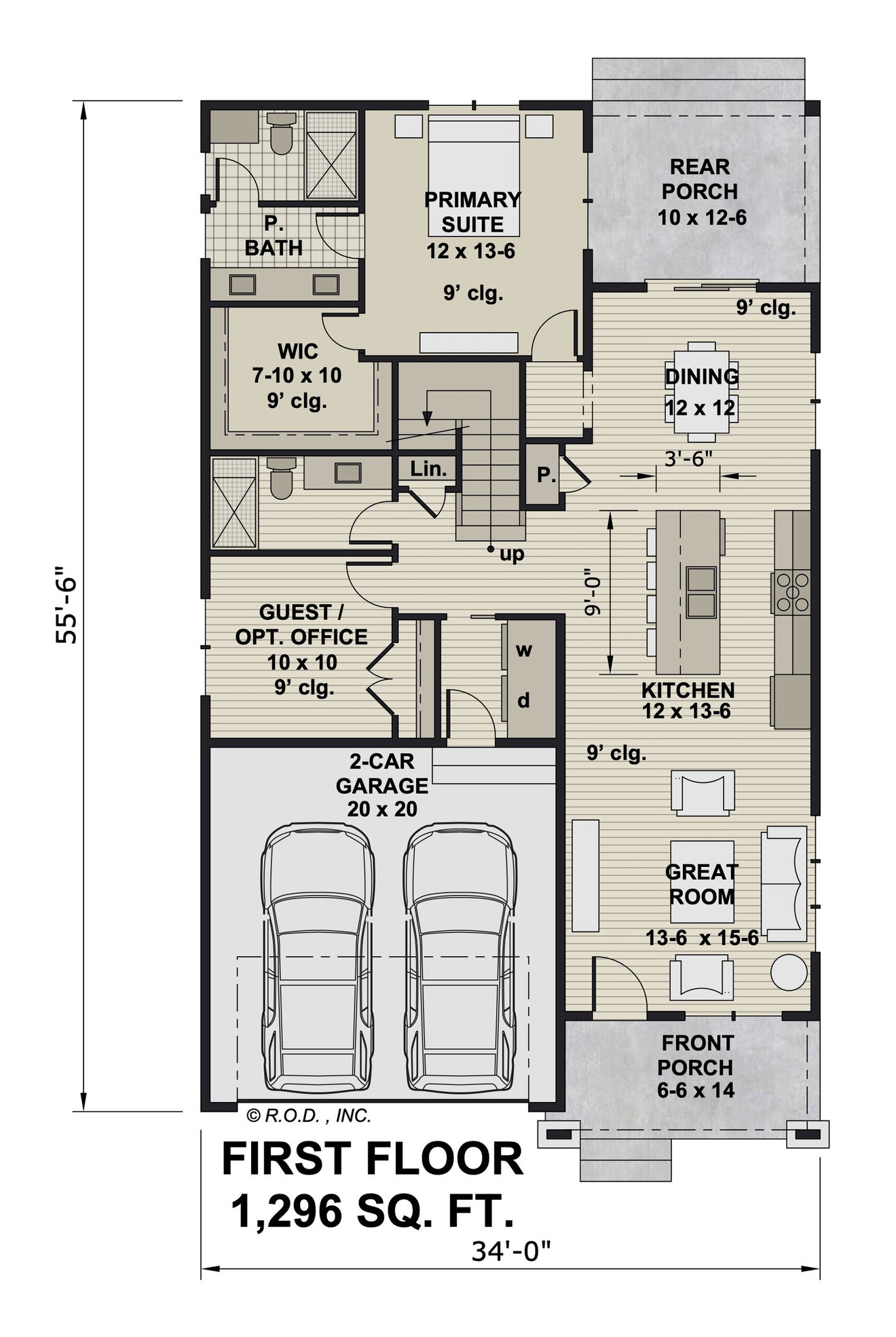

  • Bungalow House Plan - Darcey 46692 - 1st Floor Plan

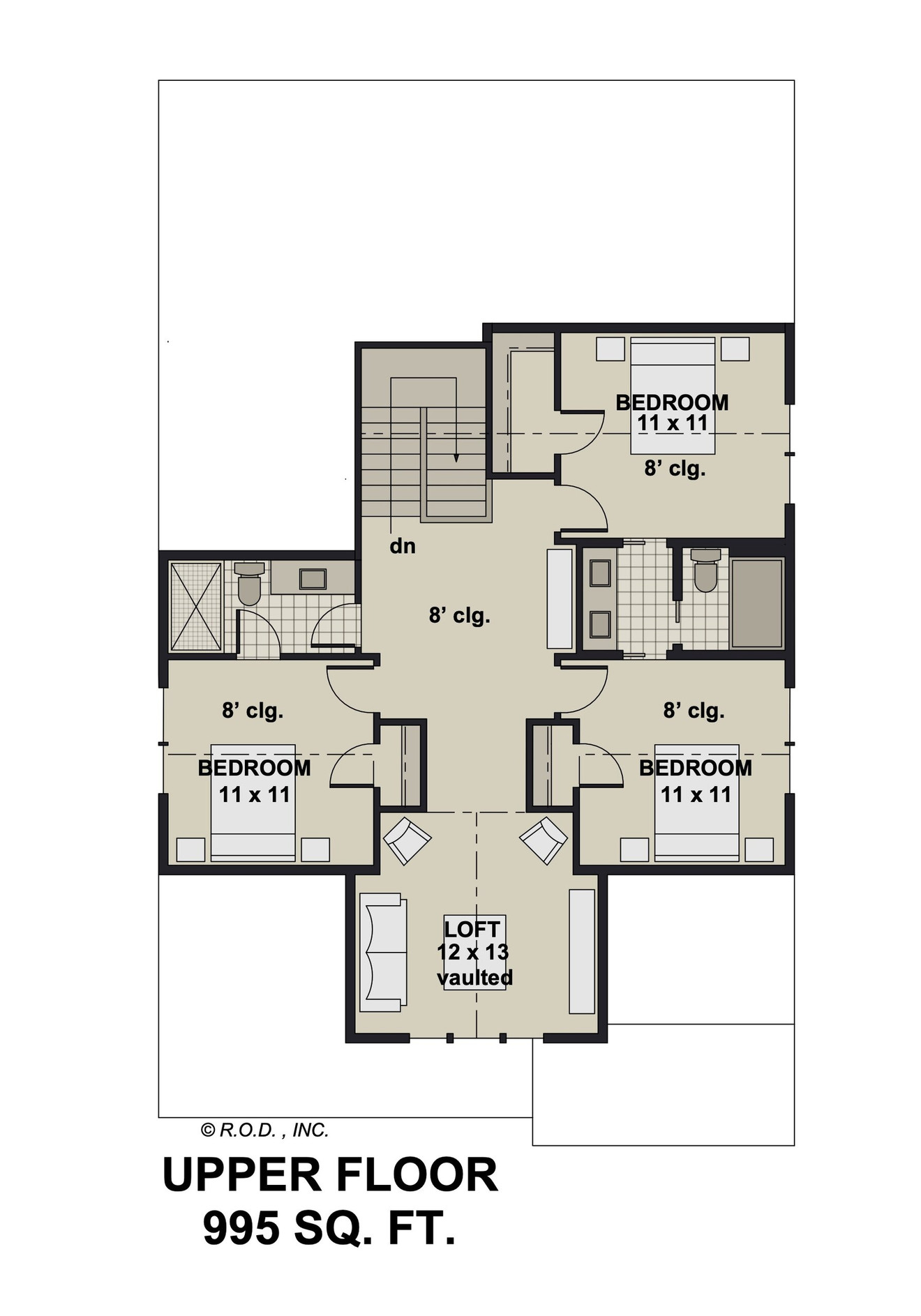

  • Secondary Image - Bungalow House Plan - Darcey 46692 - 2nd Floor Plan
  • At a glance
  • Square Footage: Total Living 2291 Square Feet
  • Bedrooms 4 Bedrooms
  • Baths Full 4 Full Baths
  • Floors 2 Floors
  • Garage Bays Min 2 Car Garage

Floor plan

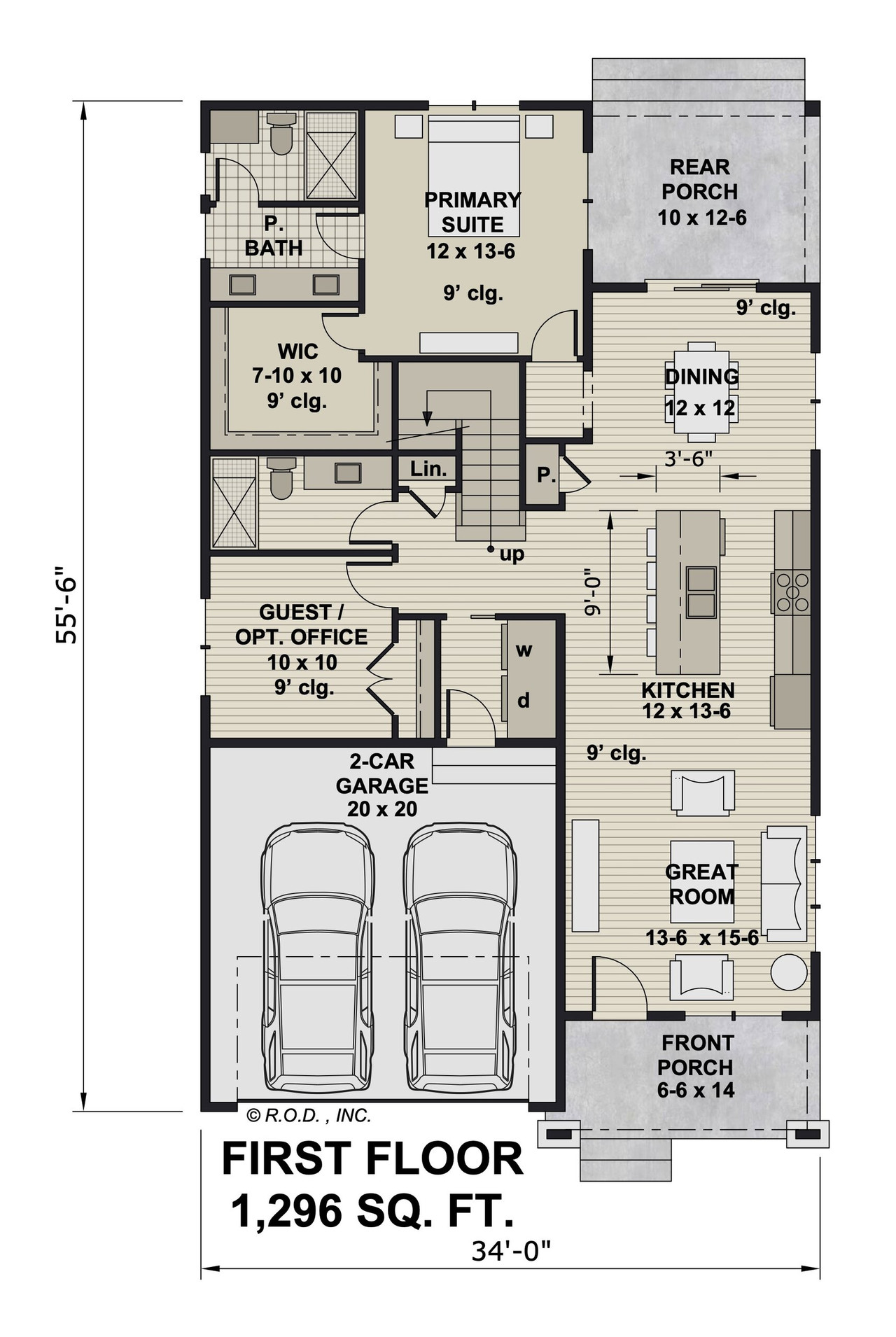

Bungalow House Plan - Darcey 46692 - 1st Floor Plan Icon_ionic-ios-expand
Secondary Image - Bungalow House Plan - Darcey 46692 - 2nd Floor Plan Icon_ionic-ios-expand

Contact HPC Experts

Have questions? Help from our plan experts
is just a click away.

To help us answer your questions promptly, please copy and paste the following information in the fields below.

Plan Number: 46692
Plan Name: Darcey
Your submission has been received!
item-icon

Free modification quote

Call Us 866-688-6970 or fill out our form.

Get Started
item-icon

Cost to build report

How Much Will This Plan Cost To Build?

Find Out
GetQuote

Free modification quote

Are you looking for additional plan options?

Get a Quote

Have questions? Prefer to order by phone? Give us a call: 1-866-688-6970

Adding to Cart The item has been added

Plan details

Basic Details

Building Details

Interior Details

Garage

What's Included in a Plan Set?

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

• Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

• Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

• Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

• Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Most basements come in an unfinished format.

• Roof Framing Plan: Shows roof outlines, slopes, and roof framing details, etc.

• Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/4" = 1' scale, and appear as needed throughout the prints.

• Electrical Plan: A schematic layout of all lighting, and switches.

That being said, depending on what part of the country you’re in, there might be a few additional pieces you need before you can obtain your building permit in order to get this thing started.

• Structural Engineering and Beam Calculations: Some places require plans to be reviewed by a structural engineer or a licensed architect. Ask your builder for locally recommended professionals. Otherwise, some lumber yards and truss companies may also be able to perform this service for you.

• Energy Calculations: This is usually done to your state’s energy code.

New to Plan Buying?

What You Need to Know About Purchasing Plans



You are about to embark on an exciting process, enjoy it!



Here is what you need to know about purchasing house plans from HPC:

 • Each designer and architect plans are created with their own unique style and content. Please be sure to read the "What's included in a Plan Set" tab, and if you don't see what you are looking for, be sure to give us a call.
 • The designs are not engineered. Check with the building department where the structure is being constructed to find out if an engineer's review is required. We can help facilitate engineering for your plan if you are unable to find a local professional who can assist you.
 • Your building department may also require a site plan of your lot be included with your submittal for a building permit. A local design

professional in your area should be able to help you with this as well as evaluating your chosen plan to make sure it meets the local building requirements for weather and seismic conditions.
 • Please read and understand your licensing agreement. This will clearly define what you can and can not do with your construction documents.
 • Electronic formats of packages sales (PDF & CAD Files) are final. Printed construction documents may be exchanged with an exchange fee within 30 days of purchase.
 • Unless purchasing an additional build license (one time additional or multi-build additional) you may build the structure one time. Ownership of the construction documents can not be transferred or sold.
 • Unless purchasing a printable package, you may not make additional copies of the plan without the permission of the designer.

Plan Packages Explained



Ready to purchase plans and unsure which construction package to choose? We hope the following can help you decide. Please note: Plan packages vary and may not be available on all plans.



1 Set Study Package


This is a single set of prints will allow you to completely review the plan, get accurate quotes for construction costs, and contemplate custom design changes you may wish to make. Study sets are marked Not For Construction and without the license necessary to legally build the home. Don't worry though, we allow a 100% upgrade credit towards a buildable licensed construction package within one year of your 1 Set Study Package purchase.



5 and 8 Set Print Packages


These are licensed print packages of the construction documents printed and shipped to you.



PDF Print Package


This PDF package is a non-modifiable, print only PDF file that saves time, gas, money, and paper! Many contractors and building jurisdictions are working with digital formats of the construction documents. The PDF print package allows for you or your contractor to distribute the construction documents to sub-contractors, use electronic submittals to apply for the building permit, and print the sets you need when you need them.



Plans Now

Don't wait - get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license - electronically signed and emailed to you immediately after placing your order - with permissions to make copies of the plan locally as needed.



PDF Master


An unlocked modifiable PDF file. Same conveniences as the PDF print package with the added benefit which allows your local professional to make engineering mark-ups or design changes using compatible software.



CAD Electronic Files


By using CAD compatible software that use .dwg or .dxf file formats enables you or a local professional to modify the construction documents and integrate those changes throughout the entire plan. Once the modifications or engineering is incorporated into your design, you can reproduce as many copies of the plan needed to build the structure.





Still unsure which package to choose? You may want to discuss this with your builder or give us a call.

How to Evaluate a Plan



When looking at plans, most often it's the exterior profile that will first grab your attention. You love the exterior, it's exactly what you envisioned, but what about the inside of the design? It's important to spend some time and digest the design's interior elements. Here are a few considerations to think about when evaluating if this is the right plan for you.



  First off, think about how you live in your home.
 • Do you or your family prefer to have one or two places to gather all together, or do you prefer to have more private places within your home.
 • Consider how you move through the home in your day to day life. Visually walk through the front door, what do you walk through or by? Do the same from your back door and garage entrances.
 • Is your family life more formal or casual and do the living spaces of the design complement your lifestyle?
 • Will your existing furniture fit within the spaces?
 • If you have a family, do you want the master suite close to the secondary bedrooms or separated?
  Do you entertain? Are there elements within the floor plan that allow for entertaining with ease?
  How do you take care of laundry? Would you prefer the laundry room to be close by the kitchen, garage, or close to the bedrooms?
  Storage space? Is there enough?
 • Consider your access to the outside? Do you want to extend your indoor living to the outside? Is there adequate porches or patios for how you want to enjoy your yard? Where will you place your grill or patio furniture?
 • The view? What are you going to see when you look out your windows? Need more privacy or need more accessibility to a view?
 • Make sure your garage will accommodate your cars, RV, or boat. Adequate storage? Do you want or need a door to the exterior beyond the opening garage doors? Utility sink? Space for an additional refrigerator or freezer?
  Consider things about your current home/residence that you don't like. By pin pointing these areas of your current home that you don't care for, you can make sure they are addressed in the next.


After reviewing giving it careful consideration you may find that the plan would be perfect with a few design changes. HPC can certainly help you with that with our customization services.

The Customization Process



So you've found that almost perfect design, and find yourself saying, "if only". Whether it's changing the size of a room, adding space or features, or moving things around, we can help you take that almost perfect design and make it perfect for you.



It's exciting to create a plan to fit your exact needs and wants whether it's your home, garage or even a potential investment property.



When you locate your plan, select the "Get Started" button located on the plan detail page. Here you will be able to share with us the changes to the interior and/or the exterior of the design. You can even upload a sketch if you have one. Complete the necessary contact information and select "Submit Request".



HPC will then forward your request to a designer to evaluate your changes and provide a quote within two business days. HPC is a "true quote" plan website. That means HPC will not mark-up the modification quote, we want to help keep costs down for you!

Darcey - 46692

Royal Oaks Design

$2,050.00
(No reviews yet) Write a Review
SKU:
236 - HBN-24-004-3B-1
Plan Number:
46692
Date Added:
11/20/2024
Date Modified:
05/19/2025
Designer:
sales@royaloaksdesign.com, kieran@royaloaksdesign.com
Designer Plan Title:
HBN-24-004-3B-1
Plan SKU:
HBN-24-004-3B-1
Plan Name:
Darcey
Max Price:
2700.00
Min Price:
2050.00
Pricing Set Title:
2000-3999 sq ft
Structure Type:
Single Family
Master Suite Features:
Main Floor Master Suite
Master Suite Features:
Separate From Other Bedrooms
Master Suite Features:
Shower Only
Master Suite Features:
Walk In Closet
Master Suite Features:
Walk-In Shower
Interior Features:
Casual or Open Style Living Room
Interior Features:
Den, Office, Library, or Study
Interior Features:
Great Room
Interior Features:
Loft
Interior Features:
Guest Room, Suite, or Apartment
Square Footage: Total Living:
2291
Square Footage: 1st Floor:
1296
Square Footage: 2nd Floor:
995
Square Footage: Garage:
420
Square Footage: Porch:
216
Floors:
2
FLOORS_filter:
2
Bedrooms:
4
BEDROOMS_filter:
4
Baths Full:
4
FULL BATHROOMS_filter:
4
Overall Exterior Depth:
55.6
Overall Exterior Width:
34
Main Floor Ceiling Height:
9'
Second Floor Ceiling Height:
8'
Available Foundations:
Crawl Space
Available Foundations:
Concrete Slab
Default Foundation:
Crawl Space
Available Walls:
2x4 Wood Frame
Available Walls:
2x6 Wood Frame
Default Wall:
2x6 Wood Frame
Ext Wall Material:
Lap, Shingles
Lot Type:
Narrow Lot (
Lot Slope:
Level Lot
Roof Framing:
Truss
Primary Style:
Bungalow
Secondary Styles:
Craftsman
Secondary Styles:
Ranch
Kitchen Features:
Breakfast Nook/Dining Area
Kitchen Features:
Kitchen Island
Kitchen Features:
Walk-In or Wall Pantry
Kitchen Features:
Eating Bar or Peninsula
Utility Room Features:
Close to Kitchen or Garage
Utility Room Features:
Mudroom or Mudhall
Utility Room Features:
Main Floor Utility Room
Exterior & Porch Features:
Covered Porch
Garage Type:
Attached
Garage Orientation:
Front Entry
Search Keywords:
Jack & Jill Bathroom
Garage Bays Min:
2
Garage Bays Max:
2
GARAGE BAYS_filter:
2
Styles:
Bungalow House Plans
Styles:
Craftsman House Plans
Styles:
Ranch House Plans
Collections:
2 Story House Plans
Collections:
4 Bedroom House Plans
Collections:
Narrow Lot House Plans
Regions:
Midwest House Plans/Minnesota Home Plans
Product Rank:
201

Nestled within a lush suburban landscape, the Darcey home plan welcomes you with timeless character and warmth. A perfect fusion of traditional charm and modern efficiency, this Craftsman Plan showcases distinctive architectural details from the tapered columns on the spacious front porch to the intricate gable brackets above. With rich, earthy textures from shake siding to the paneled garage doors, the exterior radiates curb appeal while offering functionality beneath its refined aesthetics.

Upon entry, the front porch invites moments of relaxation while setting a welcoming tone. The covered space comfortably fits outdoor seating, and just inside the front door, a bright foyer leads seamlessly into the heart of the home. At 1,296 square feet, the main level of this 2 story plan features a layout that promotes comfort, convenience, and flexibility.

The main living area is open and airy, thanks to the 9-foot ceilings throughout the first floor. The great room is designed with both gathering and relaxation in mind, featuring generous space for seating and easy flow into the dining area and kitchen. Natural light spills through the large rear-facing windows, giving the interior a cheerful glow. The kitchen itself is a modern chef’s delight, with a central island perfect for food prep, casual dining, or socializing. A walk-in pantry offers ample storage, maintaining the sleek, uncluttered look of this elegant hub.

Adjacent to the kitchen is a door leading out to the rear porch, an ideal spot for outdoor dining or morning coffee. This covered space ensures that the home’s indoor-outdoor connection remains strong throughout the seasons.

Privately situated on the main floor, the primary suite is a serene retreat. With dimensions of 12 by 13 feet 6 inches and a large walk-in closet, it provides comfort and functionality. The en suite primary bath features dual vanities and a separate shower, ensuring daily routines are both efficient and luxurious. Just down the hall is a flexible space marked as a guest/optional office, measuring 10 by 10 feet. This room exemplifies the smart design that allows for adaptability depending on the homeowner's needs—be it for hosting guests, working remotely, or studying.

The Darcey plan artfully incorporates Ranch Elements, especially visible in its easy, main-level living potential. The primary suite and guest room placement enable single-floor functionality, ideal for aging in place or multi-generational households. Yet, the layout seamlessly transitions into a true 2 story home with its expansive upper level.

Upstairs, three identically sized bedrooms (each 11 by 11 feet) provide cozy private spaces for children or guests. An additional full bathroom serves this floor, thoughtfully placed for shared access. At the center of the upper level is a vaulted loft space measuring 12 by 13 feet—an excellent spot for a secondary living room, playroom, or media area. Its position at the top of the stairs and its open design foster connectivity while still allowing privacy in the surrounding bedrooms.

Together, the two floors of the Darcey plan offer 2,291 square feet of meticulously planned living space. The attached two-car garage not only accommodates vehicles but provides convenient access to the laundry area and kitchen—streamlining daily routines.

With its well-balanced blend of Craftsman Plan charm, modern convenience, and Ranch Elements for ease of living, the Darcey plan stands out as a thoughtful and adaptable design. Whether you're a growing family, remote professional, or empty nester, this four bedroom home offers the versatility to evolve with your lifestyle. The home’s balance of open communal areas and quiet personal spaces ensures it meets today’s needs while staying timeless in appeal.

These plans are spin-off designs and closely related to the original plan you found. One of these
may fit your design goals! Click View Details to get a closer look.

1 Set Package

One printed set of construction drawings. Includes a single build license.

1 Set Study Package

A single review set of the construction drawings marked Not For Construction and do not include a license to build. Upgrade to a licensed construction package or sign on for modifications within 1 year of purchase and received a 100% upgrade credit.

3 Sets

Three printed sets of construction drawings. Includes a single build license.

3 Set Package

Three printed sets of construction drawings. Includes a single-build license.

4 Sets

Four printed sets of construction drawings. Includes a single build license.

3 Sets + PDF Print

Three printed sets of construction drawings plus a Print PDF (non-modifiable). Includes a single build license.

4 Set Package

Four printed sets of construction drawings. Includes a single build license.

5 Set + Print PDF

Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

5 Sets + Print PDF

Five printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

5 Set Package

Five printed sets of construction drawings. Includes a single build license.

5 Set with PDF

Five printed sets of construction drawings plus a PDF copy of the construction drawings.

5 Sets with PDF

Five printed sets of construction drawings plus a PDF copy of the construction drawings.

6 Set Package

Six printed sets of construction drawings. Includes a single build license.

8 Set + Print PDF

Eight printed sets of construction drawings plus a Print PDF (non-modifiable, print only). Includes a single build license.

8 Set Package

Eight printed sets of construction drawings. Includes a single build license.

8 Sets with PDF

Eight printed sets of construction drawings plus a PDF copy of the construction drawings.

CAD + PDF

A digital plan package which includes both CAD (DWG) and PDF Files. Includes a single build license which allow the plans to be modified and reproduced locally.

CAD + PDF Unlimited

A digital plan package which includes both CAD (DWG) and PDF Files and includes an unlimited build license.

CAD Masters

A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Masters are emailed saving shipping costs and time.

CAD Package

A digital copy of the construction drawings in a DWG file format. Includes a single build license with permissions which allow the plan to be modified and reproduced locally. CAD Packages are emailed saving shipping costs and time.

CAD w/Multi-Use License

A digital copy of the construction drawings in a DWG file format. Includes a multiple build license with permissions which allow the plan to be modified and reproduced locally. CAD Packages are emailed saving shipping costs and time.

Concept Plan Package

Includes both PDF and DWG files of the Elevations, Floor Plan(s), and Roof Outline which can be used by a local design professional to complete the construction documents to site specific requirements, conditions and building practices. Includes a non-transferable unlimited build license.

Construction Package

Five printed sets of construction drawings that include a material list and a PDF (small size).

Master Builder CAD Set

A digital plan package which includes both the PDF Master and CAD Master (DWG) and includes an unlimited build license.

PDF Bid Set

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

PDF File

A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.

PDF Master

A digital copy of the construction drawings in a PDF format. Includes a single build license with modification permissions so a local professional with compatible software can make changes to the plan. PDF Files are emailed saving shipping costs and time.

PDF Print Package

A digital copy of the construction drawings in a PDF format (non-modifiable, print only). Includes a single build license with permissions to make copies of the plan locally as needed. The PDF Print Package is emailed saving shipping costs and time.

PDF Print Package + 1 Set

One printed set of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 2 Sets

Two printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 3 Sets

Three printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 4 Sets

Four printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Print Package + 5 Sets

Five printed sets of construction drawings plus a PDF Print Package (non-modifiable, print only). Includes a single build license.

PDF Study Set

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

PDF Unlimited

A digital copy of the construction drawings in a PDF format that includes an unlimited build license.

PDF w/Multi-Use License

A digital copy of the construction drawings in a PDF format. Includes a multiple build license with permissions which allow the plan to be modified and reproduced locally. This package is emailed saving shipping costs and time.

Plan Package

A digital plan package which includes the PDF Master, CAD Master (DWG), and Sketchup Pro Files (.layout). This package is emailed saving shipping costs and time.

Plans Now

Don’t wait – get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license – signed during check out – with permissions to make copies of the plan locally as needed.

Preliminary Set

One printed set of the elevations and floor plan(s) for study and review. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Pricing Package

One printed set of the elevations and floor plan(s) plus a material list.

Reproducible Vellums

One printed set of construction drawings on transparent paper. Includes a single build license with permissions to modify and reproduce the plans. Modifications to this plan package are made by hand.

Review Set

A digital study set of the elevations and floor plan(s) only. The review set is not to scale. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Study Set via Email

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

Study Set via email

A digital review set for bidding and personal study in a PDF format. Marked Not For Construction and does not include a license to build. Upgrade to a licensed construction package or proceed with plan customization services and receive a 100% credit (valid within 1 year of purchase).

5 Set Package Kit

Bundled savings! Includes 5 Print Sets of construction drawings, a PDF formatted to print 11’x17”, and a material list. Please note that the PDF may not be to scale.
