Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to plan buying?
Madrone's quaint facade evokes a sense of southern hospitality. Composition shingles, lap siding, shake texture siding, and a metal chimney pipe makes this ranch house plan even more delightful. The expansive, wrap-around covered porch is an excellent place to spend lazy summer afternoons on a rocking chair, drinking sweet tea, and reading the local newspaper.
In the back of the home, the patio can be used for private outdoor entertainment. Put in a barbecue and furnish the space with outdoor seating. During the weekend, lounge around and bask in the sun. On warm nights, invite family and friends over for dinner out on the patio.
Inside, the house is relaxed, comfortable, and chic. Stepping into the entryway, you will find a nearby coat closet for your convenience.
The vaulted living room, dining room, and kitchen join together into one lofty great room. This allows the rooms to have a sense of fluidity.
A wood stove can be found tucked in the corner of the living room. The stove provides warmth to the gathering spaces, without raising your electricity bill. The wood stove also has a rustic charm.
The bright, airy kitchen is complete with ample counter space, deep pantries, built-in appliances, and a kitchen island with a flush eating bar. The eating bar is the perfect space to drink coffee with friends, prepare an afternoon snack, or help out with homework.
Close to the kitchen, there is the vaulted utility room. The area includes laundry appliances, a deep sink, a walk-in pantry, a broom closet, and a bench with storage below.

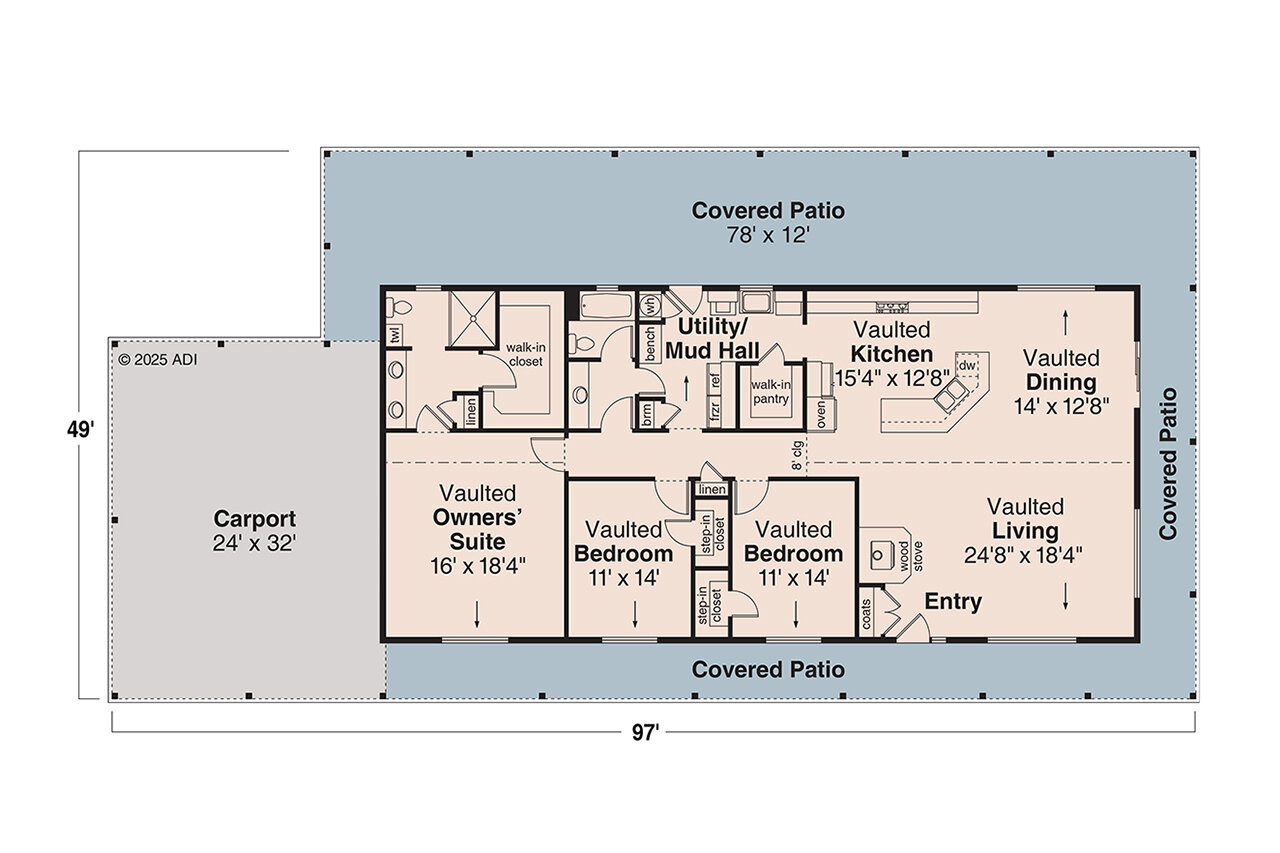

This three bedroom house plan has two vaulted bedrooms share a bathroom with a tub and shower combo. Each bedroom has a step in closet.
The vaulted owners’ suite is a serene space. The expansive suite has a beautiful walk-in closet and a private bathroom. The private bathroom boasts a spacious shower and dual vanities.
The attached carport can fit two vehicles.
