Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

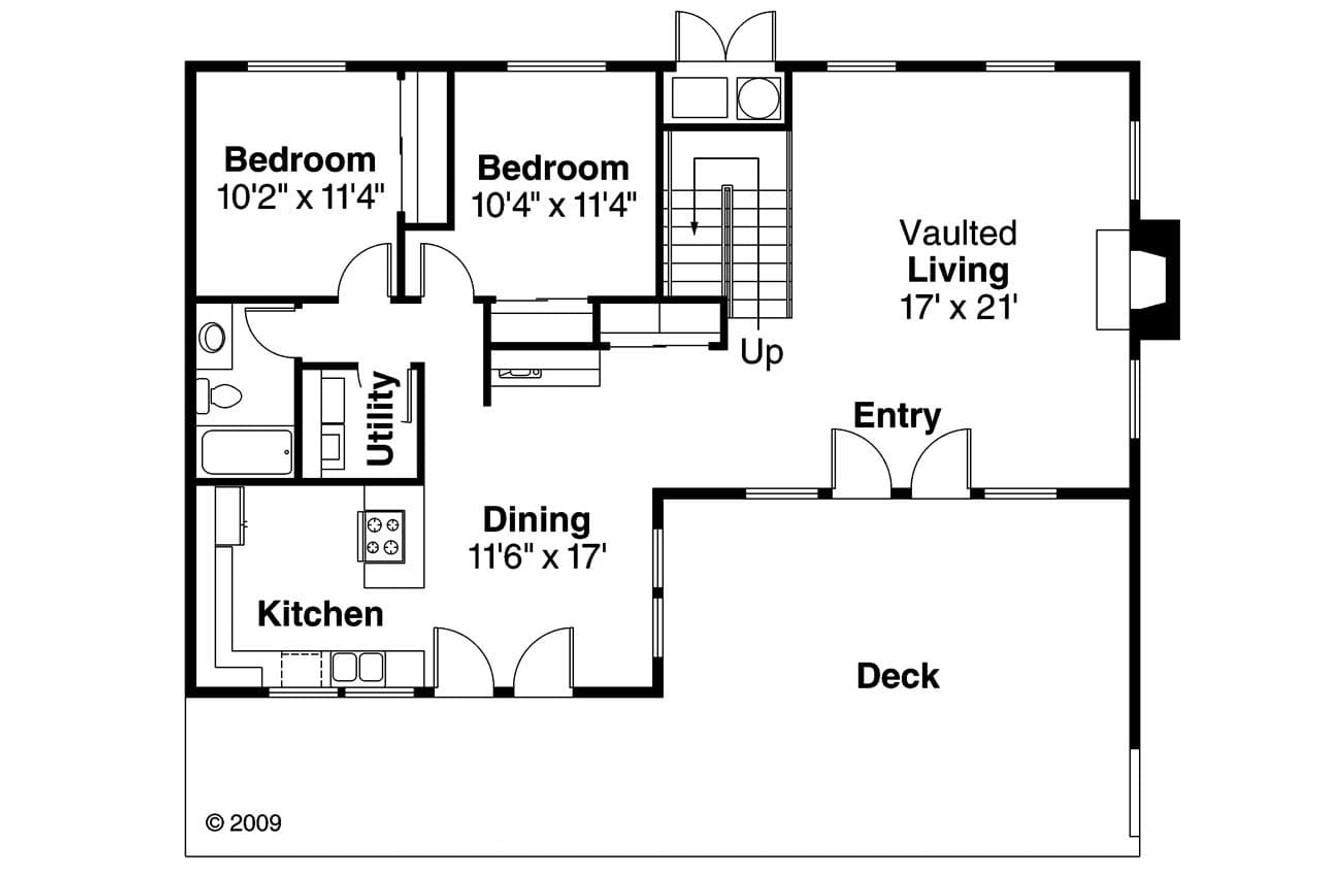

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to plan buying?
The Cascade is a cabin plan that is awash in natural light. This updated A-frame house plan has 16 skylights in addition to the richly windowed walls. Designed as a vacation home, the Cascade is at home in the mountains or low lands along a lake or river. The abundant windows and large outdoor gathering space are waiting to take in any view.
Entering from the expansive deck into the living room will almost feel like you are still outside. Half of the skylights sit over the living room. Combined with the vaulted, exposed-beam ceiling and tall windows this space allows as much of the outdoors in as possible and is naturally bright and cheery. When the days become a little shorter and darker, a central fireplace will continue to brighten and warm the living room.
The award for the next brightest room is shared between the owners' suite and the combination kitchen/dining room. The owners' suite has the other half of the 16 skylights in its vaulted ceiling. The addition of diamond-shaped windows, on opposite ends of the room, boost the amount of light. The sleeping area of the owners' suite even has a lower window, for appreciating the view, and a glass door that opens to secluded second story deck.
Designed as a loft, the owners' suite is completely open to the living room below on one side. A unique feature in the Cascade's owners' suite is the ladder that is centered in the room and leads to an 11-by-10-foot third story loft. Complete with views of the outside as well as the remainder of the owners' loft. Additional conveniences of the owners' loft include a private bathroom along with walk-in closet.
Large windows bathe the kitchen/dining area with light from two sides. A pair of doors open out on to a large deck while another set of windows over the sink allows for full enjoyment of the view. An oven and range, incorporated into the eating bar, along with a wet bar in the dining room, allow for convenient food service.
Two additional bedrooms, a little utility room, and a full bathroom fill in the remaining space of the Cascade's main floor. When snow is in the forecast, the steep metal roof handles and shrugs off the snow easily.
