Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to plan buying?
The clean, symmetrical exterior of the Ellington, a traditional colonial-style house plan, would be a welcome addition to any neighborhood. The two-story floor plan allows for places to gather or places to find quiet solitude.

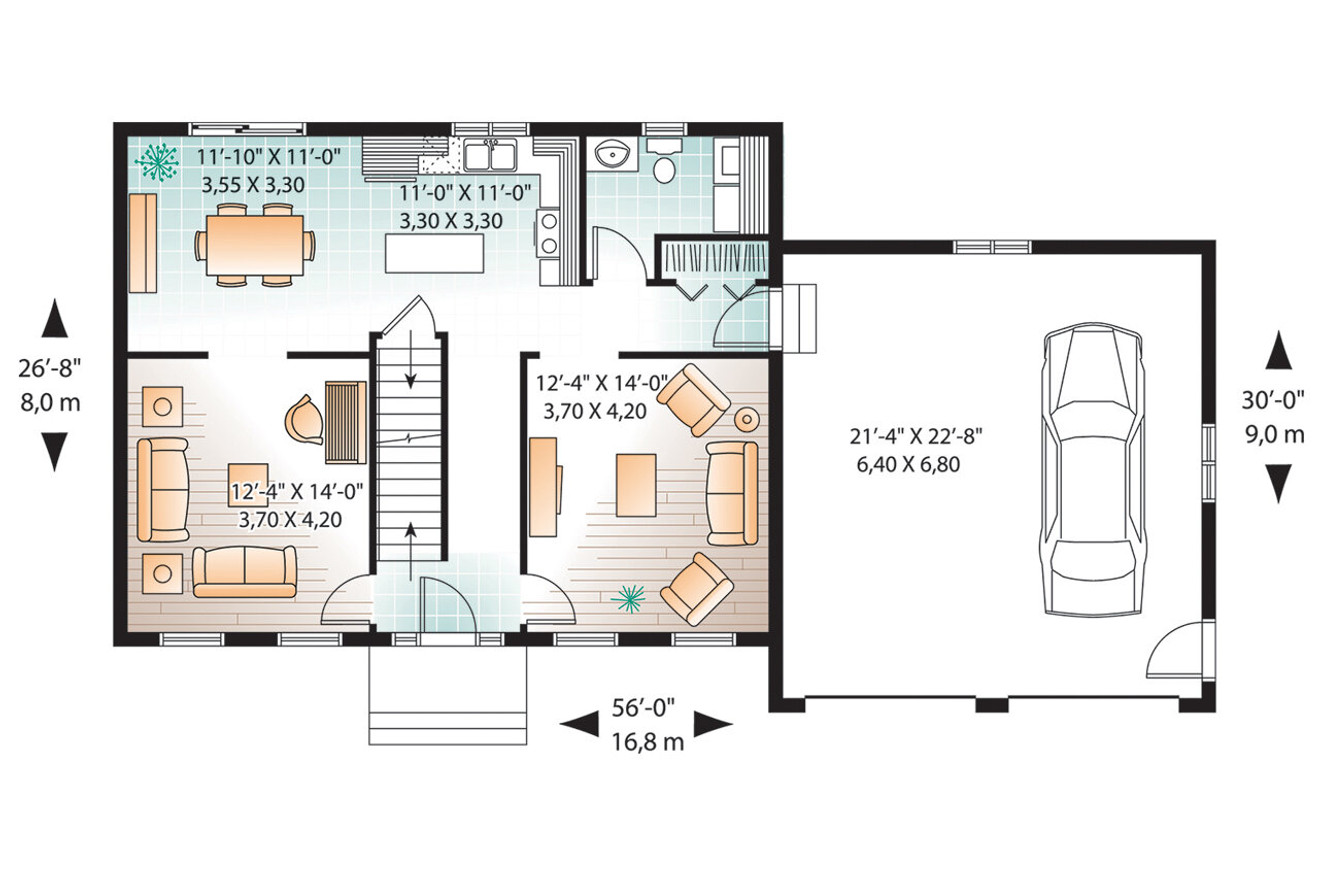

Through the elegantly framed front door, you walk into an entry hall lined with stairs on one side and a blank canvas on the other, perfect for hanging family photos and artwork. Either way you turn, left or right, from the front door, you will walk into a well-defined living space. These two living spaces allow for multiple gatherings to take place at once, so one could host the game while the other hosts a book club.
The back of each living space leads into the dining and kitchen area. The area is spacious enough to cook a feast with a convenient kitchen island and ample counter space. The dining area next to the kitchen is roomy enough for a dining table and a bar or china hutch. This room also has a sliding door leading into the backyard which would be a great opportunity for a patio or covered porch to add an area for outdoor enjoyment.
The main floor also has a half-bath for guests and the utility room. Located next to the garage for easy cleanup access before muddy children are let loose in the house.

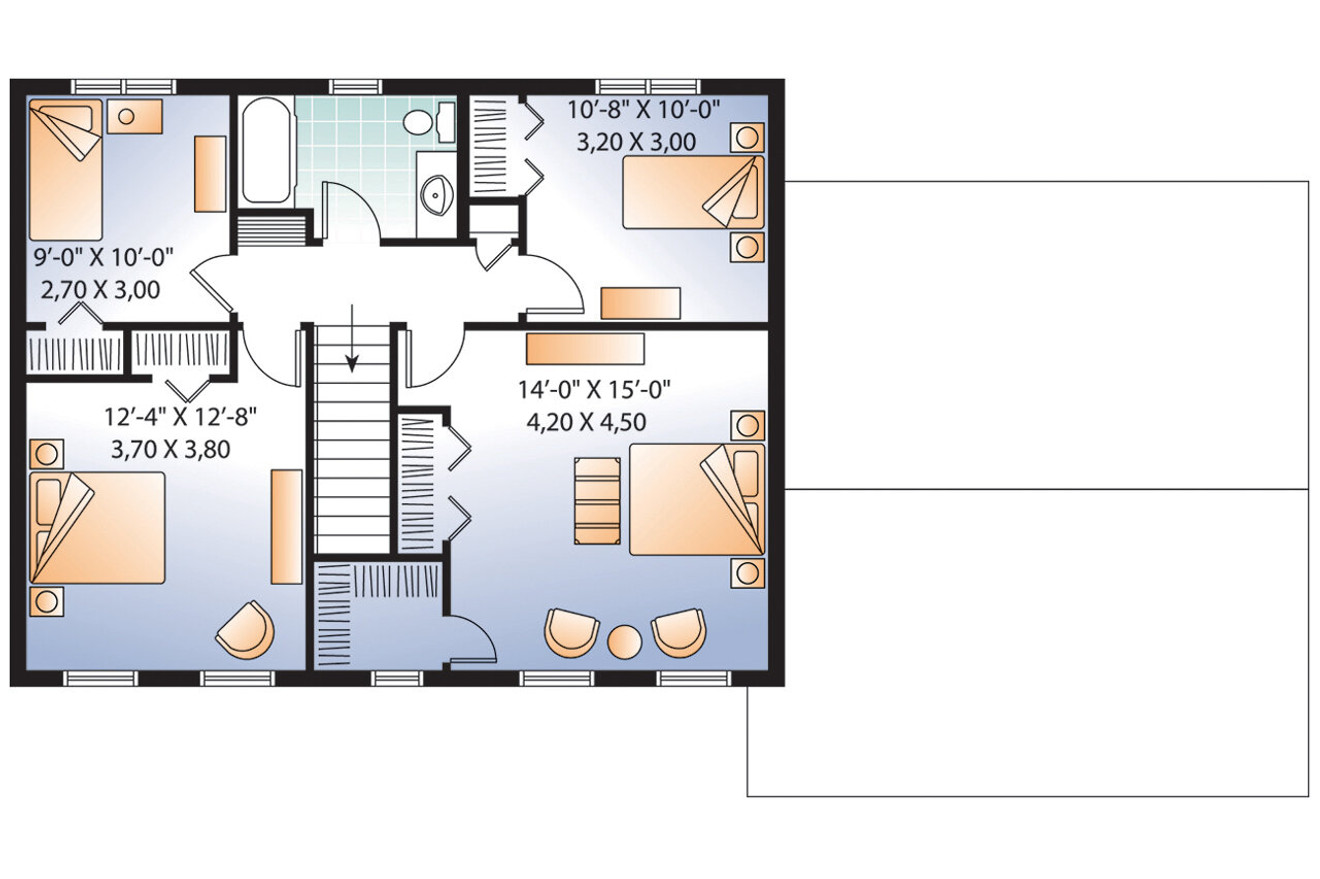

The second level is dedicated to bedrooms. The floor plan is well thought out, fitting four spacious bedrooms and a full bath. The largest room is appointed for the master suite and has two closets, one of which is a walk-in.
