General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details
First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?

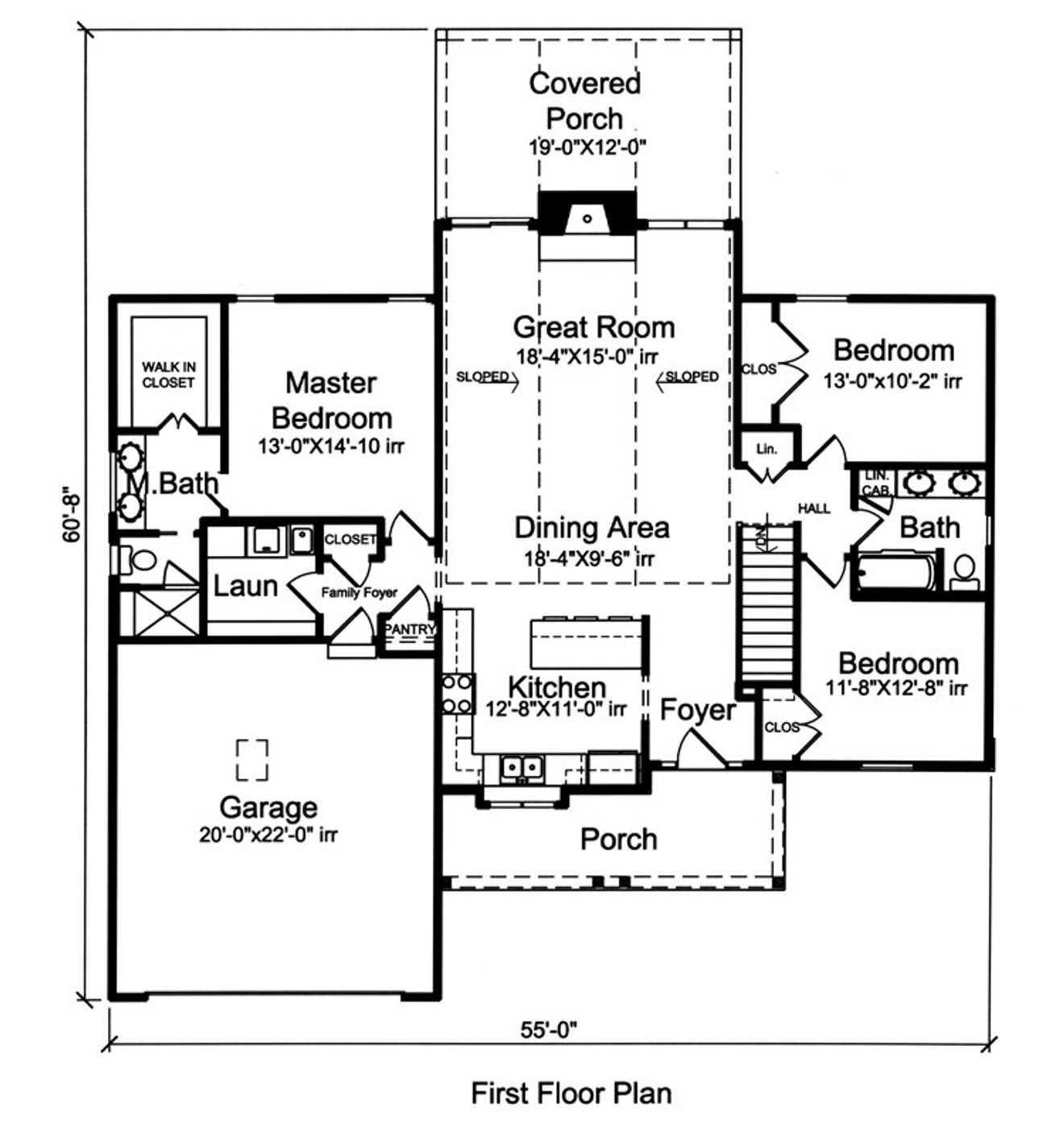

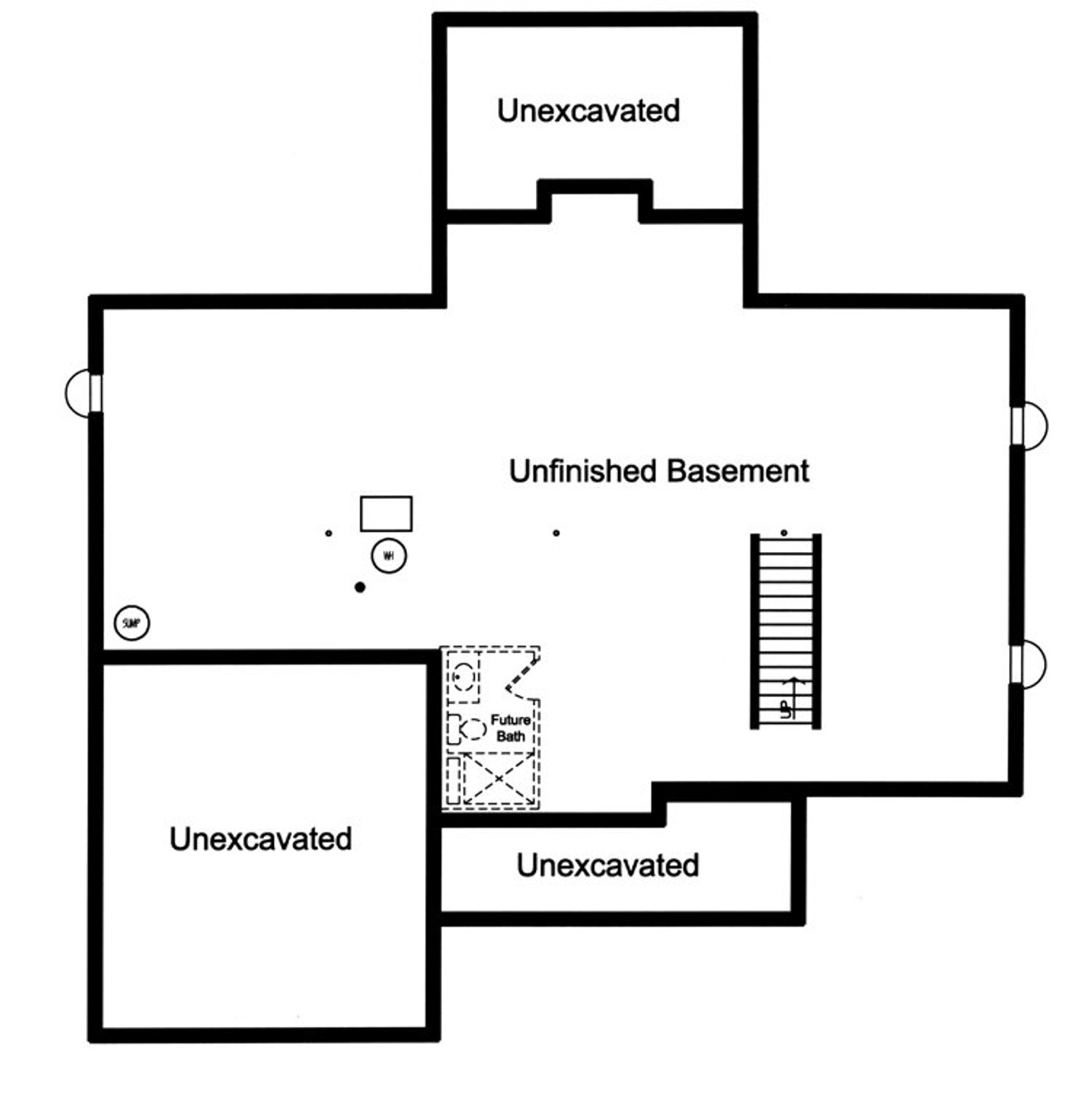

This charming cottage style home offers a wonderful option as a choice for an empty nester, first time homebuyer or vacation home. Siding and stone decorate the exterior while the covered front and rear porches provide for outdoor enjoyment. Split bedrooms offer privacy for the Master Suite featuring a walk-in closet, double bowl vanity and private shower and commode room. The Laundry room is conveniently located near both the master suite and the garage. The center of the home showcases a kitchen with a bar and seating, a formal dining area and Great Room with Fireplace. 9 foot ceiling are typical throughout the home with the ceiling in the Great Room/Dining Area vaulting to 12’. A gas fireplace warms the entire space. Two additional bedrooms set to the opposite side of the home and a bath with double bowl vanity and Linen cabinet complete the first floor..This home comes with a full unfinished basement offering additional living space if needed.
