Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to plan buying?

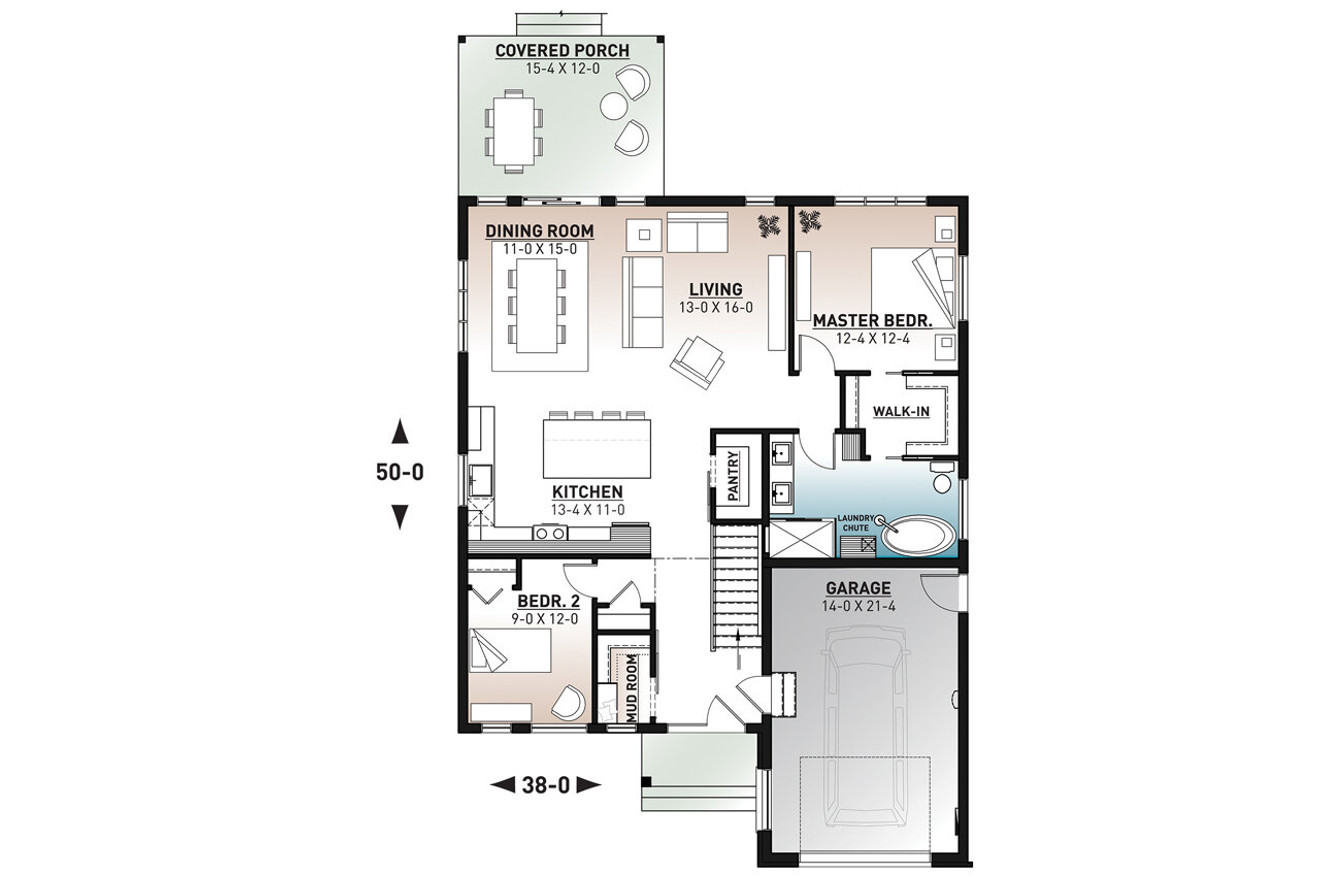

The Urban Valley 3 is a handsome modern craftsman house plan. A slender post frames the front door creating a welcoming first impression. The entry is roomy and features a mud room for coat and shoe storage immediately to the left and tucketed behind a pocket door. To the right is access to the attached 1 car garage. Down the entry hall there is a split off to the additional bedroom in this 2 bedroom home design. The back of the floor plan opens to the great room, where living room, dining room, and kitchen are all open to one another. The pantry takes advantage of the under stair storage and is convienent to the kitchen which is filled with modern applicances along with a large island with eating bar. Sliding glass doors off the dining room open the space up to the generously sized covered porch, ideal for those who love outdoor living and entertaining. The master bedroom fills the back right corner of the floor plan and features a walk-in closet with a pass-through connection to the shared bathroom complete with dual vanities, separate shower and soaking tub. At only 38' wide, the Urban Valley 3 is an ideal home plan to consider for those building on narrow lots.
