The foundation underneath the recreation room is a crawl space foundation.
Construction Drawing Packages:
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Concept Plan Packages:
Includes PDF and DWG files of the:
Floor Plan (s)
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to plan buying?

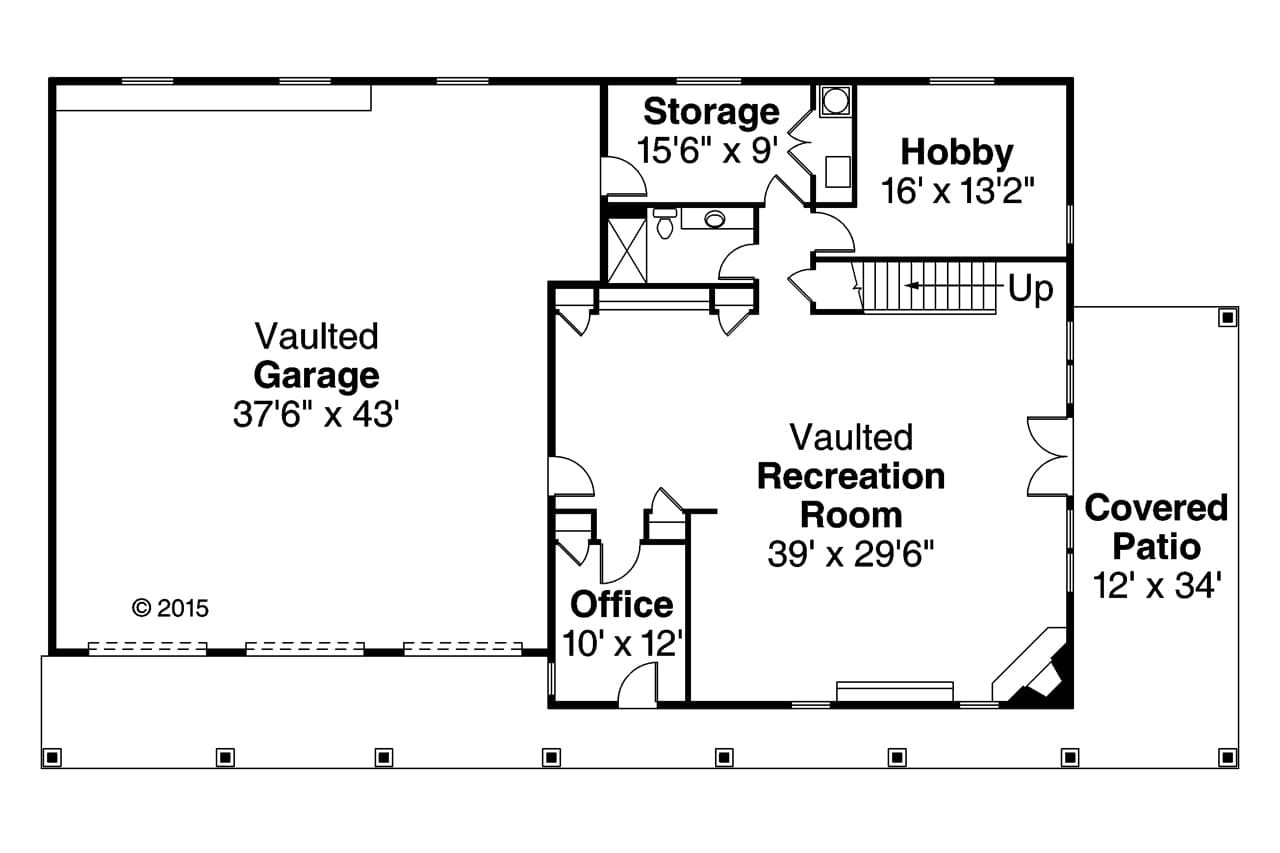

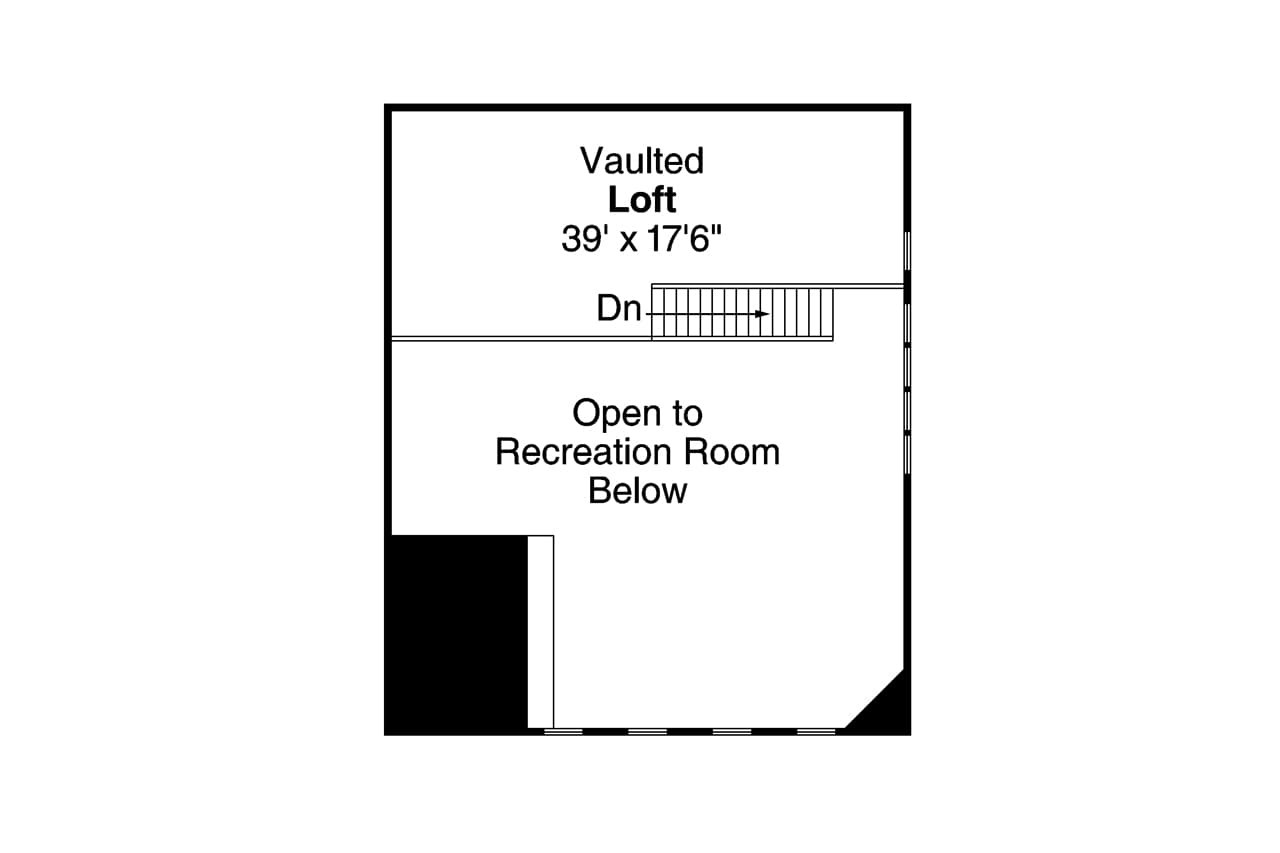

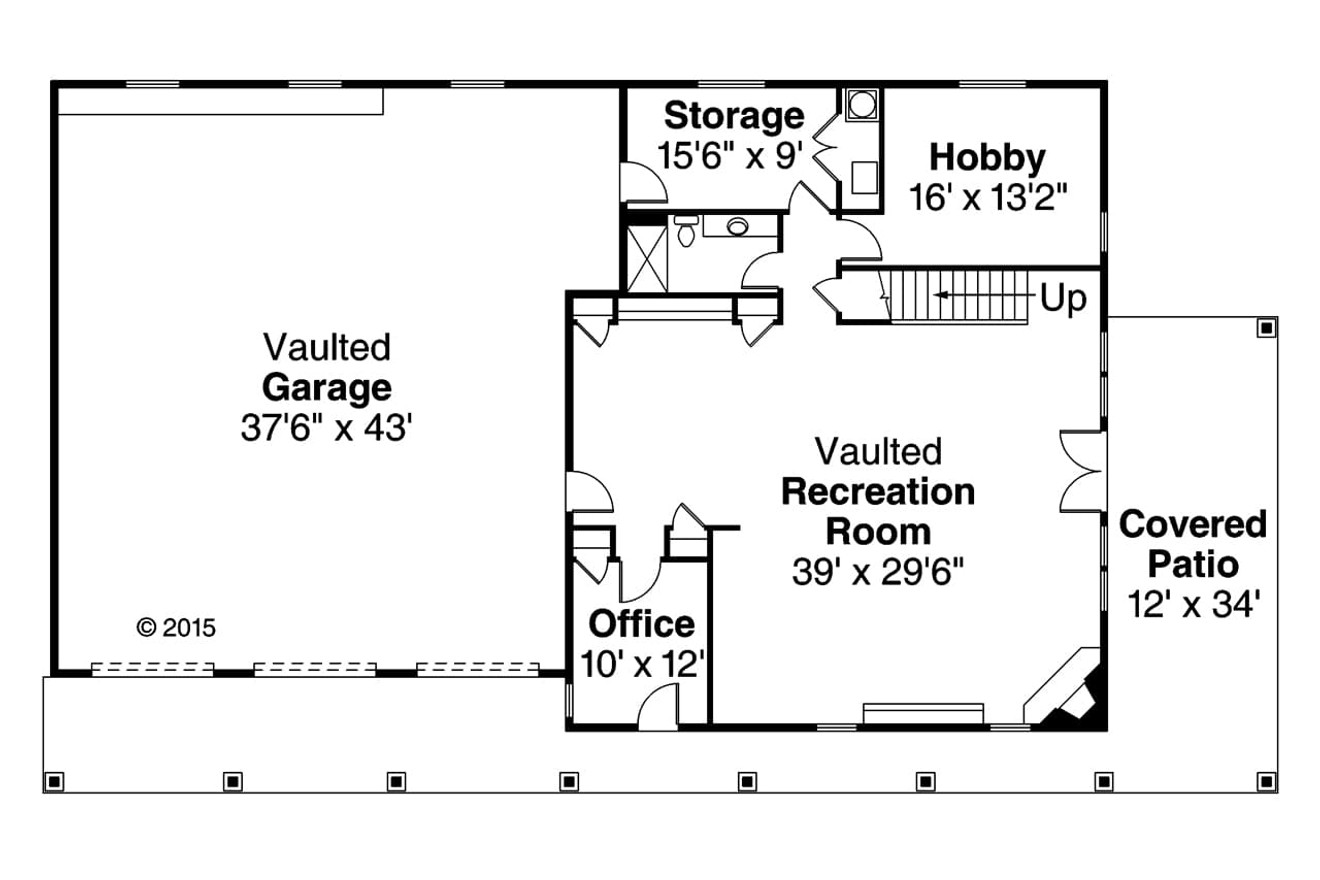

This country-style garage plan provides lots of space for both cars and people. The vaulted garage has three bays each with 9' wide and 8' tall garage doors. You can either house three cars, leaving plenty of storage and workspace in the rear of the garage, or you can stack two cars in each bay to house up to six cars! On the right is a large, vaulted recreation room which features a corner fireplace. Additional spaces include an office, hobby, storage and full bathroom. There is also a vaulted loft which is open to the recreation room below.
