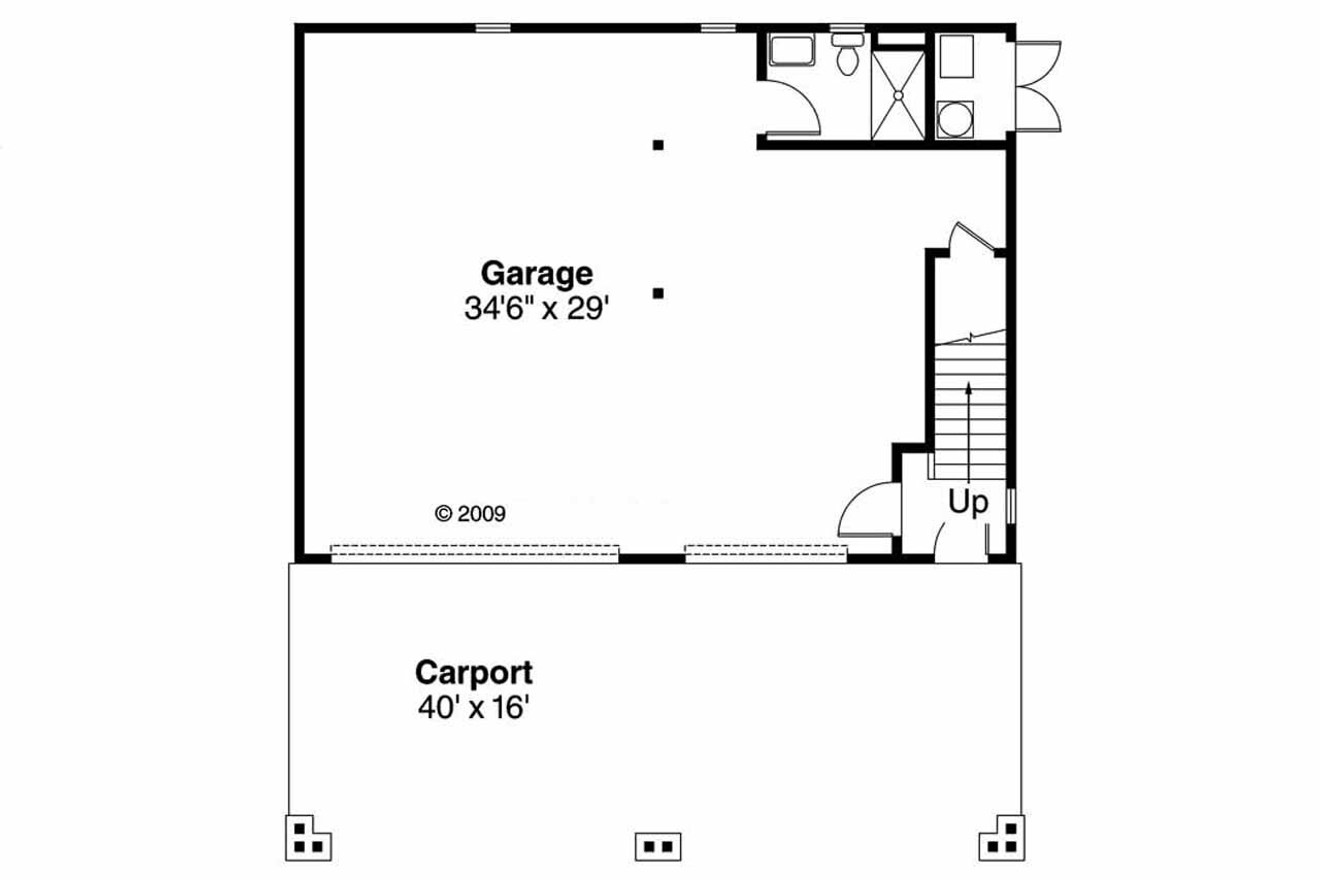

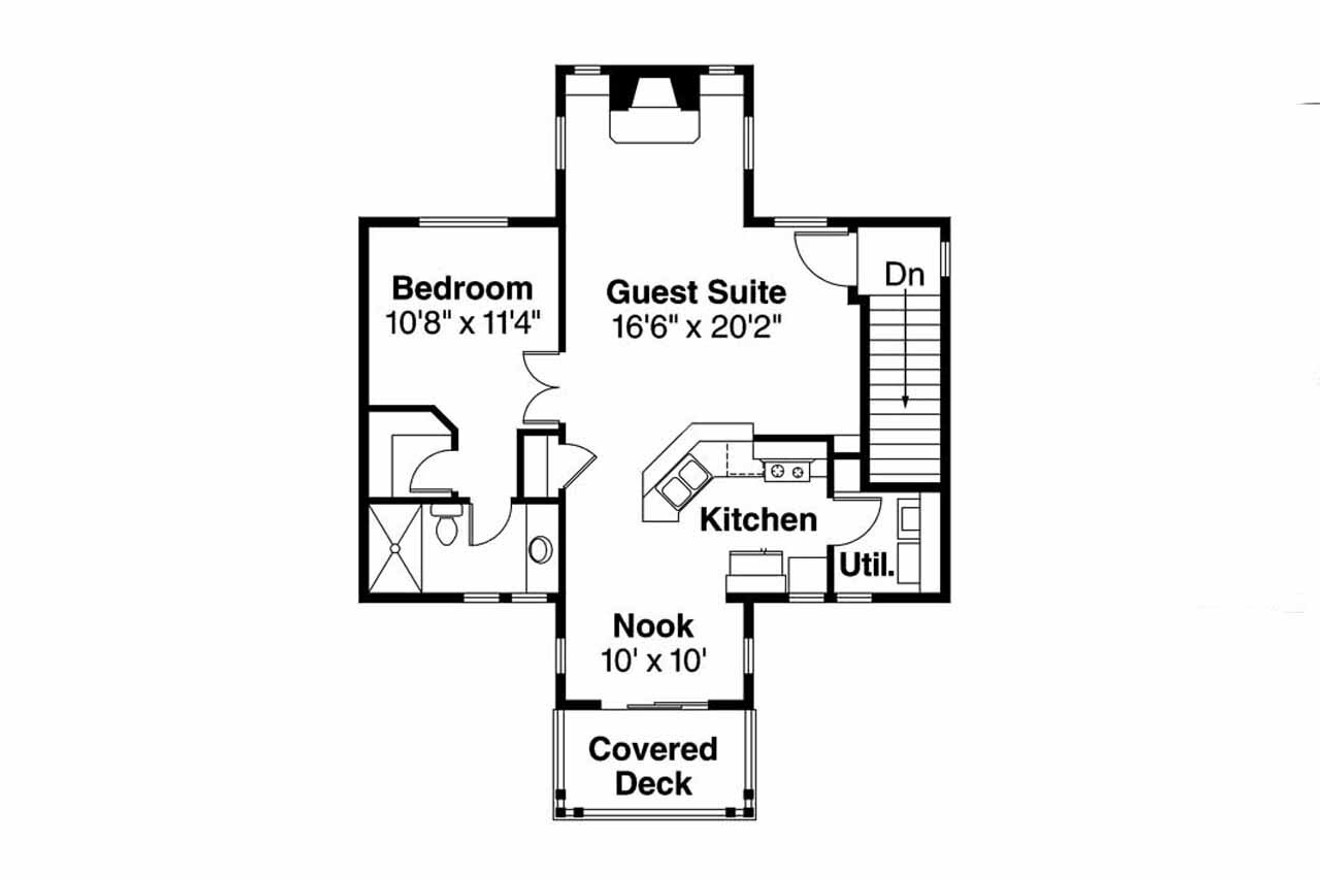

This garage plan can house up to 5 cars. The larger two car door is 16' wide and 8' tall, while the smaller door is 9' wide and 8' tall. This garage plan also has a guest apartment on the second floor. The guest apartment features a walk-in closet with full bathroom in the bedroom. As well as a fireplace in the great room that can be enjoyed from the kitchen and nook. There is also a utility room that is accessed through the kitchen.
Plan 11603
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
1999
Square Feet
-
1
Bedrooms
-
2
Full Baths
-
2
Floors
-
5
Car Garage
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Contact HPC Experts
Have questions? Help from our plan experts
is just a click away.
To help us answer your questions promptly, please copy and paste the following information in the fields below.
Let’s be social
Connect with us for the latest from HPC
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Concept Plan Packages:
Includes PDF and DWG files of the:
Elevations
Floor Plan (s)
Roof Outline
The concept plan package can save you valuable time and resources by providing the essentials of the design allowing for a local designer, architect, or engineer to complete the construction documents to the building practices, requirements, and site conditions in your area. Concept plans include an unlimited build license (non-transferable).
New to Plan Buying?
11603
Associated Designs
$0.00
- SKU:
- 101 - 20-052
- Plan Number:
- 11603
- Pricing Set Title:
- Efficiency Series
- Designer Plan Title:
- 20-052
- Date Added:
- 06/21/2017
- Date Modified:
- 01/18/2023
- Designer:
- info@associateddesigns.com
- Note Plan Packages: PDF Print Package:
- Best Value!
- Note Plan Packages: Plans Now:
- PDF Download!
- Structure Type:
- Garage
- Best Seller (Rank #):
- 29
- Square Footage: Total Living:
- 1999
- Square Footage: Garage:
- 1200
- Square Footage: Guest Suite:
- 799
- Floors:
- 2
- FLOORS_filter:
- 2
- Bedrooms:
- 1
- BEDROOMS_filter:
- 1
- Baths Full:
- 2
- FULL BATHROOMS_filter:
- 2
- Ridge Height:
- 26'
- Overall Exterior Depth:
- 46
- Overall Exterior Width:
- 40
- Main Floor Ceiling Height:
- 9'
- Available Foundations:
- Concrete Slab
- Default Foundation:
- Concrete Slab
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Shingles/Brick
- Lot Slope:
- Level Lot
- Roof Framing:
- Truss
- Snow Roof Load:
- 25.00
- Roof Pitch:
- 6/12
- Primary Style:
- Bungalow
- Secondary Styles:
- Craftsman
- Collections:
- Accessory Structures
- Collections:
- House Plans with Photos
- Master Suite Features:
- Shower Only
- Master Suite Features:
- Walk In Closet
- Interior Features:
- Fireplace/Wood Stove
- Interior Features:
- Great Room
- Kitchen Features:
- Breakfast Nook/Dining Area
- Kitchen Features:
- Eating Bar or Peninsula
- Utility Room Features:
- Close to Kitchen or Garage
- Utility Room Features:
- Second Floor Utility Room
- Garage Orientation:
- Front Entry
- Garage Bays Min:
- 5
- Garage Bays Max:
- 5
- GARAGE BAYS_filter:
- 5+
- Garage Features:
- Carport/Port Cochere
- Garage Features:
- Oversized
- Garage Features:
- w/Living Space
- Exterior & Porch Features:
- Balcony
- Exterior & Porch Features:
- Deck
- Garage Overall Depth:
- 46'
- Garage Overall Width:
- 40'
- Garage Ridge Height:
- 26'
- Styles:
- Bungalow House Plans
- Styles:
- Craftsman House Plans
- Collections:
- Plans Now
- Collections:
- 2 Story House Plans
- Collections:
- Garage, Garage w/Living, Carports
- Collections:
- Small House Plans
- Product Rank:
- 2010
- Note Plan Packages: Master Builder CAD Set:
- Unlimited Builds!
- Creation Date:
- 07/2008
- Plan SKU:
- 20-052
