Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
New to plan buying?
The functional and stylish Burrard is a garage plan with living space on the second floor. The traditional style garage plan has a modern feel that would make an attractive addition to any property. This plan would make a great starter unit; one to live in while the primary house is being built and could easily transform into a guest house or recreational/hobby area. It would also work well as a transition home for an older child or a mother-in-law suite.

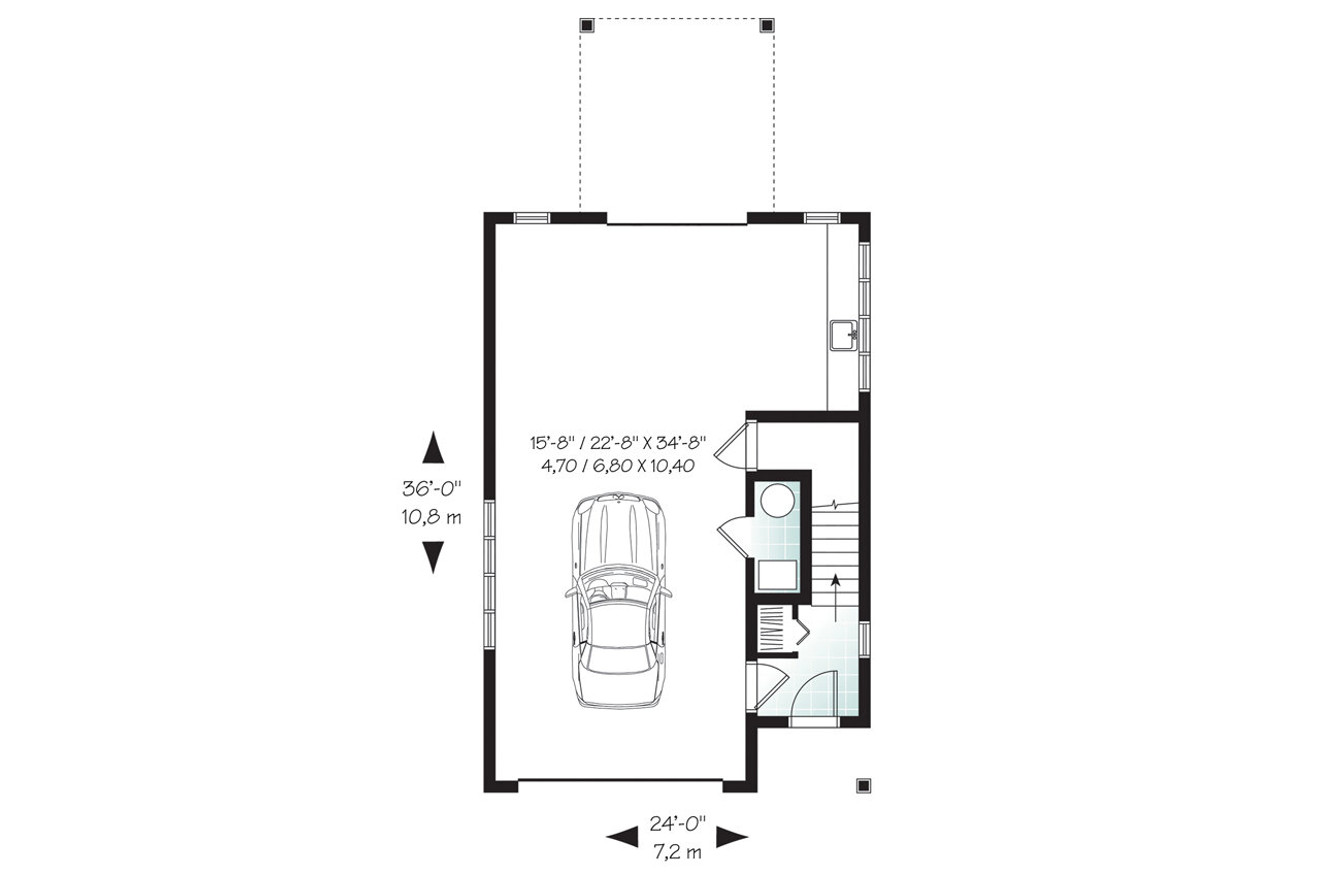

The main level has a garage door entry at the front and rear of the garage. It is a deep enough space that one could store two cars bumper to bumper or have the back of the garage as a workshop and recreational toy storage. In the nook at the back of the garage is a workbench with a utility sink installed. There is also an additional storage closet.

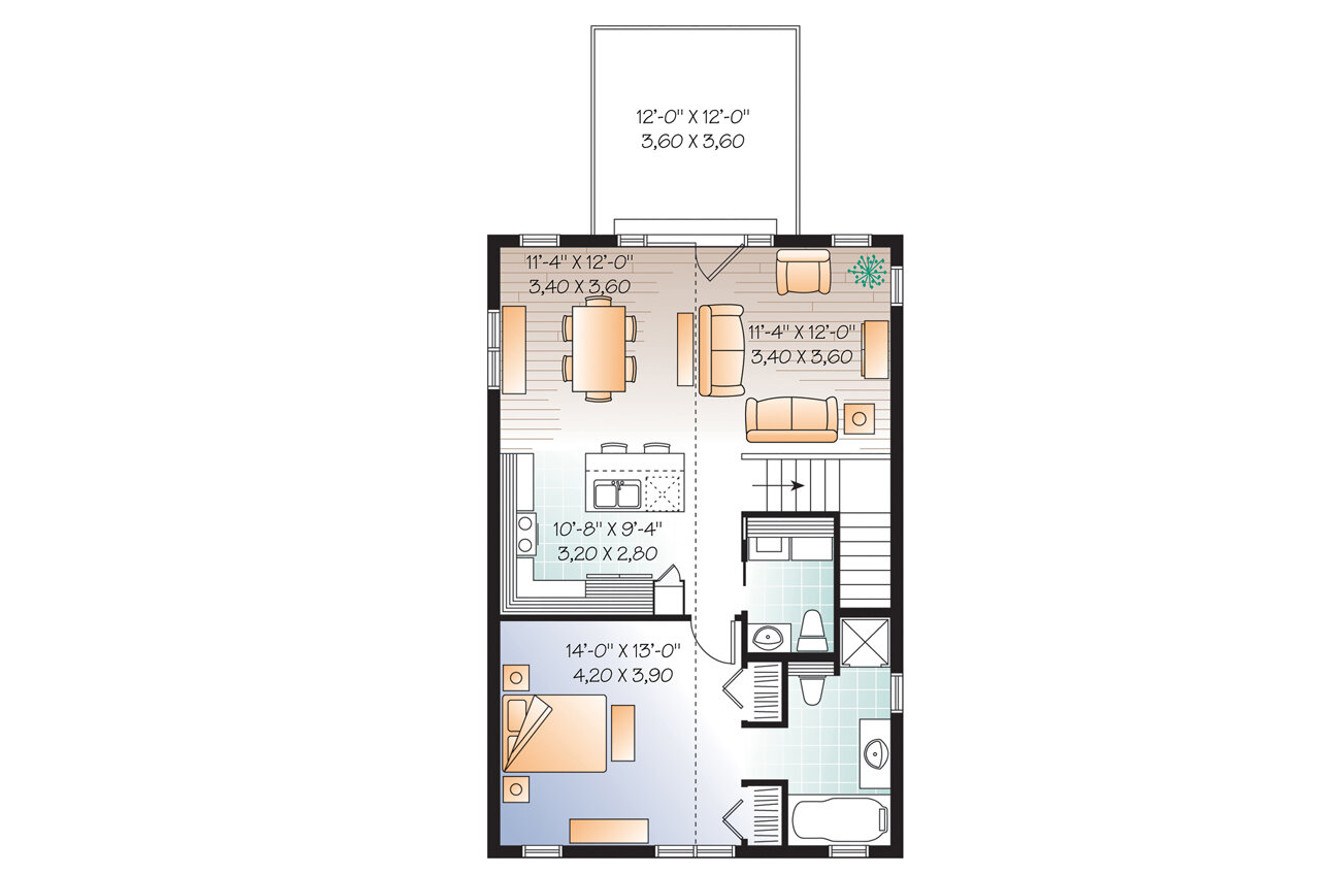

The living space can be accessed through the garage or the front door under the covered porch. The entry at the bottom of the stairs includes a coat closet for convenience. The stairs lead up to an open, casual living space. There's plenty of room for a dining table and a living room set. At the back of the house is an exit onto a lovely deck to enjoy the outdoors. The kitchen is fully appointed with a full-size oven, range, refrigerator, and dishwasher. The kitchen sink and dishwasher are located in an island with a raised eating bar, great for casual breakfasts or conversing with the cook. There is a half bath located off the kitchen for guest use. This also includes washer and dryer hookups.
At the front of the living space is the master bedroom. The space includes dual closets and a master bath. The private master bath has a spa tub and a separate shower.
