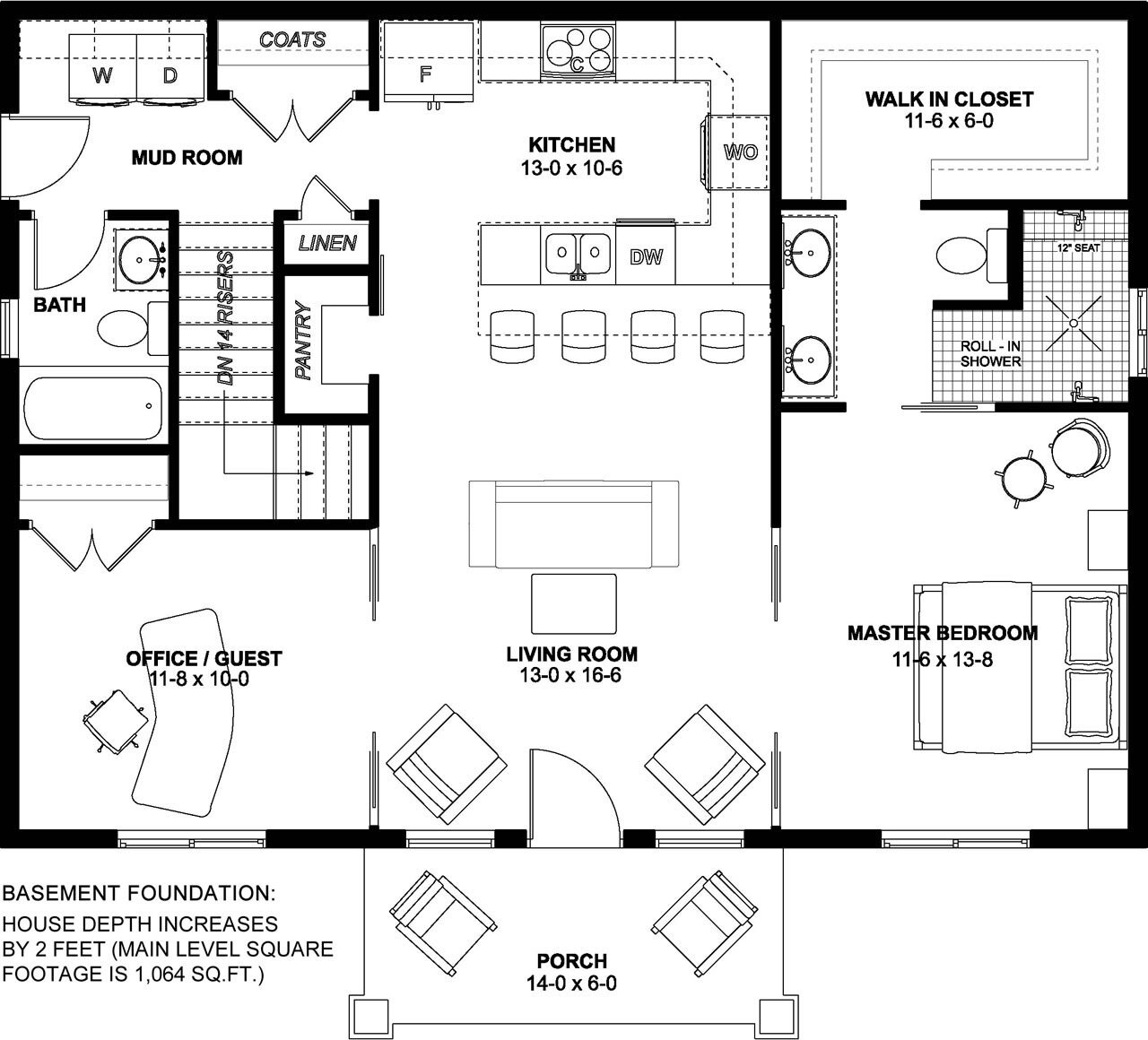

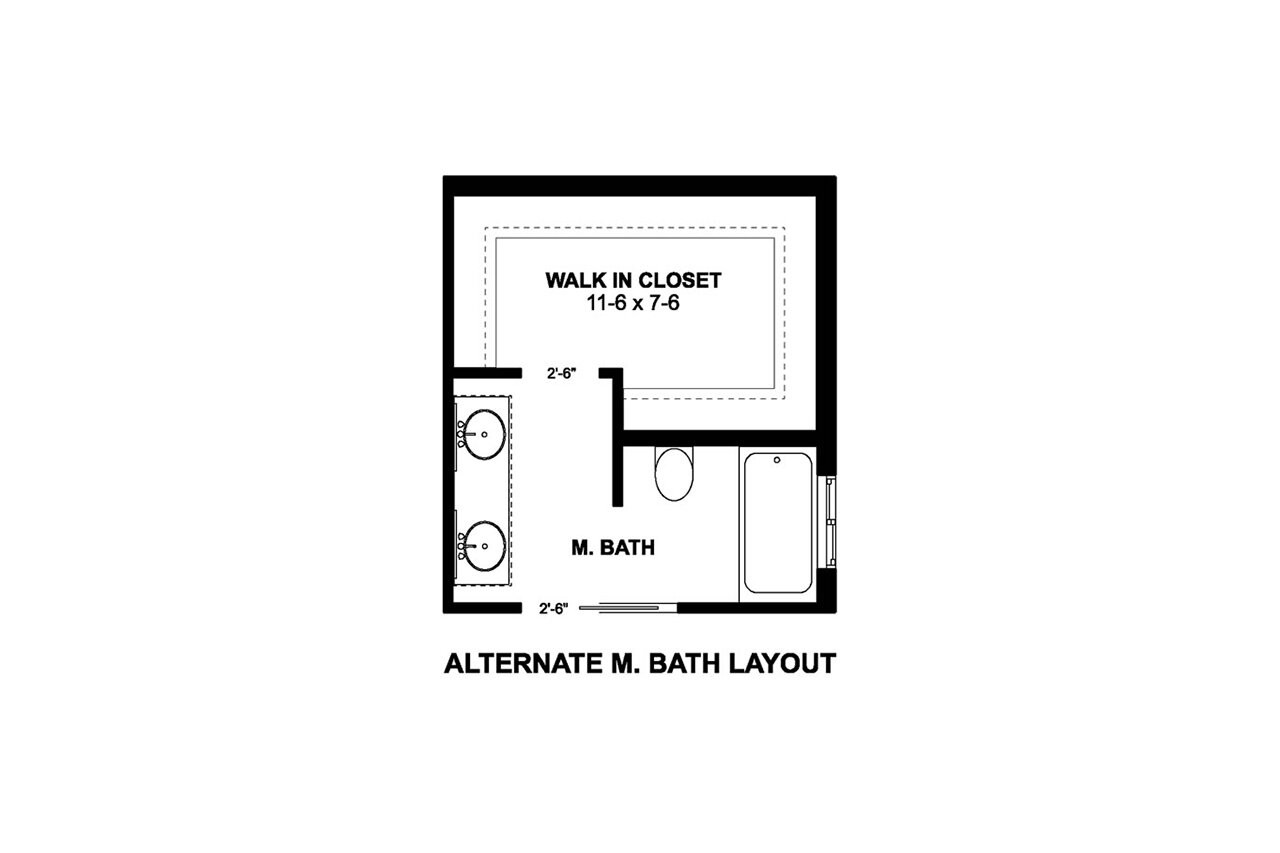

This compact plan features a fully equipped kitchen with a walk-in pantry and eating bar that comfortably seats up to four. The spacious floor plan accommodates full sized furniture and appliances. 9' ceilings and pocket doors throughout the home create a spacious and open feeling. The pocket doors leading into the master suite and guest room can either be closed for privacy or can provide a large 5' wide opening. The modern walk-in shower in the master suite provides both easy access and eliminates the maintenance required by glass doors. Measuring over 6' from end to end, the shower accommodates dual shower heads. The master suite also includes a dual vanity and a large walk-in closet. The alternate bath layout is included on the floorplans. This design also features a covered front porch, mudroom/laundry room and a full bath for guests. Basement versions are 2 feet deeper with a total of 1064 square feet on the main level.
Plan 56240
Photographs may show modifications made to plans. Copyright owned by designer.
- At a glance
-
988
Square Feet
-
2
Bedrooms
-
2
Full Baths
-
1
Floors
- More about the plan
- Pricing
- Basic Details
- Building Details
- Interior Details
- Garage Details
- See All Details
Contact HPC Experts
Have questions? Help from our plan experts
is just a click away.
To help us answer your questions promptly, please copy and paste the following information in the fields below.
Let’s be social
Connect with us for the latest from HPC
Plan details
Basic Details
Building Details
Interior Details
Garage
What's Included in a Plan Set?
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
• Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
• Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
• Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing
fixtures, beams, ceiling heights, etc.
• Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and
details.
• Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is
a basement, a basement plan is included which shows all basement details.
• Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
• Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
• Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation,
and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed
throughout the prints.
• Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
New to Plan Buying?
56240
Wesplan Building Design
$1,195.00
- SKU:
- 265 - 580988
- Plan Number:
- 56240
- Date Added:
- 01/26/2026
- Date Modified:
- 01/27/2026
- Designer:
- amm@westhomeplanners.com
- Designer Plan Title:
- 580988
- Plan SKU:
- 580988
- Max Price:
- 1695.00
- Min Price:
- 1195.00
- Pricing Set Title:
- B [500-999 Sq Ft] - Prefix 58
- Structure Type:
- Single Family
- Collections:
- Accessible Design
- Collections:
- Builder House Plans
- Master Suite Features:
- Combination Tub/Shower
- Master Suite Features:
- Main Floor Master Suite
- Master Suite Features:
- Separate From Other Bedrooms
- Master Suite Features:
- Walk In Closet
- Master Suite Features:
- Walk-In Shower
- Master Suite Features:
- Shower Only
- Interior Features:
- Accessible Plan
- Interior Features:
- Casual or Open Style Living Room
- Interior Features:
- Walk-Out/Daylight Basement
- Square Footage: Total Living:
- 988
- Square Footage: 1st Floor:
- 988
- Square Footage: Porch:
- 84
- Floors:
- 1
- FLOORS_filter:
- 1
- Bedrooms:
- 2
- BEDROOMS_filter:
- 2
- Baths Full:
- 2
- FULL BATHROOMS_filter:
- 2
- Ridge Height:
- 19'5"
- Overall Exterior Depth:
- 32
- Overall Exterior Width:
- 38
- Main Floor Ceiling Height:
- 9'
- Available Foundations:
- Basement
- Available Foundations:
- Concrete Slab
- Available Foundations:
- Crawl Space
- Available Foundations:
- Daylight/Walk-out Basement
- Default Foundation:
- Concrete Slab
- Available Walls:
- 2x4 Wood Frame
- Available Walls:
- 2x6 Wood Frame
- Default Wall:
- 2x6 Wood Frame
- Ext Wall Material:
- Siding
- Lot Type:
- Front View
- Lot Type:
- Narrow Lot (
- Lot Slope:
- Level Lot
- Roof Framing:
- Truss
- Snow Roof Load:
- 55.00
- Roof Pitch:
- 8/12
- Primary Style:
- Farmhouse
- Secondary Styles:
- Craftsman
- Secondary Styles:
- Cottage
- Kitchen Features:
- Eating Bar or Peninsula
- Kitchen Features:
- Walk-In or Wall Pantry
- Utility Room Features:
- Close to Kitchen or Garage
- Utility Room Features:
- Mudroom or Mudhall
- Exterior & Porch Features:
- Covered Porch
- Collections:
- 1 Story House Plans
- Styles:
- Craftsman House Plans
- Styles:
- Cottage House Plans
- Collections:
- Narrow Lot House Plans
- Collections:
- Small House Plans
- Styles:
- Farmhouse Plans
- Regions:
- Canadian House Plans/British Columbia Home Plans
- Product Rank:
- 56
Living-Room/Kitchen vaulted ceiling option available.
