  • At a glance
  • Square Footage: Total Living 983 Square Feet
  • Bedrooms 2 Bedrooms
  • Baths Full 1 Full Baths
  • Floors 1 Floors

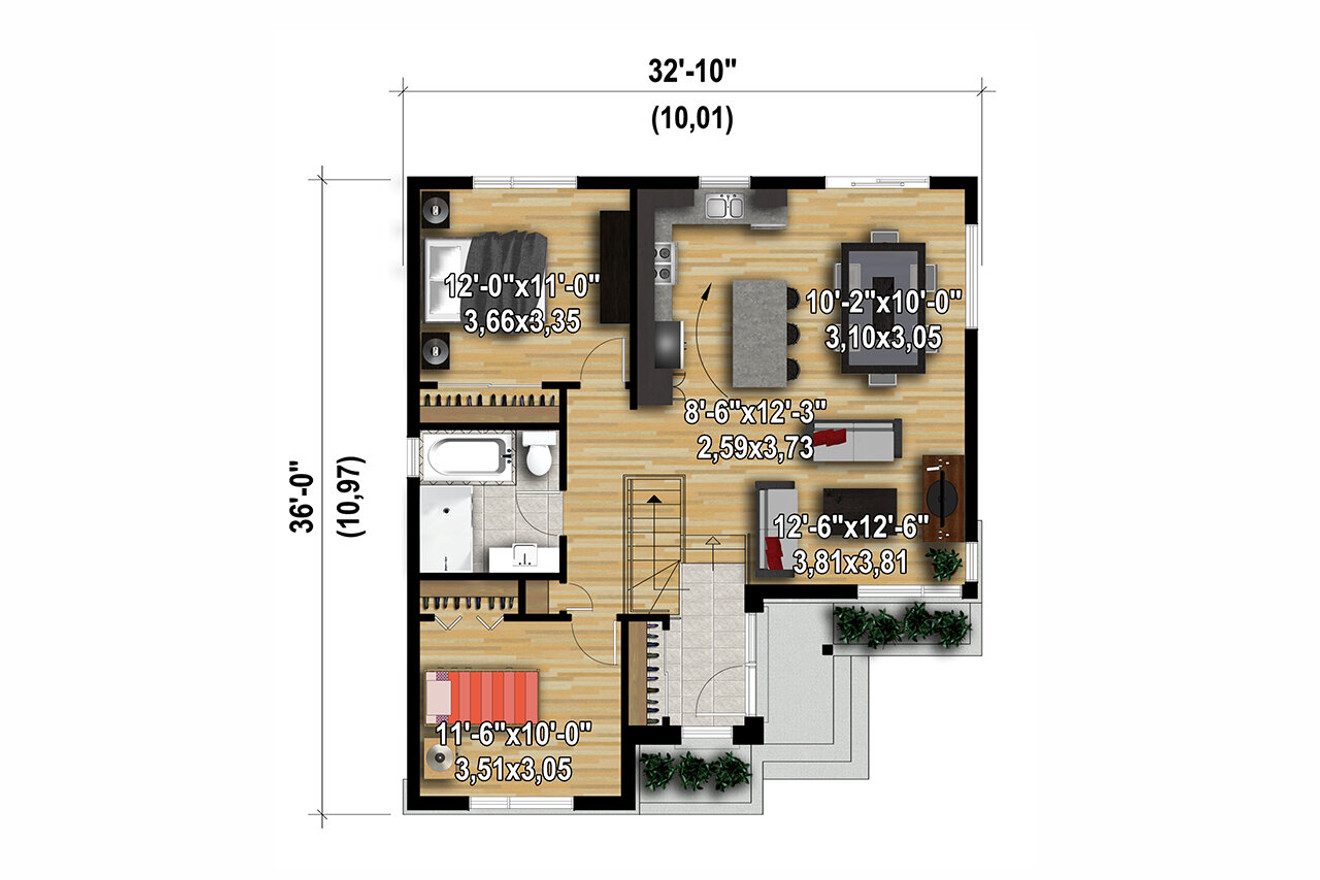

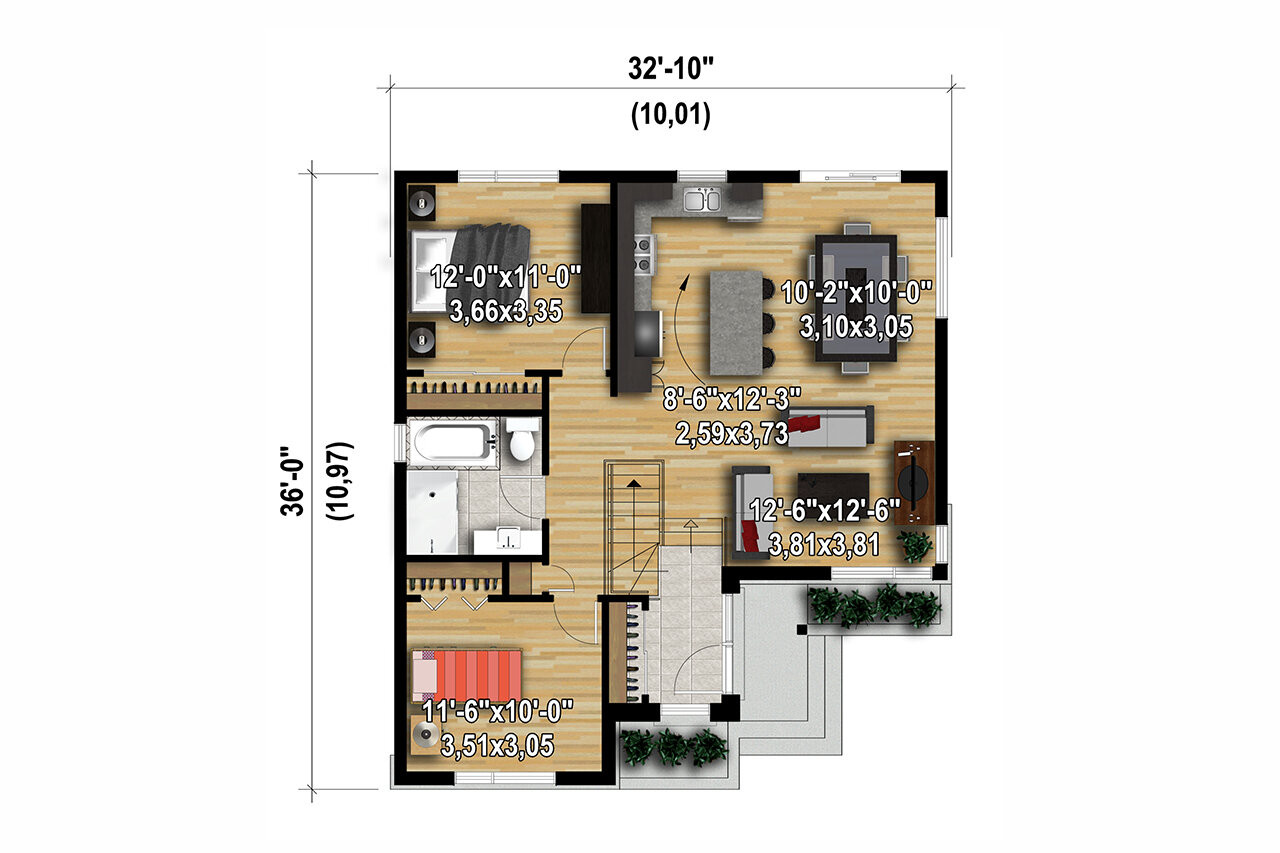

Floor plan

Modern House Plan - 70813 - 1st Floor Plan Icon_ionic-ios-expand

Contact HPC Experts

Have questions? Help from our plan experts
is just a click away.

To help us answer your questions promptly, please copy and paste the following information in the fields below.

Plan Number: 70813
Your submission has been received!
item-icon

Free modification quote

Call Us 866-688-6970 or fill out our form.

Get Started
item-icon

Cost to build report

How Much Will This Plan Cost To Build?

Find Out
GetQuote

Free modification quote

Are you looking for additional plan options?

Get a Quote

Have questions? Prefer to order by phone? Give us a call: 1-866-688-6970

Adding to Cart The item has been added

Plan details

Basic Details

Building Details

Interior Details

Garage

What's Included in a Plan Set?

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, posts, ceiling heights, etc.

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan: Shows the location of all concrete footings, floor beams, posts, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.

Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams and posts. Framing plans are integrated in each floor plan.

Roof Plan: Shows roof outlines.

Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Engineered trusses, beams, roof framing details, etc. Specific construction and insulation details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

New to Plan Buying?

What You Need to Know About Purchasing Plans



You are about to embark on an exciting process, enjoy it!



Here is what you need to know about purchasing house plans from HPC:

 • Each designer and architect plans are created with their own unique style and content. Please be sure to read the "What's included in a Plan Set" tab, and if you don't see what you are looking for, be sure to give us a call.
 • The designs are not engineered. Check with the building department where the structure is being constructed to find out if an engineer's review is required. We can help facilitate engineering for your plan if you are unable to find a local professional who can assist you.
 • Your building department may also require a site plan of your lot be included with your submittal for a building permit. A local design

professional in your area should be able to help you with this as well as evaluating your chosen plan to make sure it meets the local building requirements for weather and seismic conditions.
 • Please read and understand your licensing agreement. This will clearly define what you can and can not do with your construction documents.
 • Electronic formats of packages sales (PDF & CAD Files) are final. Printed construction documents may be exchanged with an exchange fee within 30 days of purchase.
 • Unless purchasing an additional build license (one time additional or multi-build additional) you may build the structure one time. Ownership of the construction documents can not be transferred or sold.
 • Unless purchasing a printable package, you may not make additional copies of the plan without the permission of the designer.

Plan Packages Explained



Ready to purchase plans and unsure which construction package to choose? We hope the following can help you decide. Please note: Plan packages vary and may not be available on all plans.



1 Set Study Package


This is a single set of prints will allow you to completely review the plan, get accurate quotes for construction costs, and contemplate custom design changes you may wish to make. Study sets are marked Not For Construction and without the license necessary to legally build the home. Don't worry though, we allow a 100% upgrade credit towards a buildable licensed construction package within one year of your 1 Set Study Package purchase.



5 and 8 Set Print Packages


These are licensed print packages of the construction documents printed and shipped to you.



PDF Print Package


This PDF package is a non-modifiable, print only PDF file that saves time, gas, money, and paper! Many contractors and building jurisdictions are working with digital formats of the construction documents. The PDF print package allows for you or your contractor to distribute the construction documents to sub-contractors, use electronic submittals to apply for the building permit, and print the sets you need when you need them.



Plans Now

Don't wait - get your plans NOW! This digital plan package is a downloadable Print PDF Package (non-modifiable, print only). Includes a single build license - electronically signed and emailed to you immediately after placing your order - with permissions to make copies of the plan locally as needed.



PDF Master


An unlocked modifiable PDF file. Same conveniences as the PDF print package with the added benefit which allows your local professional to make engineering mark-ups or design changes using compatible software.



CAD Electronic Files


By using CAD compatible software that use .dwg or .dxf file formats enables you or a local professional to modify the construction documents and integrate those changes throughout the entire plan. Once the modifications or engineering is incorporated into your design, you can reproduce as many copies of the plan needed to build the structure.





Still unsure which package to choose? You may want to discuss this with your builder or give us a call.

How to Evaluate a Plan



When looking at plans, most often it's the exterior profile that will first grab your attention. You love the exterior, it's exactly what you envisioned, but what about the inside of the design? It's important to spend some time and digest the design's interior elements. Here are a few considerations to think about when evaluating if this is the right plan for you.



  First off, think about how you live in your home.
 • Do you or your family prefer to have one or two places to gather all together, or do you prefer to have more private places within your home.
 • Consider how you move through the home in your day to day life. Visually walk through the front door, what do you walk through or by? Do the same from your back door and garage entrances.
 • Is your family life more formal or casual and do the living spaces of the design complement your lifestyle?
 • Will your existing furniture fit within the spaces?
 • If you have a family, do you want the master suite close to the secondary bedrooms or separated?
  Do you entertain? Are there elements within the floor plan that allow for entertaining with ease?
  How do you take care of laundry? Would you prefer the laundry room to be close by the kitchen, garage, or close to the bedrooms?
  Storage space? Is there enough?
 • Consider your access to the outside? Do you want to extend your indoor living to the outside? Is there adequate porches or patios for how you want to enjoy your yard? Where will you place your grill or patio furniture?
 • The view? What are you going to see when you look out your windows? Need more privacy or need more accessibility to a view?
 • Make sure your garage will accommodate your cars, RV, or boat. Adequate storage? Do you want or need a door to the exterior beyond the opening garage doors? Utility sink? Space for an additional refrigerator or freezer?
  Consider things about your current home/residence that you don't like. By pin pointing these areas of your current home that you don't care for, you can make sure they are addressed in the next.


After reviewing giving it careful consideration you may find that the plan would be perfect with a few design changes. HPC can certainly help you with that with our customization services.

The Customization Process



So you've found that almost perfect design, and find yourself saying, "if only". Whether it's changing the size of a room, adding space or features, or moving things around, we can help you take that almost perfect design and make it perfect for you.



It's exciting to create a plan to fit your exact needs and wants whether it's your home, garage or even a potential investment property.



When you locate your plan, select the "Get Started" button located on the plan detail page. Here you will be able to share with us the changes to the interior and/or the exterior of the design. You can even upload a sketch if you have one. Complete the necessary contact information and select "Submit Request".



HPC will then forward your request to a designer to evaluate your changes and provide a quote within two business days. HPC is a "true quote" plan website. That means HPC will not mark-up the modification quote, we want to help keep costs down for you!

70813

Plan Image

$760.00
(No reviews yet) Write a Review
SKU:
149 - 11345
Plan Number:
70813
Date Added:
11/11/2024
Date Modified:
11/11/2024
Designer:
commandes@planimage.com, Philippe.auclair@planimage.com
Designer Plan Title:
11345
Plan SKU:
11345
Note Plan Packages: 5 Set Package Kit:
Bundled Savings
Note Plan Packages: PDF File:
Best Value!
Max Price:
1780.00
Min Price:
760.00
Pricing Set Title:
(A) 901 - 1100
Structure Type:
Single Family
Square Footage: Total Living:
983
Square Footage: 1st Floor:
983
Floors:
1
FLOORS_filter:
1
Bedrooms:
2
BEDROOMS_filter:
2
Baths Full:
1
FULL BATHROOMS_filter:
1
Ridge Height:
20'11"
Overall Exterior Depth:
36
Overall Exterior Width:
32.10
Main Floor Ceiling Height:
9'
Available Foundations:
Basement
Default Foundation:
Basement
Available Walls:
2x6 Wood Frame
Default Wall:
2x6 Wood Frame
Ext Wall Material:
Siding, Brick, Stone
Lot Type:
Narrow Lot (
Lot Slope:
Level Lot
Roof Pitch:
6/12
Primary Style:
Modern
Secondary Styles:
Contemporary
Secondary Styles:
Prairie
Collections:
Accessory Structures
Collections:
Tiny House Plans
Interior Features:
Casual or Open Style Living Room
Interior Features:
Great Room
Kitchen Features:
Breakfast Nook/Dining Area
Kitchen Features:
Eating Bar or Peninsula
Kitchen Features:
Kitchen Island
Kitchen Features:
Walk-In or Wall Pantry
Exterior & Porch Features:
Covered Porch
Collections:
1 Story House Plans
Styles:
Modern House Plans
Styles:
Contemporary House Plans
Styles:
Prairie House Plans
Collections:
Narrow Lot House Plans
Collections:
Small House Plans
Product Rank:
374
Regions:
Canadian House Plans/Quebec Home Plans

This modern style house plan offers efficient, stylish living within 983 sq ft, perfect for those seeking a streamlined yet elegant home. The exterior harmonizes materials of siding, stone, and brick to create a bold yet inviting look, with large modern windows providing a striking contrast. From the outside, a set of steps leads up to a charming covered entry, promising a warm welcome.

As you step through the front door, you’re greeted by a small yet practical foyer area, a space that sets the tone for the home’s thoughtful design. Directly ahead is a closet, ready to keep outdoor gear tucked away. Next to the closet, stairs lead down to a basement area, allowing for versatile storage or future finishing as a hobby or recreational space. A couple of steps to the right lead up to the heart of the home—the main living area—where an open-concept layout defines this modern design.

At the front of the house is the living room, a cozy but open space bathed in natural light from the large windows that showcase views of the surroundings. The living room’s openness makes it ideal for intimate gatherings or quiet relaxation, and its connection to the rest of the living area ensures a seamless flow. This layout, where rooms flow naturally into one another, creates a sense of spaciousness and accessibility that belies the home’s modest footprint.

Moving further back, the living area transitions seamlessly into the dining and kitchen spaces, both designed with practicality and socializing in mind. The kitchen, though compact, is carefully laid out, with a central island that doubles as a snack bar, making it easy to prep meals while still engaging with family or guests. The island provides added counter space and can serve as a casual spot for quick breakfasts or coffee breaks. On the edge of the kitchen, a small but efficient wall pantry keeps essentials close at hand, adding to the home’s practical storage solutions.

Adjacent to the kitchen, the dining area offers a cozy setting for meals, whether it's a casual brunch or a more formal dinner. Sliding glass doors lead from the dining area to the backyard, making this an ideal setup for indoor-outdoor living. Step outside, and you’ll find yourself on a perfect spot for a future deck—an inviting area for summer barbecues, evening relaxation, or enjoying a morning coffee in the fresh air. This layout is perfectly suited to those who enjoy a connection to the outdoors while also appreciating the convenience of bringing entertaining spaces together.

A hallway off the main living area leads to the more private quarters of the home. The first stop is the larger bedroom, which overlooks the backyard through a large rear-facing window. This room is slightly more spacious, making it ideal as a primary bedroom, offering a peaceful and private retreat at the end of the day. There’s ample space for a comfortable bed and additional furniture without feeling cramped, and the natural light flooding in adds to the calming ambiance.

Continuing down the hall, you’ll find the hall bathroom, designed with a separate tub and shower to provide flexibility and functionality. The bathroom's thoughtful layout maximizes space, and its separation of tub and shower means there's room to unwind with a soak or refresh with a quick rinse—whatever the day calls for. This bathroom is easily accessible from both bedrooms and the main living area, making it convenient for residents and guests alike.

Finally, the hall ends with a second bedroom at the front of the house, complete with a front-facing window that brightens the space. This room is slightly smaller than the primary bedroom but has a versatility all its own. It’s perfect as a guest room, nursery, or even a home office, thanks to its position away from the main living areas. The option to use this room as an office adds a layer of flexibility to the floor plan, appealing to those who work from home or need a quiet space for projects or hobbies.

This modern 2-bedroom floor plan is a masterclass in functional, stylish design, making the most of each square foot while allowing for future customization. Whether you envision this single-story home as a peaceful retreat, a smart starter home, or an efficient base for a modern lifestyle, this house plan blends practicality with a warm, contemporary aesthetic. With its balance of open communal spaces and private rooms, this home design provides a harmonious living experience that truly feels like home.

Main Floor Ceiling Height: 9 + 10 ft
