* The Floor Plans are views of each floor, looking down from above. They show window and door locations, room dimensions, plumbing fixture locations, etc.
* Exterior Elevations are flat views of the outside of the house, looking at the front, left, rear and right.
* Building Sections show cutaway views of the home structure.
* The Foundation Plan shows the location of footings and concrete slabs.
* Floor & Roof Layouts show the outline of the floor truss systems, and slopes, valleys, ridges and hips on the roof.
* The Wall Section is a detailed view showing how the walls are assembled.
* The Electrical Plan shows the outlets, switches, lights and fans on the floor plan.
* Construction Notes and typical Details.
New to plan buying?

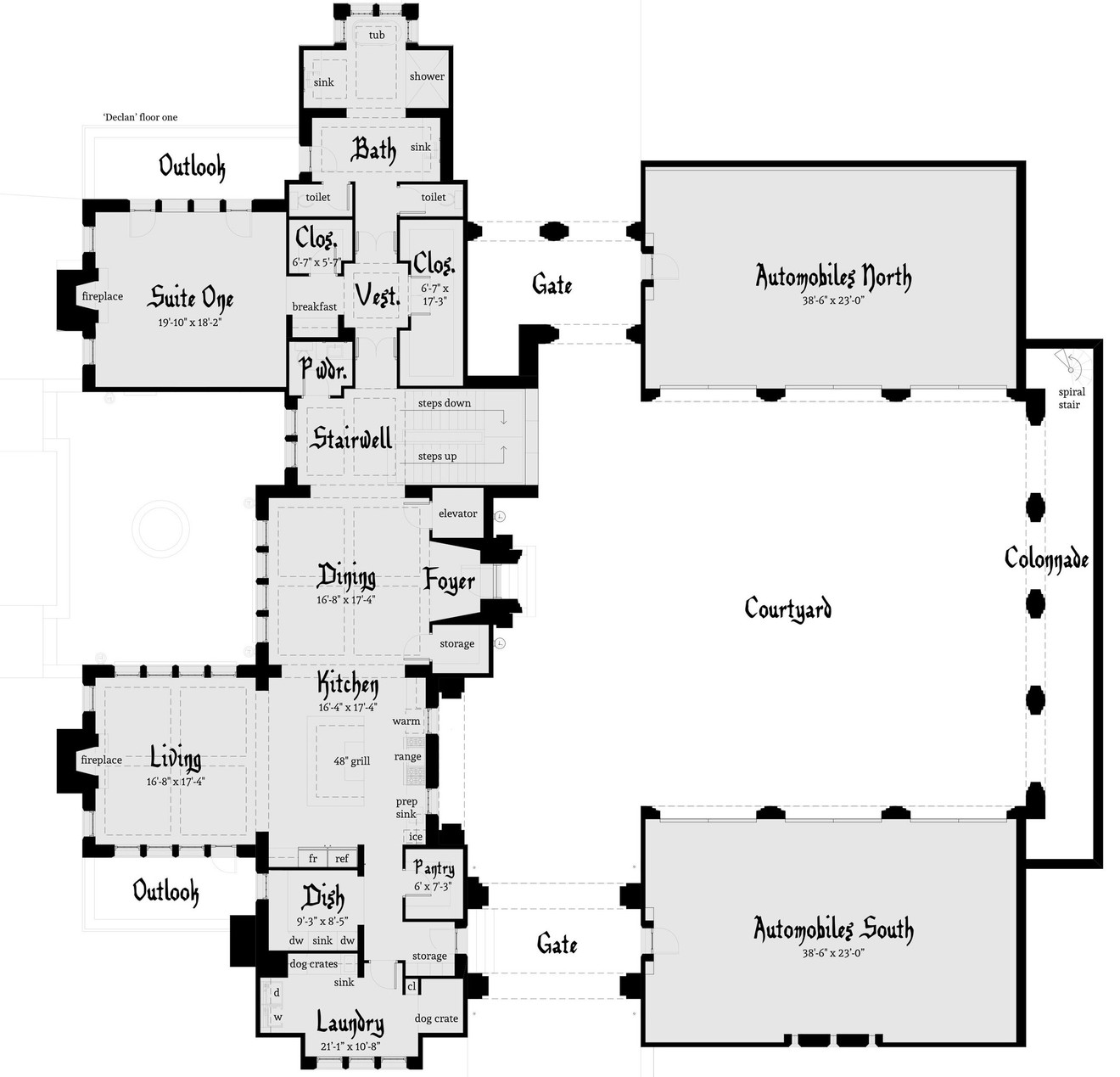

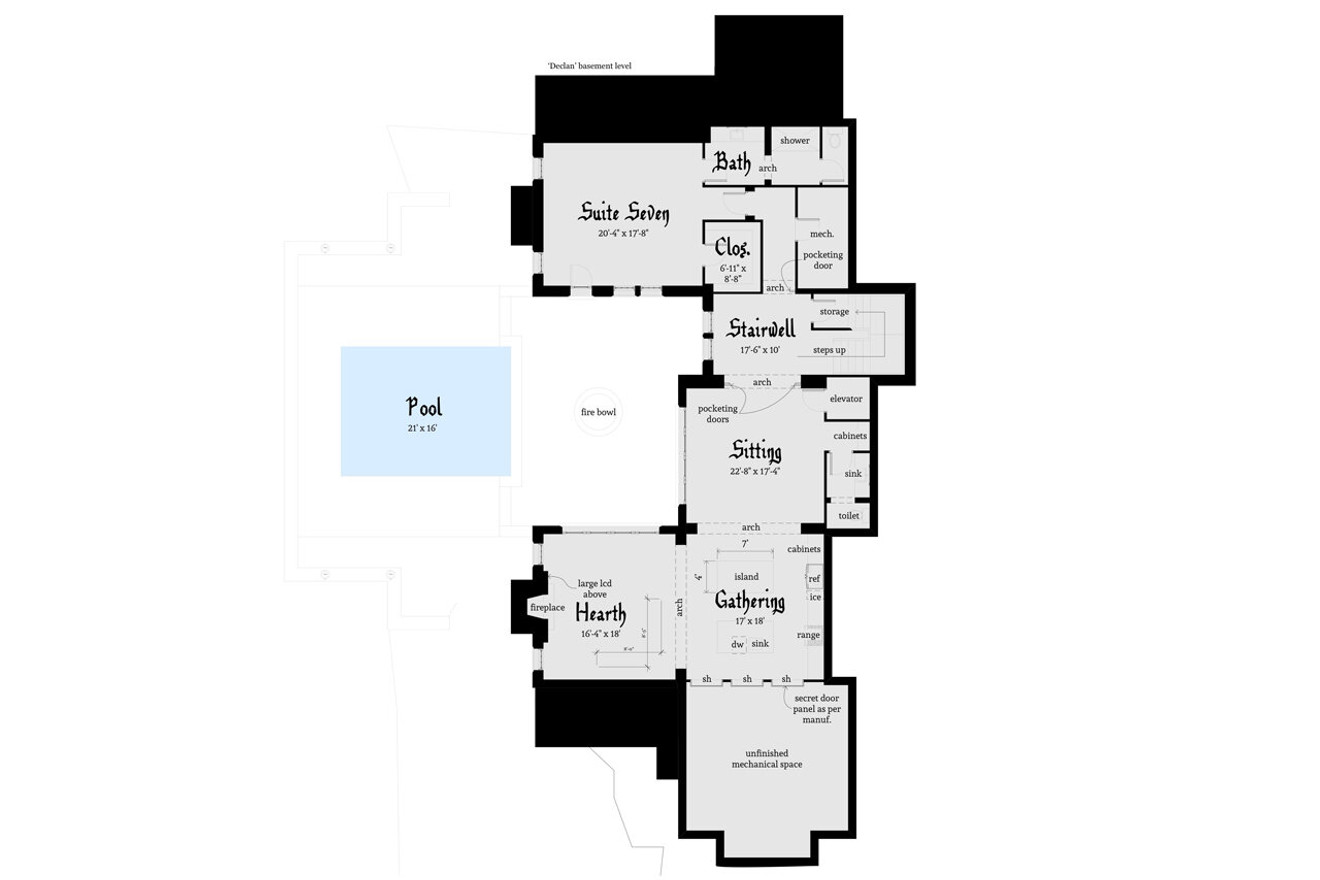

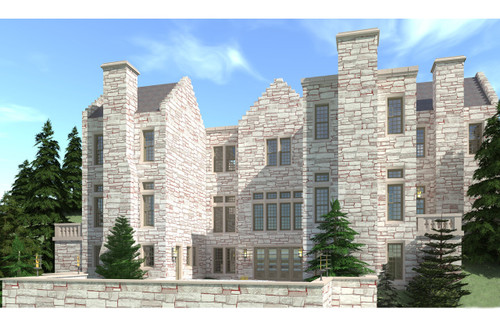

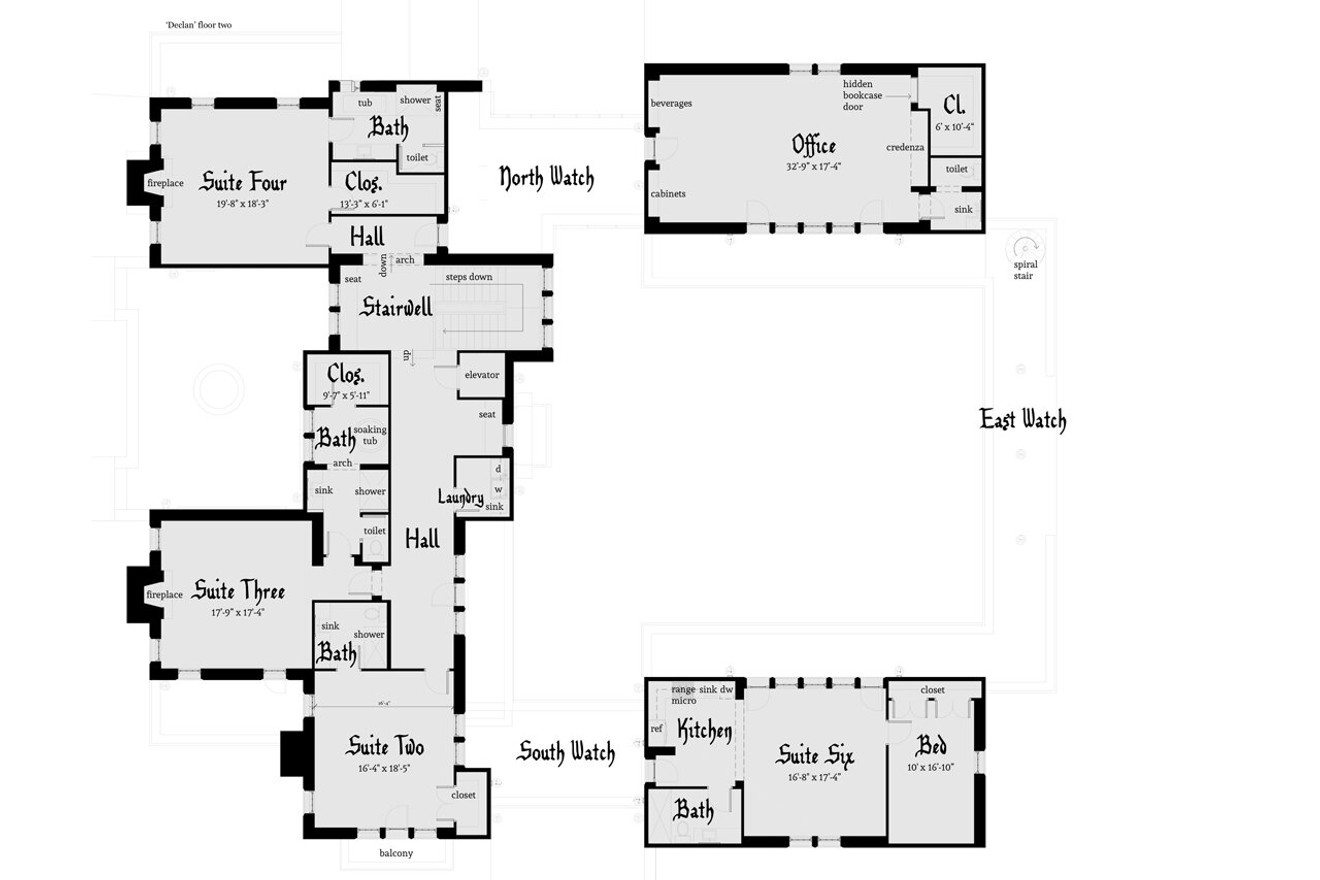

Majestic European-style plan, the Declan, is a 6 bedroom suite castle design with a walk out basement for a sloped building lot. This house plan features an interior courtyard surrounded by a Gothic arched colonnade. Outdoor you will find spiral stairs which lead to the upper walks and detached suites. Above the north garage is a private office suite with walkout to the north and east watch.
At a Glance
