Additional Ceiling Heights:
Dining Room: 12'
Master Bedroom: 13' Step
Den: 14' Coffered
Great Room: Barrel Vault
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.

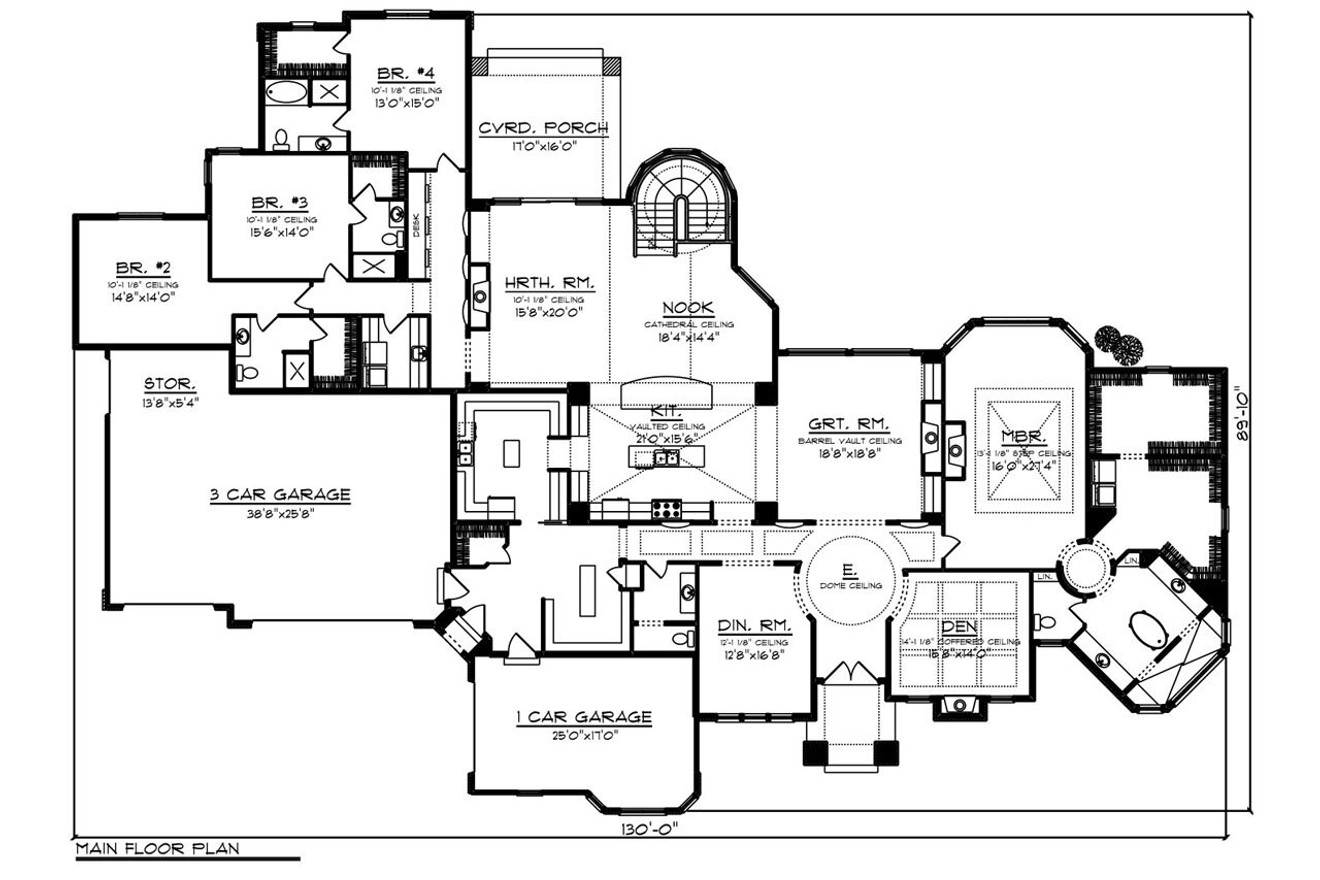

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.
Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
New to plan buying?
A luxury Tuscan-style ranch house design has unique spaces and details that makes this home extraordinary . Once inside the circular foyer encompases the den and formal dining room on either side. The barrel vaulted great room with a fireplace flanked by built-in cabinets is open to the kitchen and the adjacent nook and hearthroom. The luxurious master suite features a step ceiling, fireplace, and a circular entry leads you to equally luxurious bathroom and his-n-hers walk-in closets. Tucked behind the garage are three additional en-suite bedrooms each with walk-in closets, a computer nook, and utility room. The finished daylight basement features a recreation room, gym, exercise and play room, family room with a wet bar, theater, and a 5th bedroom with a private bathroom.
