Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Elevations: Shows the front, sides, and rear, including exterior materials, ceiling heights, roof pitches, 3d exterior views, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, different ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Layout: Shows roof outlines with pitches, valleys and ridges.
Details: Shows a typical wall cross-section. Shows support members, exterior and interior materials, insulation, and foundation. Specific details are shown and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets.
Cabinet Plan: Shows all cabinets in the plan at ½”=1’-0” as well as 3d views of their arrangement as needed.
New to plan buying?

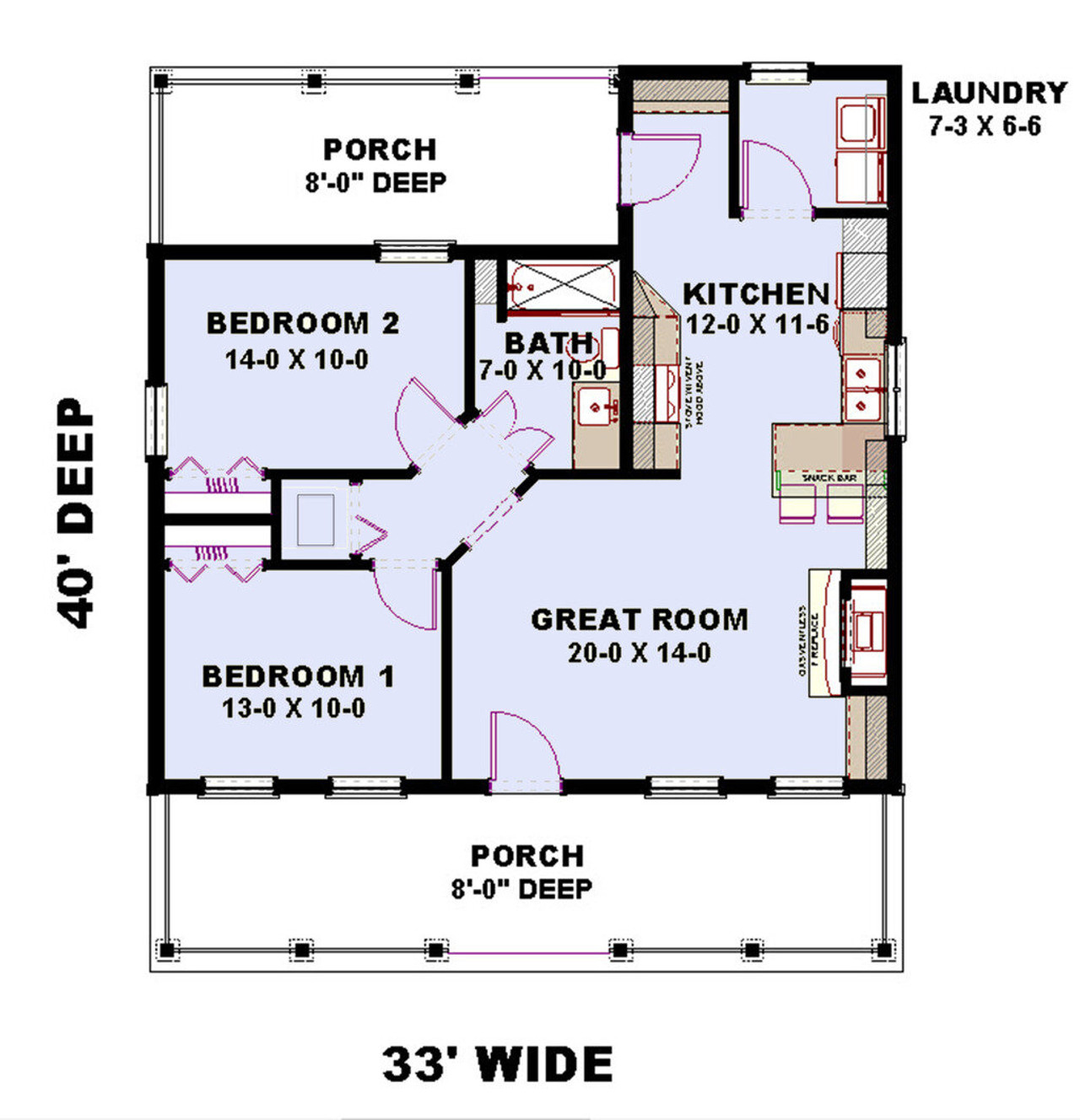

Open Kitchen/Dinging area and Great Room- perfect for entertaining.
The Kitchen has lots of storage and a snack bar for casual dining.
The Great Room has a ventless gas fireplace and cabinets for storage.
The Laundry Room is close to the Kitchen and rear entry area.
The Rear Entry area contains built-in storage and a glass door for access to the 8ft deep rear porch.
The Bedrooms are large and located for privacy.
The Bath is huge with plenty of storage and a tub/shower combo.
Two 8ft deep porches are perfect for entertaining or relaxing.
