Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Floor Framing Plan (if any): Shows location and spacing of floor joists and supporting walls or beams.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

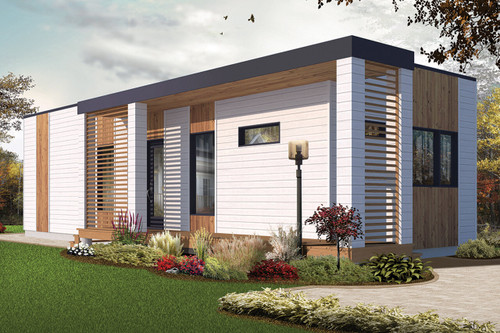

Clean lines and varying textures are sure to catch the eye of passersby of this modern house plan. For those creating an urban vacation home or a unique modern outdoor retreat, this cabin plan is worth a second look.
This unique house plan offers a covered porch for extend outdoor living. Interesting screens add additional privacy to the outdoor gathering space.
Stepping inside you enter into a hallway that traverses the small house plan. To the right are two bedrooms and a full bathroom. The washer and dryer are straight ahead, tucked away in a laundry closet but conveniently close to the bedrooms. A pocket door to the left separates the sleeping area from the great room.
Entering in the great room the living, dining room and kitchen are seamlessly integrated. The cozy kitchen features modern appliances along with a peninsular eating bar that adds additional seating to this small house plan. A wonderful addition is the sliding door that opens up the side wall of the great room to the covered patio. This truly allows the outdoors to blend with the living area of the home.
Whether your idea of a vacation is in a city or out in the mountains, the Ariel is a modern spin on a cabin plan that is sure to keep you comfortable and provide a relaxing escape from hassle of day to day life. It’s narrow footprint helps to ensure that this home will fit on almost any lot.
