Additional Ceiling Heights:
Nook & Kitchen: 10'
Den, Foyer & Dining Room: 10' Step
Master Bedroom: 12' Step
Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
Front Rendering: A rendering of the front elevation along with general construction notes.
Elevations: Shows the front, sides, and rear, including wall and window heights, exterior materials, soffit heights, roof pitches, etc.

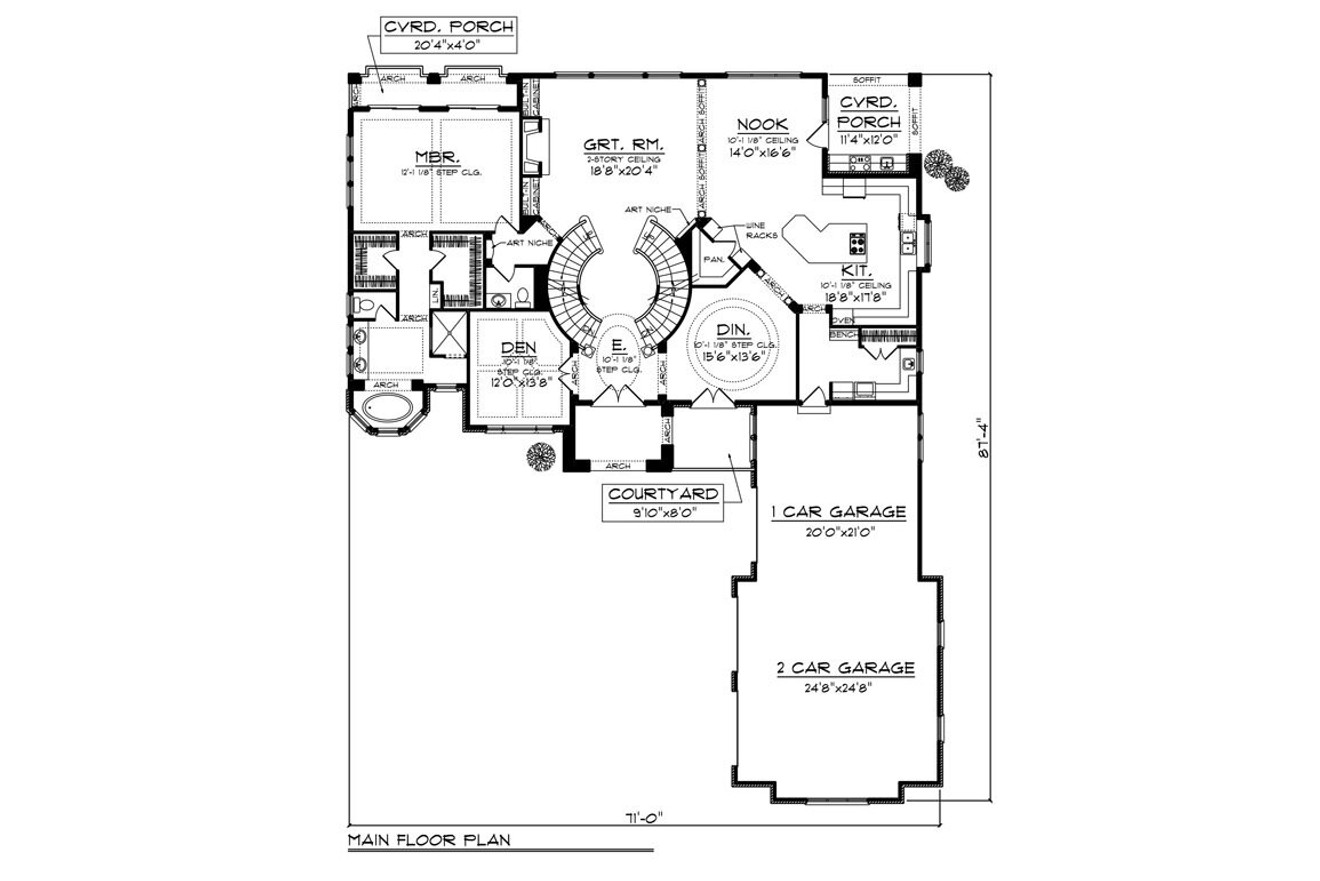

Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, roof, wall, and floor structure from above (if any), ceiling heights, etc.

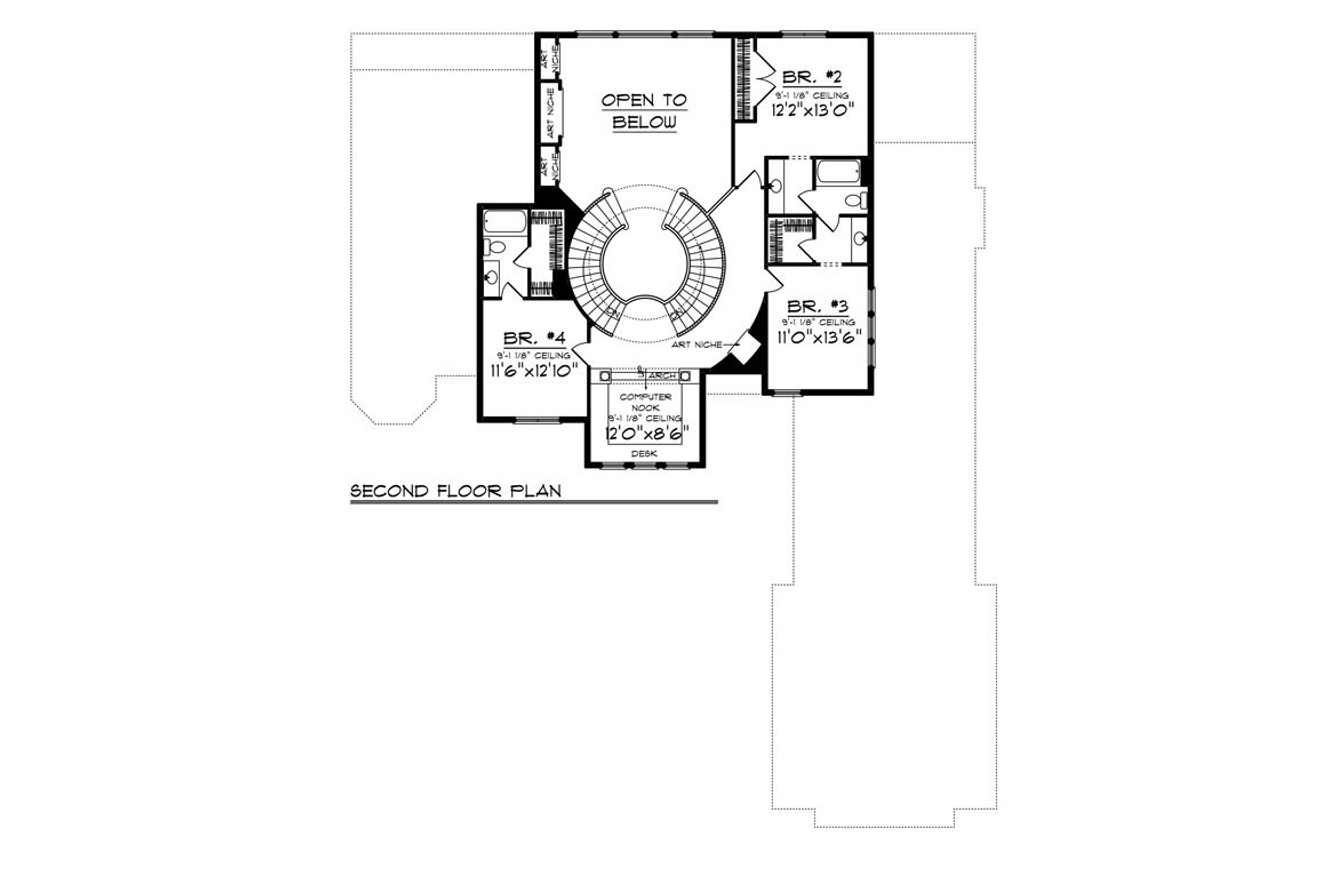

Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor roof structure as well.

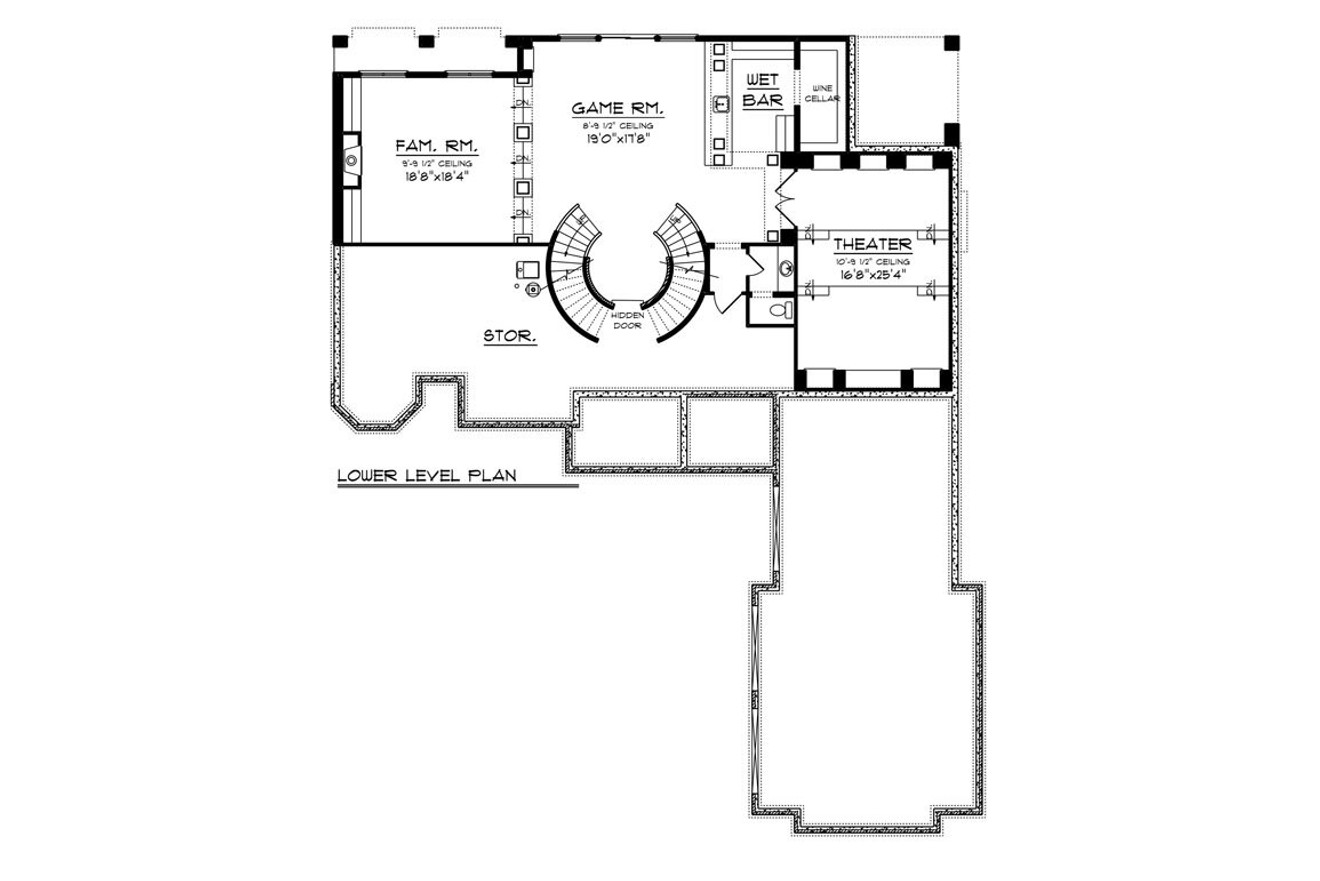

Foundation Plan: Shows the location of all concrete walls and footings, beams supporting the floor structure and structure above, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
Roof Plan: Shows roof outlines, lines of bearing walls below, roof framing details, etc.
Section & Details: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Stairway, kitchen elevations, and wall section details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Electrical Plan: A schematic layout of all lighting, switches and electrical outlets drawn at 1/8" = 1'. Electrical general notes are provided as well.
New to plan buying?
An amazing circular staircase winds down to great you when you enter this Tuscon home. Circular ceiling details in the entry and dining room are complimentary to the staircase. Perfect for entertaining, the great room has a two-story ceiling and a fireplace trimmed with built-in cabinets. The large kitcehn has an eat-in island and access to the formal dining room and laundry room. Located on the left of the home, the luxurious master suite features access to a private covered porch, two walk-in closets, and a Jacuzzi tub tucked into a bay window. The upstairs landing is open to the great room below and features a computer nook, two bedrooms that share a Jack-n-Jill bathroom, a third bathroom with a private bathroom and walk-in closet. The finished daylight basement is access by the circular stairs and contains a family room, theater, and a game room with a wet bar.
