General Notes and specifications, Such As:
a) Designs Loads
d) Structural Steel
g) Other Misc. specs.
Front, Rear and Side Elevations @1/4” scale
Foundation plan (1/4” scale) indicating beam and column sizes along with lower level framing
Reinforced foundation and footing details

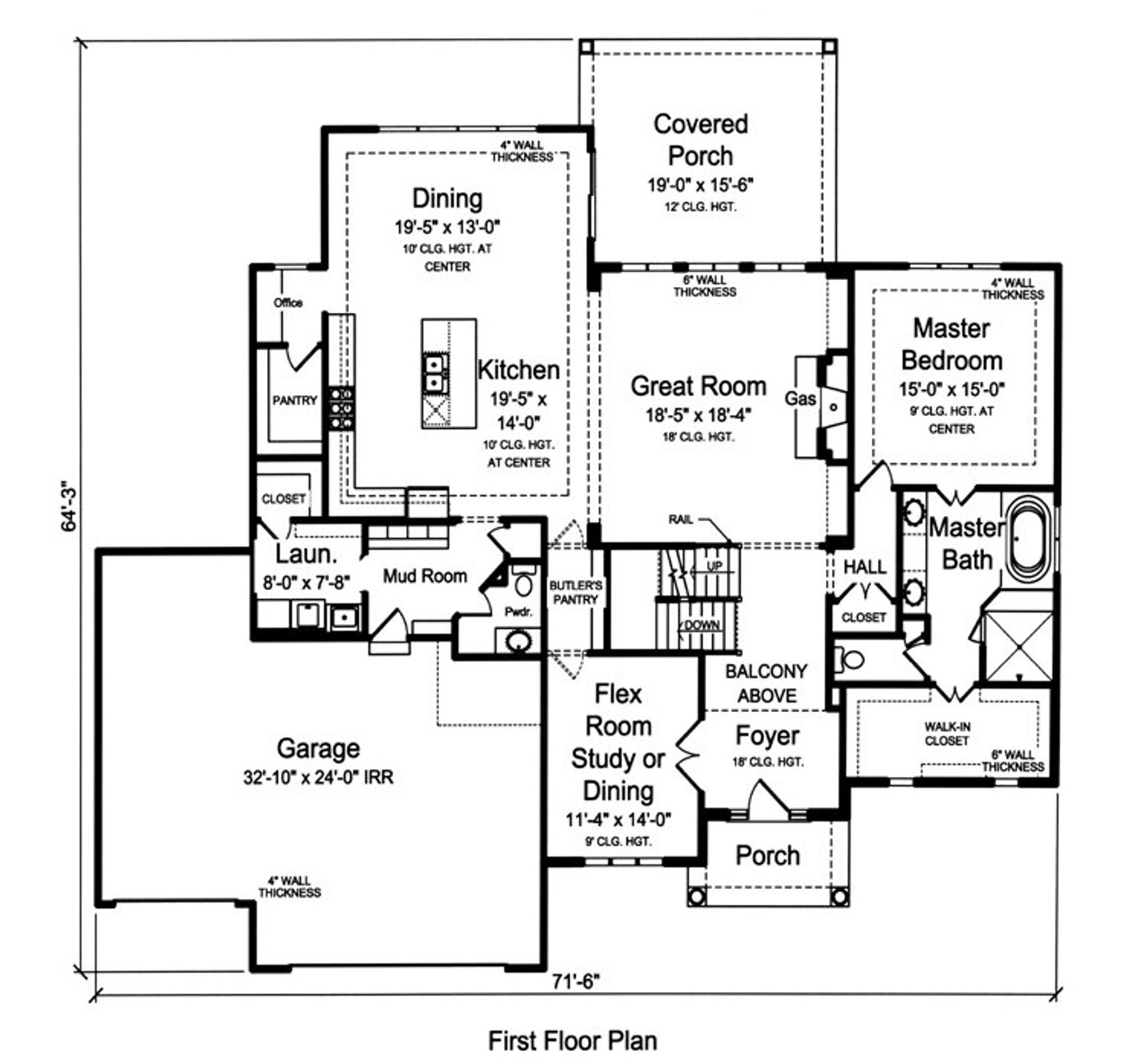

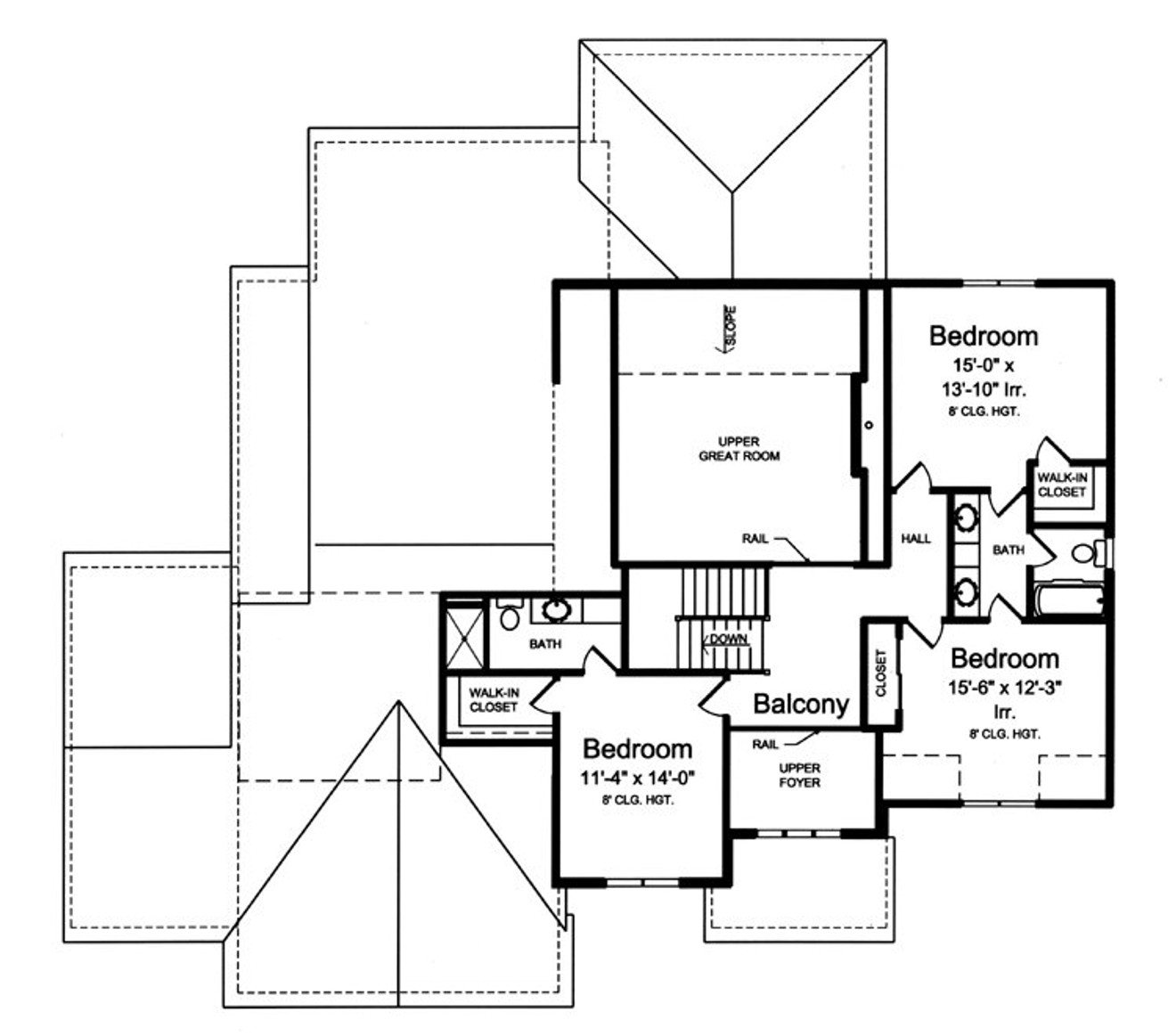

First & Second Floor plan (1/4” scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas.
Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods.
Roof plan (1/8”) indicating pitches and wall heights as well as truss profiles indicating hell heights and raised ceiling areas
Wall section indicating standard materials and detailing for typical wall construction.
a) Floor joists
b) Exterior wall framing
c) Wall heights
Roof framing is indicated as manufactured engineered roof trusses. Truss profiles are included.
New to plan buying?
Stone, Shakes and Siding combine to create a beautiful exterior to this luxury home with a three a car garage and spacious rooms. The main level introduces a large Great Room with Fireplace and 18' ceiling height, a series of windows showcase a beautiful covered rear porch accessed from the large sized Dining Area. A chef's Kitchen, featuring a 7'6" island with seating, tandems between the Great Room and Dining Area efficiently serving each space. To the front of the home is a Flex Room that can be tuilized for formal Dining or purposed as a Study or Parlor to complement your family's needs. The business area of the home consists of a large walk-in pantry, Laundry Room with walk-in closet, cubbies and bench seating and a drop zone for keys, mail and charging station. The Powder Room and a small closet also share this space.The first floor Master Bedroom is waiting for the homeowner with a luxurious tub, double bowl vanity, spacious walk-in shower and large walk-in closet. U shaped stairs lead to the upper level balcony with views to the Great Room and Foyer and three secondary bedrooms each with a private bath entry and large closets.
